79271 - Toro 36" Tiller for 260 Series Tractors (SN: 200000001 - 200999999) (2000) GAURD, SHIELD, GEAR CASE & TINES Parts Diagram

36" Tiller for 260 Series Tractors

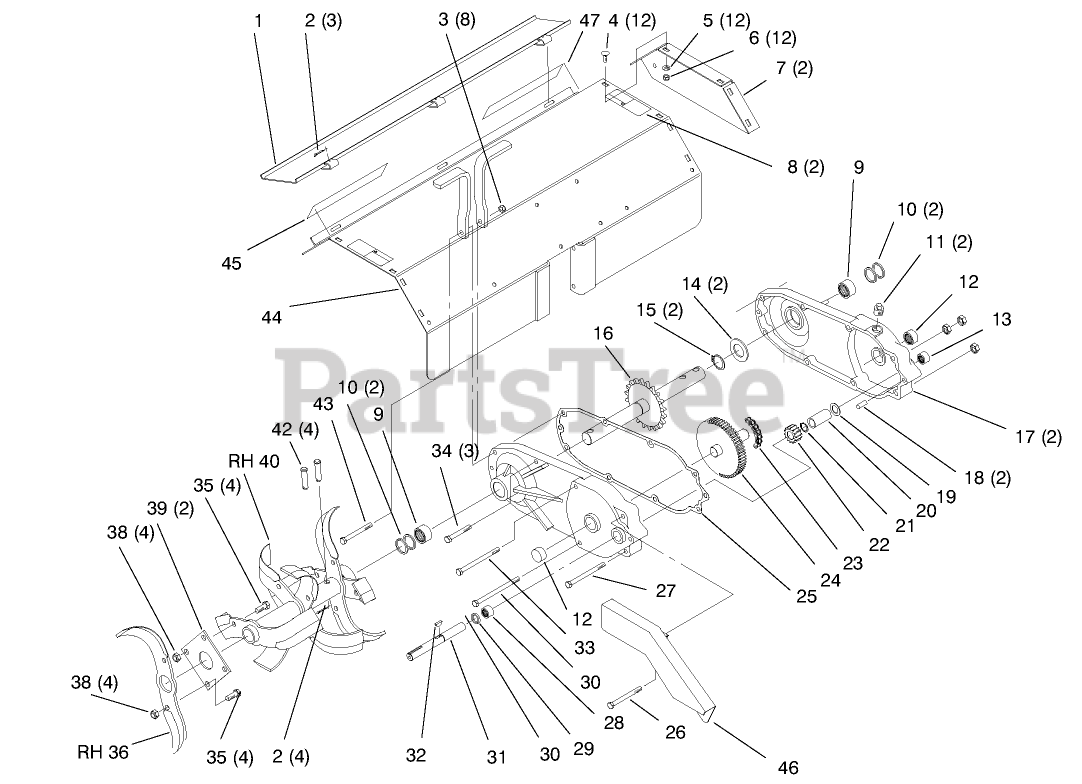

GAURD, SHIELD, GEAR CASE & TINES Parts Diagram

  • Title

1

Toro 93-1609-01

GUARD ASM

$

$

Not available

2

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 93-1605-01

COVER-TINE END

$

$

Not available

8

Toro 92-7112

DECAL-DANGER

$

$

Not available

9

Toro 6838

BEARING-NEEDLE

$63.99

$

In Stock, only 2 left!

0

10

Toro 103118

SEAL

$21.99

$

In Stock, Qty 6

0

11

Toro 281-3

PLUG-PIPE, SQH

$4.99

$

Usually ships in 3-6 days

0

12

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

13

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

14

Toro 106011

WASHER

$9.49

$

Usually ships in 3-6 days

0

15

Toro 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

16

Toro 106009

TINE SHAFT ASM

$

$

Not available

17

Toro 93-1600-01

GEAR CASE TILLER RED
(Superseded to 93-1600-03)

$947.99

$

Usually ships in 3-6 days

0

18

Toro 32121-41

PIN-ROLL

$7.99

$

Usually ships in 3-6 days

0

19

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 1 left!

0

20

Toro 83-3340

TUBE-SPACER

$

$

Not available

21

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

22

Toro 3528

GEAR-PINION

$

$

Not available

23

Toro 6848

CHAIN

$320.99

$

Usually ships in 3-6 days

0

24

Toro 106007

GEAR AND SHAFT ASM

$

$

Not available

25

Toro 83-3330

GASKET-TRANSMISSION

$

$

Not available

26

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

27

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

28

Toro 1540

BEARING-NEEDLE

$40.99

$

Usually ships in 3-6 days

0

29

Toro 100441

SEAL-OIL

$9.99

$

In Stock, only 1 left!

0

30

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

31

Toro 104387

SHAFT-INPUT

$315.99

$

Usually ships in 3-6 days

0

32

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

33

Toro 323-21

SCREW-HH
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

34

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

35

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

36

Toro 92-1653-03

TINE-RH

$

$

Not available

37

Toro 93-1604-03

TINE-LH

$

$

Not available

38

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

Toro 93-1601-03

PLATE-TINE MOUNTING

$

$

Not available

40

Toro 93-1602-03

RH TINE ASM

$

$

Not available

41

Toro 93-1603-03

LH TINE ASM

$

$

Not available

42

Toro 9208

PIN-CLEVIS

$

$

Not available

43

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

44

Toro 92-6514-01

Shield W/Safety Decal
(Superseded to 92-6514)

$

$

Not available

45

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$15.99

$

Usually ships in 3-6 days

0

46

Toro 93-9279

Guard-Tiller
(Superseded to 93-9279-01)

$

$

Not available

47

Toro 94-9158

DECAL-WORKHORSE
(Superseded to 106-5838)

$

$

Not available
