79271 - Toro 36" Tiller for 260 Series Tractors (SN: 069000001 - 069999999) (1996) REAR AXLE MOUNT HITCH Parts Diagram

36" Tiller for 260 Series Tractors

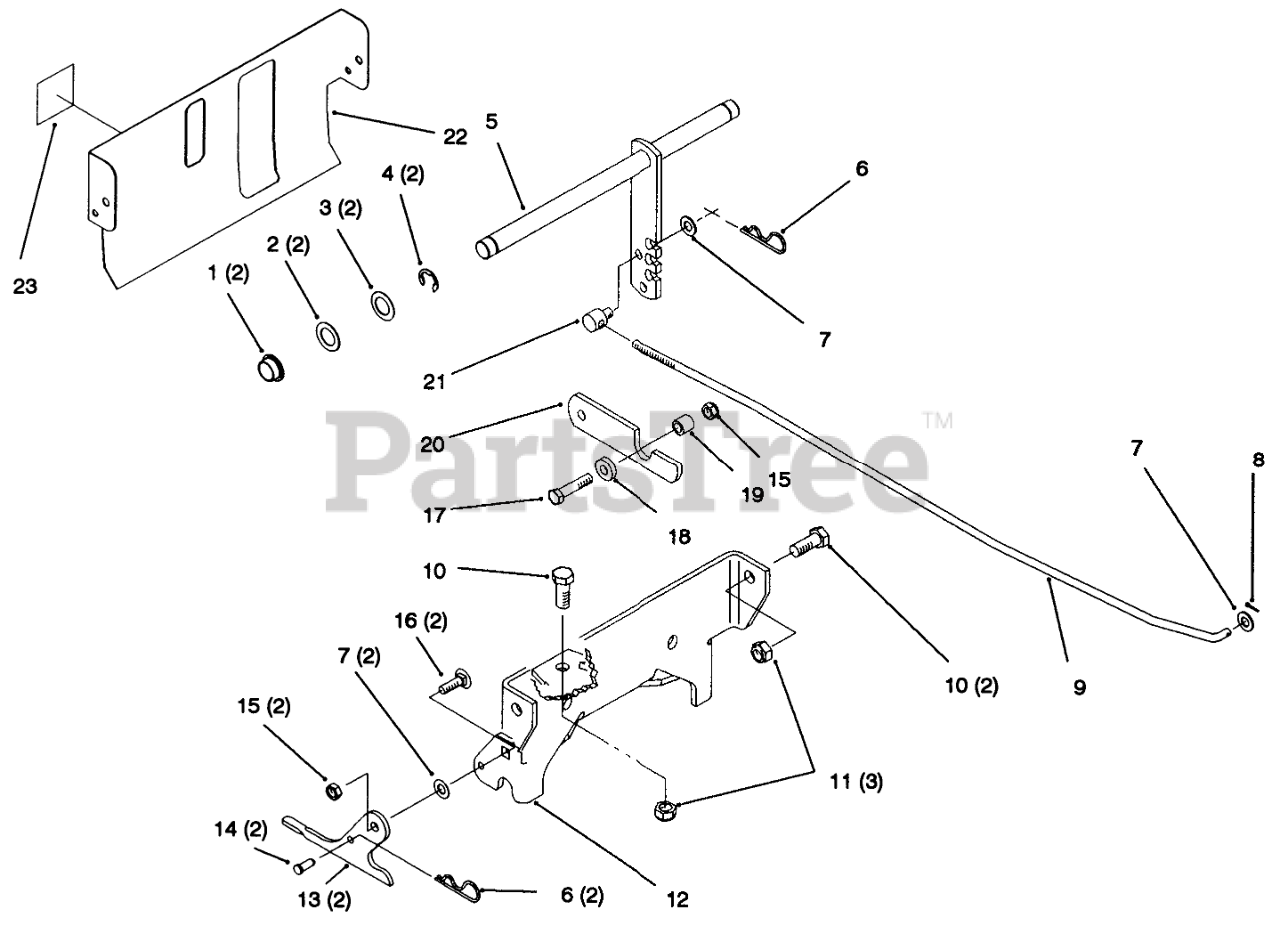

REAR AXLE MOUNT HITCH Parts Diagram

  • Title

1

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

2

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

3

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

4

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

5

Toro 92-7064-03

LEVER ASM

$

$

Not available

6

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

8

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

9

Toro 92-7069

ROD-LIFT

$100.99

$

Usually ships in 3-6 days

0

10

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 93-1389-03

BRACKET-MOUNTING

$

$

Not available

13

Toro 104657

PLATE-LATCHING

$42.99

$

Usually ships in 3-6 days

0

14

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

17

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

20

Toro 92-7023-03

CATCH-SPRING

$

$

Not available

21

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

22

Toro 92-6713

Cover-Rear
(Superseded to 92-6713-03)

$

$

Not available

23

Toro 92-6727

DECAL-LEVEL, FUEL

$

$

Not available
