79271 - Toro 36" Tiller for 260 Series Tractors (SN: 069000001 - 069999999) (1996) HITCH, DRIVE & IDLER PULLEYS Parts Diagram

36" Tiller for 260 Series Tractors

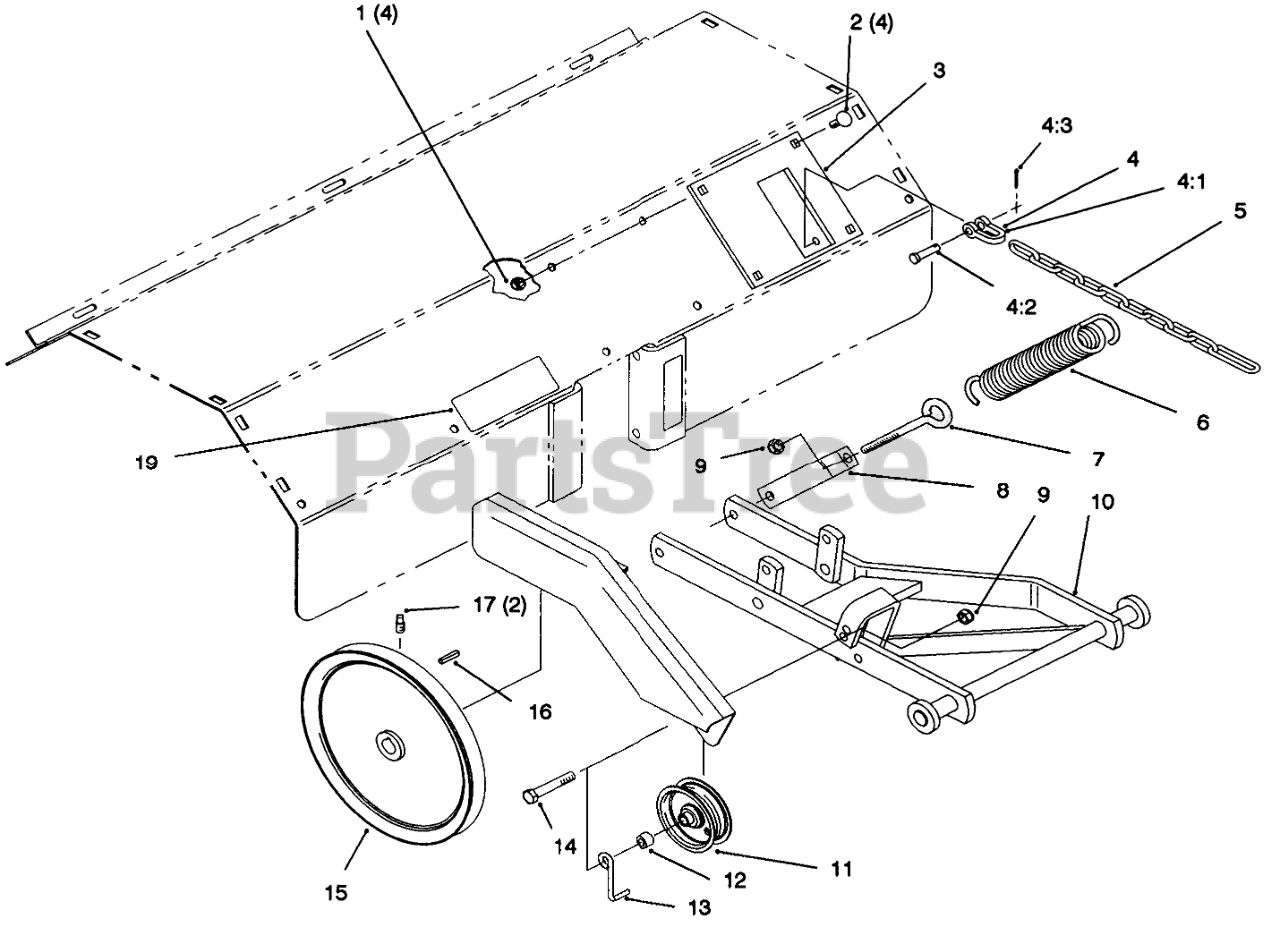

HITCH, DRIVE & IDLER PULLEYS Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 93-1608-01

HITCH ASM
(Superseded to 93-1608-03)

$

$

Not available

4

Toro 79-2280

Clevis Pins Assembly (Incl. Ref .4:1, 4:2, 4:3)

$20.99

$

Usually ships in 3-6 days

0

4:1

Clevis

$

$

Not available

4:2

Pin-Clevis

$

$

Not available

4:3

Pin-Cotter

$

$

Not available

5

Toro 92-7074

CHAIN-LIFT

$

$

Not available

6

Toro 4629

SPRING

$82.99

$

In Stock, only 2 left!

0

7

Toro 100653

EYEBOLT

$25.99

$

Usually ships in 3-6 days

0

8

Toro 93-1606-01

BRACKET - SPRING RED
(Superseded to 93-1606-03)

$49.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Toro 93-1607

Hitch

$

$

Currently unavailable

11

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

12

Toro 93-3658

Spacer

$9.99

$

Usually ships in 3-6 days

0

13

Toro 79-0400

GUIDE-BELT

$

$

Not available

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 93-0345

PULLEY

$186.99

$

Usually ships in 3-6 days

0

16

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

17

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

19

Toro 93-1628

DECAL-BELT ROUTING

$

$

Not available
