79263 - Toro 42" Snow Thrower for 260 Series Tractors (SN: 230000001 - 230999999) (2003) BLOWER ASSEMBLY Parts Diagram

42" Snow Thrower for 260 Series Tractors

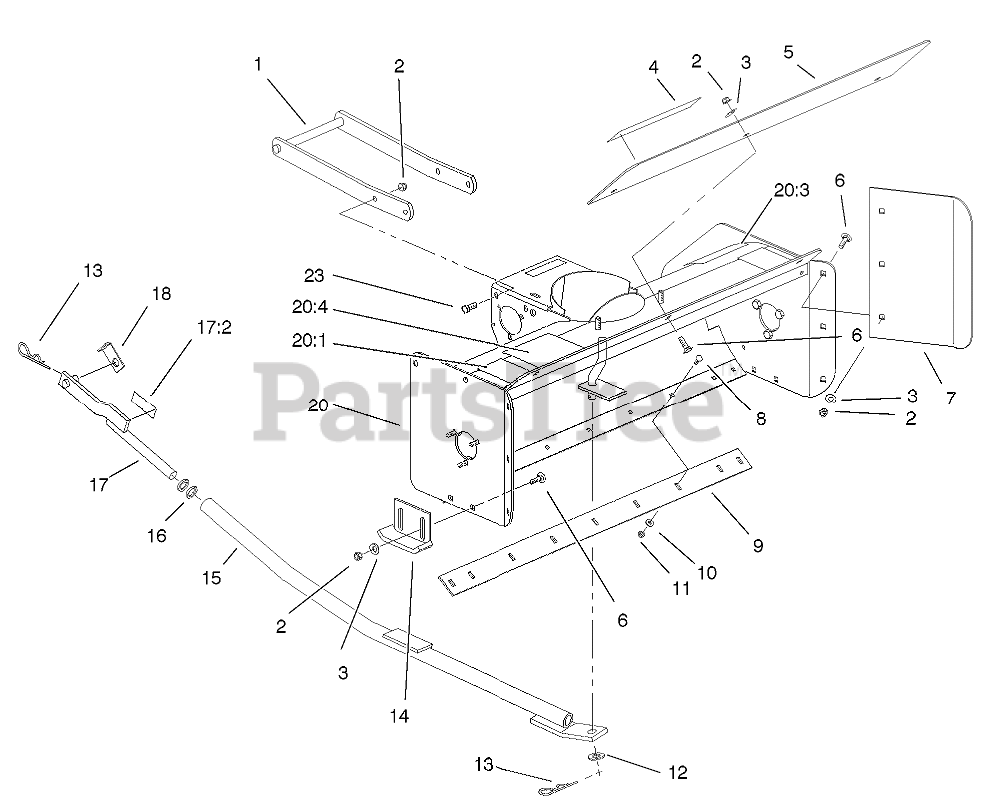

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 79-6800-01

FRAME

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$12.99

$

Usually ships in 3-6 days

0

5

Toro 93-1616-01

PLATE-EXTENSION

$

$

Not available

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

7

Toro 93-1617-01

PLATE-EXTENSION, RH

$77.99

$

Usually ships in 3-6 days

0

8

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

9

Toro 79-6170-01

SCRAPER-REVERSIBLE
(Superseded to 79-6170-03)

$85.99

$

Usually ships in 3-6 days

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

13

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

14

Toro 93-1620-01

SKID

$44.99

$

In Stock, only 3 left!

0

15

Toro 79-3251-03

LIFT ROD

$584.99

$

Usually ships in 3-6 days

0

16

Toro 9202324

Washer

$1.49

$

In Stock, only 3 left!

0

17

Toro 92-9778

LIFT ROD W/DECAL

$108.99

$

Usually ships in 3-6 days

0

17:2

Toro 85-7480

DECAL - WARNING

$

$

Not available

18

Toro 79-7090

RETAINER CLIP

$47.99

$

Usually ships in 3-6 days

0

20

Toro 92-9777

WRAPPER ASM W/DECAL

$

$

Not available

20:1

Toro 63-2380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

20:3

Toro 86-5100

DECAL - WARNING

$

$

Not available

20:4

Toro 92-8652

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

23

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
