79262 - Toro 42" Snow Thrower for 260 Series Tractors (SN: 059000001 - 059999999) (1995) MOUNTING HITCH AND IDLER SUPPORT Parts Diagram

42" Snow Thrower for 260 Series Tractors

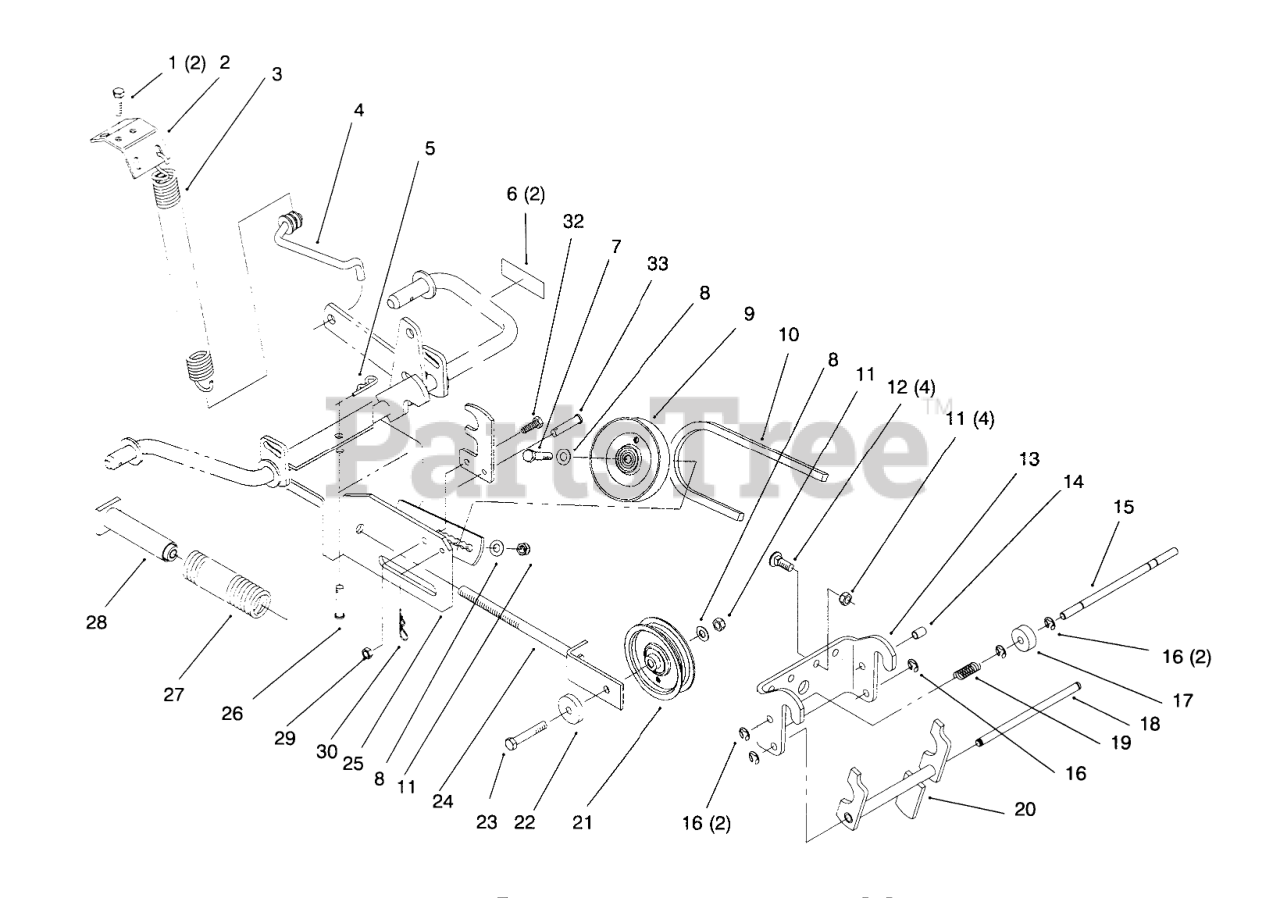

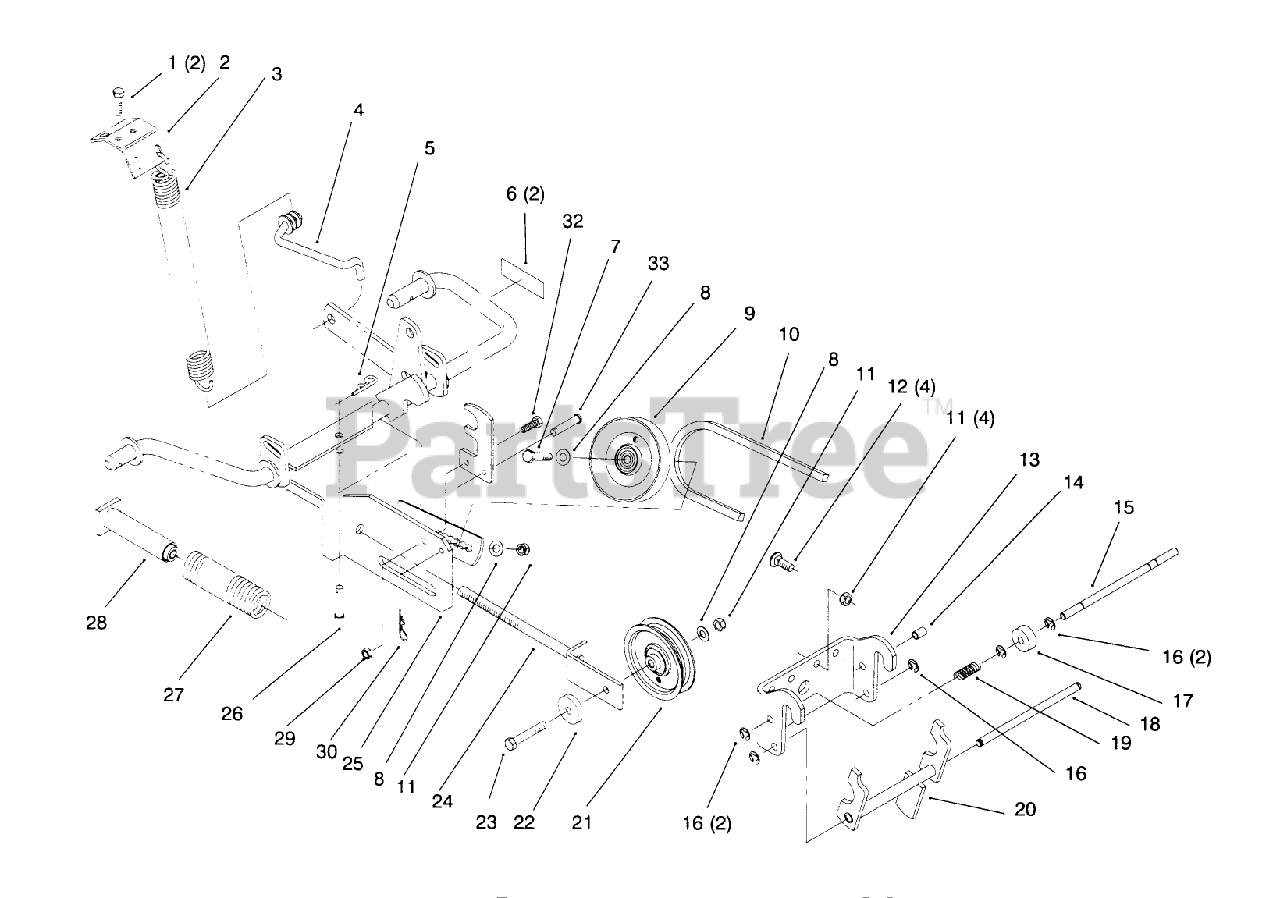

MOUNTING HITCH AND IDLER SUPPORT Parts Diagram

  • Title

1

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

2

Toro 93-1123-03

BRACKET

$65.99

$

Usually ships in 3-6 days

0

3

Toro 92-9821

SPRING-EXTENSION

$56.99

$

Usually ships in 3-6 days

0

4

Toro 93-3161

SPRING ROD

$102.99

$

Usually ships in 3-6 days

0

5

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

6

Toro 85-7490

DECAL-WARNING

$

$

Not available

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

9

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 1 left!

0

10

Toro 78-6240

Belt
(Superseded to 92-6991)

$116.99

$

Usually ships in 3-6 days

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 78-1720-01

HITCH-FRONT

$115.99

$

Usually ships in 3-6 days

0

14

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

15

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

16

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

17

Toro 101707

LOCK

$

$

Not available

18

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

19

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

20

Toro 93-1613

LATCH

$

$

Not available

21

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 1 left!

0

22

Toro 79-3720

BUSHING

$

$

Not available

23

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 79-3230

IDLER-SLIDE W.A.

$106.99

$

Usually ships in 3-6 days

0

25

Toro 93-0530-03

BRACKET IDLER W.A.BLACK

$351.99

$

Usually ships in 3-6 days

0

26

Toro 9329664

Clevis Pin

$

$

Currently unavailable

27

Toro 93-1621

SPRING-COMPRESSION

$

$

Not available

28

Toro 79-3270-03

SPRING-TENSIONER

$

$

Not available

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

31

Toro 93-0528-03

Catch-Idler Support
(Superseded to 93-0528)

$

$

Not available

32

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0
