79261 - Toro 42" Snow Thrower Attachment (SN: 049000001 - 049999999) (1994) BLOWER ASSEMBLY Parts Diagram

42" Snow Thrower Attachment

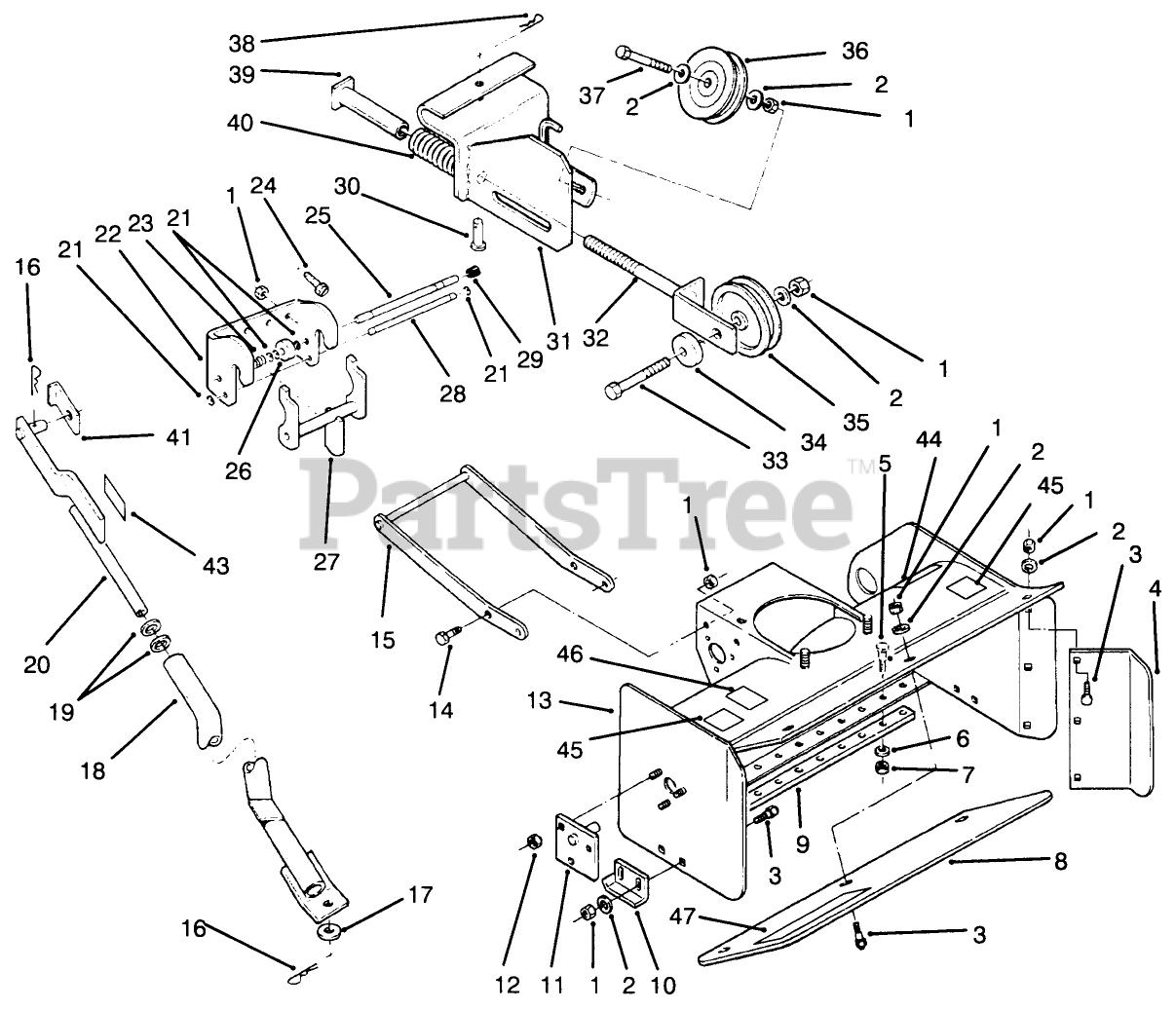

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 93-1617-01

PLATE-EXTENSION, RH

$95.99

$

Usually ships in 3-6 days

0

5

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 93-1616-01

PLATE-EXTENSION

$

$

Not available

9

Toro 79-6170-01

SCRAPER-REVERSIBLE
(Superseded to 79-6170-03)

$104.99

$

Usually ships in 3-6 days

0

10

Toro 93-1620-01

SKID

$45.99

$

In Stock, only 1 left!

0

11

Toro 93-1618-01

SUPPORT

$54.99

$

In Stock, only 2 left!

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 92-9777-01

Housing-Auger (Incl. Ref. #44-46)
(Superseded to 92-9777)

$

$

Not available

14

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 79-6800

Mounting-Frame
(Superseded to 79-6800-01)

$

$

Not available

16

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 10

0

17

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

18

Toro 79-3251-03

LIFT ROD

$

$

Not available

19

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

20

Toro 92-9778-03

Rod-Lift (Incl. Ref. #43)
(Superseded to 92-9778)

$133.99

$

Usually ships in 3-6 days

0

21

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

22

Toro 78-1720-01

HITCH-FRONT

$120.99

$

Usually ships in 3-6 days

0

23

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

24

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

25

Toro 101751

ROD-LOCK

$28.99

$

Usually ships in 3-6 days

0

26

Toro 101707

LOCK

$

$

Not available

27

Toro 93-1613

LATCH

$

$

Not available

28

Toro 101750

ROD-LATCH PIVOT

$51.99

$

Usually ships in 3-6 days

0

29

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

30

Toro 932966

CLEVIS PIN

$

$

Not available

31

Toro 79-3202-03

BRACKET IDLER W.A.BLK

$

$

Not available

32

Toro 79-3230

IDLER-SLIDE W.A.

$112.99

$

Usually ships in 3-6 days

0

33

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Toro 79-3720

BUSHING

$

$

Not available

35

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 2 left!

0

36

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 2 left!

0

37

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

39

Toro 79-3270-03

SPRING-TENSIONER

$

$

Not available

40

Toro 79-3310

Spring-Compression
(Superseded to 93-1621)

$

$

Not available

41

Toro 79-7090

RETAINER CLIP

$57.99

$

Usually ships in 3-6 days

0

43

Toro 85-7480

DECAL - WARNING

$

$

Not available

44

Toro 86-5100

DECAL - WARNING

$

$

Not available

45

Toro 63-2380

DECAL-DANGER

$14.99

$

Usually ships in 3-6 days

0

46

Toro 92-8652

DECAL-WARNING

$

$

Not available

47

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$16.99

$

Usually ships in 3-6 days

0
