79261 - Toro 42" Snow Thrower Attachment (SN: 039000001 - 039999999) (1993) CHUTE ASSEMBLY Parts Diagram

42" Snow Thrower Attachment

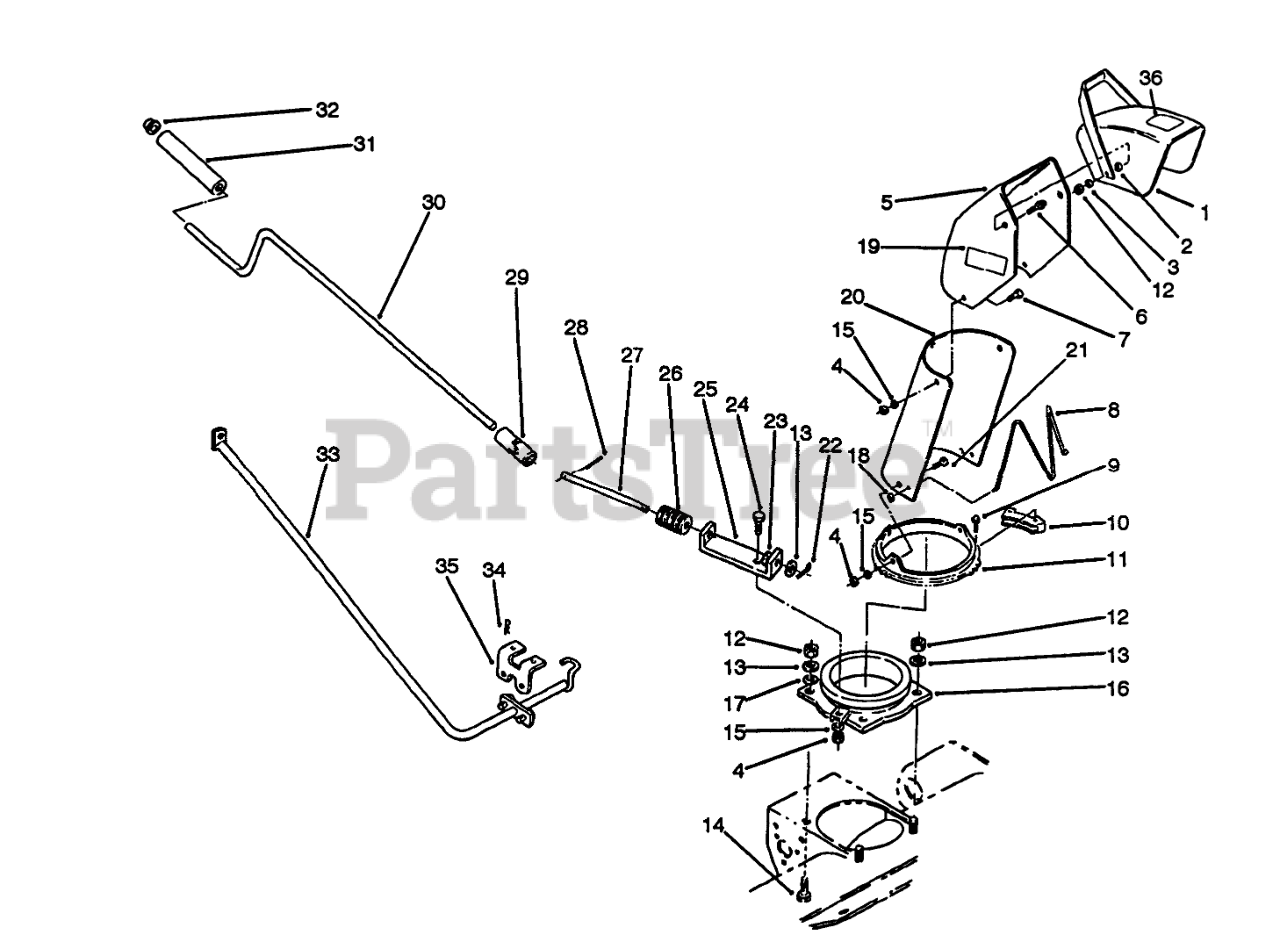

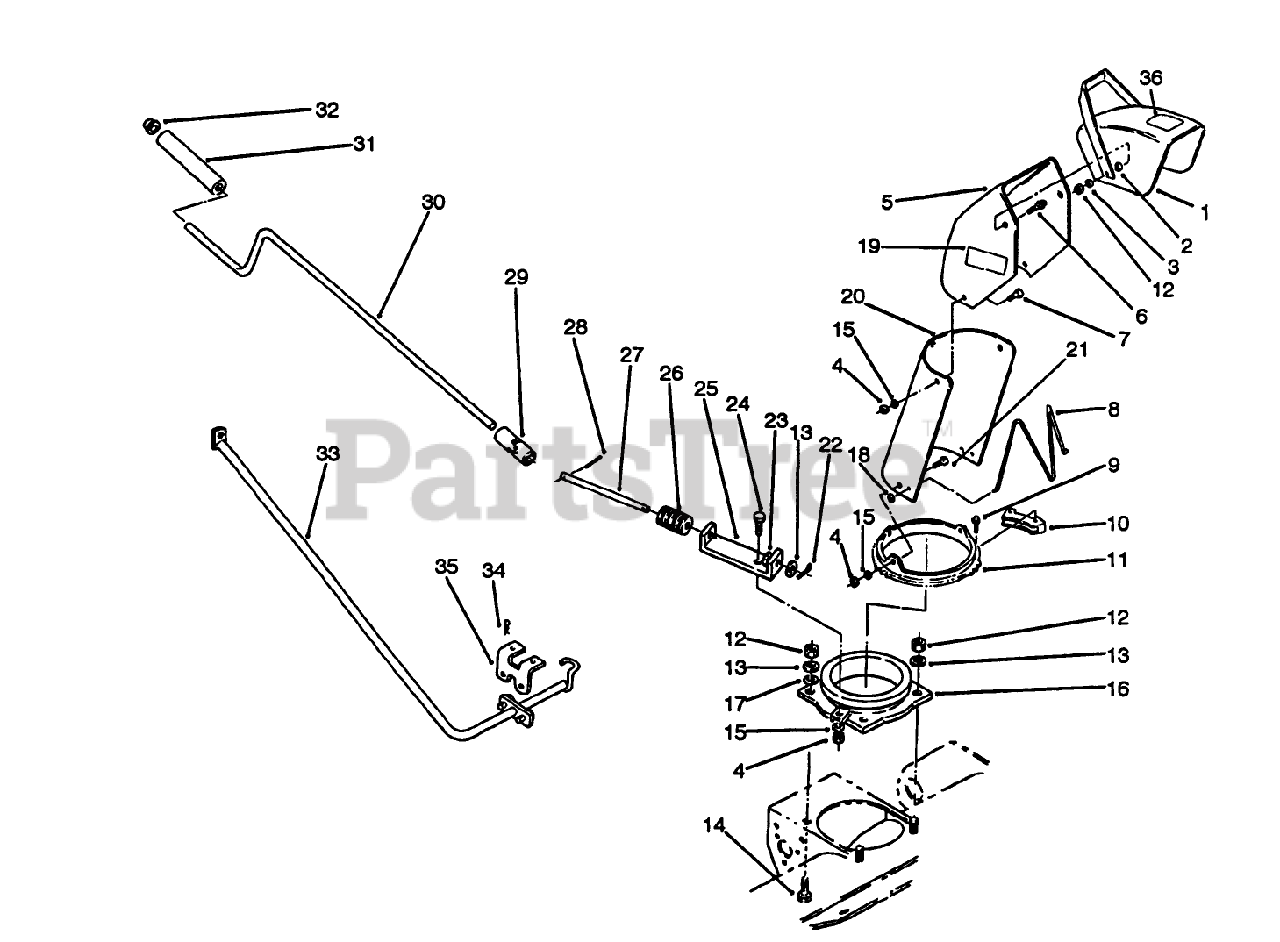

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 11-9349

Deflector (Incl. Ref. #36)
(Superseded to 11-7120-01)

$120.99

$

Usually ships in 3-6 days

0

2

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

3

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 14-7209

Chute-Discharge (Incl. Ref. #19)

$

$

Not available

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

8

Toro 12-2040

WIRE-CHUTE

$

$

Not available

9

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

10

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

11

Toro 78-0160

Ring-Swivel
(Superseded to 78-0160-01)

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 78-0330

Adapter
(Superseded to 78-0330-03)

$

$

Not available

17

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

19

Toro 63-3740

Decal-Danger
(Superseded to 94-8079)

$11.99

$

Usually ships in 3-6 days

0

20

Toro 26-1110

Chute-Extender
(Superseded to 26-1110-01)

$173.99

$

Usually ships in 3-6 days

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

23

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

24

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

25

Toro 79-3770

Bracket-Worm
(Superseded to 79-3770-01)

$50.99

$

Usually ships in 3-6 days

0

26

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

27

$

$

Not available

28

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

29

Toro 78-0230

Universal
(Superseded to 94-2686)

$

$

Not available

30

Toro 79-4090

ROD-CHUTE CONTROL

$146.99

$

Usually ships in 3-6 days

0

31

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

32

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

33

Toro 79-3780

WLDMT-CRANK SPT R

$343.99

$

Usually ships in 3-6 days

0

34

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

35

Toro 78-0441

Bracket
(Superseded to 78-0441-01)

$

$

Not available

36

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0
