79261 - Toro 42" Snow Thrower Attachment (SN: 039000001 - 039999999) (1993) AUGER ASSEMBLY Parts Diagram

42" Snow Thrower Attachment

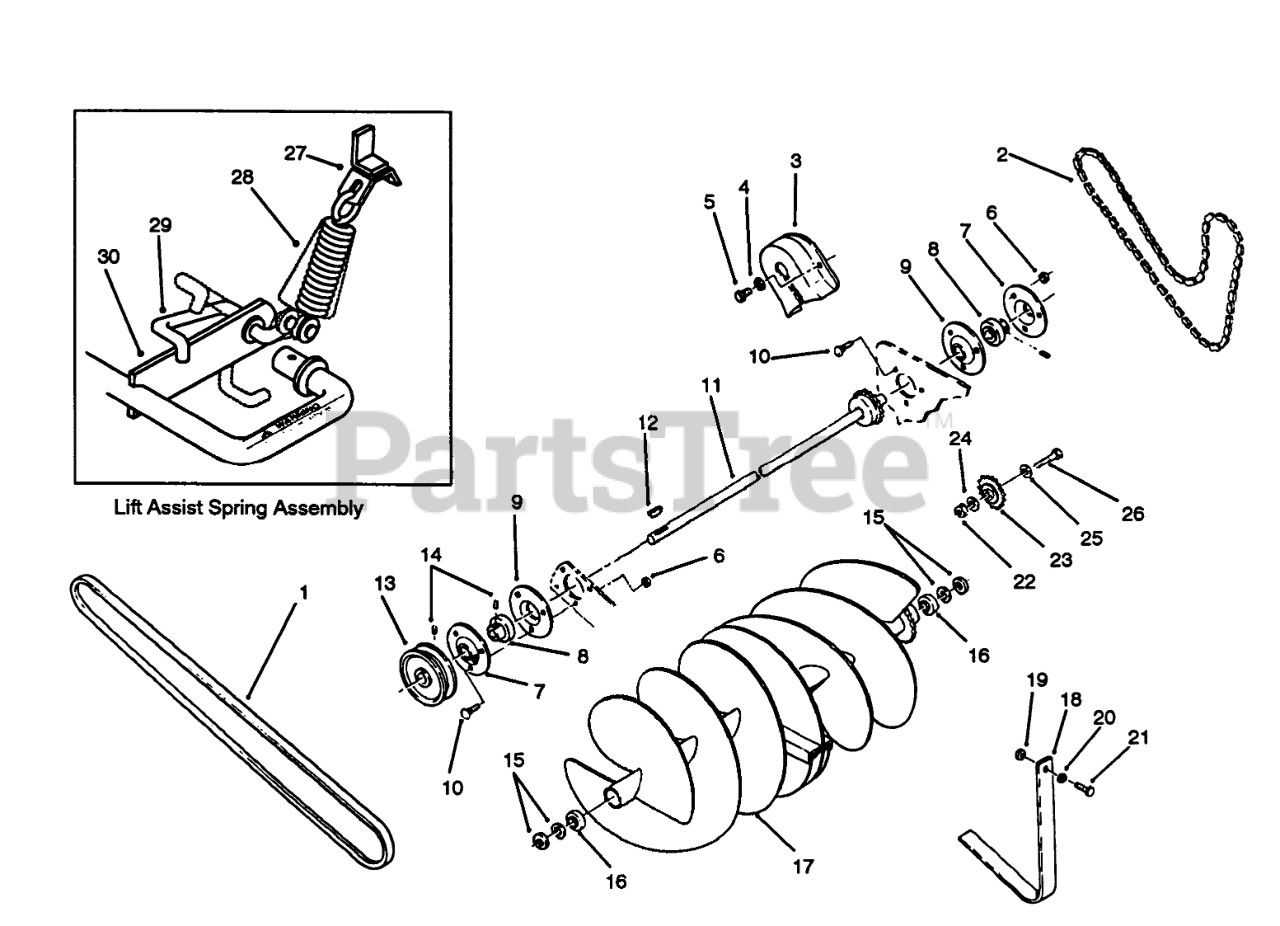

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 78-6240

Belt
(Superseded to 92-6991)

$116.99

$

In Stock, only 2 left!

0

2

Toro 115165

CHAIN-64 PITCHES

$152.99

$

Usually ships in 3-6 days

0

3

Toro 79-4000

GUARD-CHAIN

$

$

Not available

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 110567

FLANGE-ZERK RELUBE

$25.99

$

In Stock, only 2 left!

0

8

Toro 110569

BEARING AND COLLAR

$110.99

$

In Stock, only 2 left!

0

9

Toro 110568

Flange

$19.99

$

In Stock, only 3 left!

0

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 79-4840

Shaft Assembly
(Superseded to 79-4840-01)

$495.99

$

Usually ships in 3-6 days

0

12

Toro 937159

Key
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

13

Toro 113356

PULLEY

$100.99

$

In Stock, only 1 left!

0

14

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

15

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

16

Toro 101480

BEARING-BALL

$56.99

$

In Stock, only 3 left!

0

17

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

18

Toro 109219

Guard-Outer
(Superseded to 93-1619-01)

$46.99

$

In Stock, only 1 left!

0

19

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$63.99

$

In Stock, Qty 8

0

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 6417

SPACER

$

$

Not available

26

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

27

Toro 79-3661

BRACKET

$

$

Not available

28

Toro 79-3740

Spring
(Superseded to 92-9821)

$56.99

$

Usually ships in 3-6 days

0

29

Toro 79-4060

Rod
(Superseded to 93-3161)

$102.99

$

Usually ships in 3-6 days

0

30

Toro 79-3401

Shaft
(Superseded to 79-3401-03)

$355.99

$

Usually ships in 3-6 days

0
