79253 - Toro 48" Snow Blade for 260 Series Tractors (SN: 220000001 - 220999999) (2002) BLADE ASSEMBLY Parts Diagram

48" Snow Blade for 260 Series Tractors

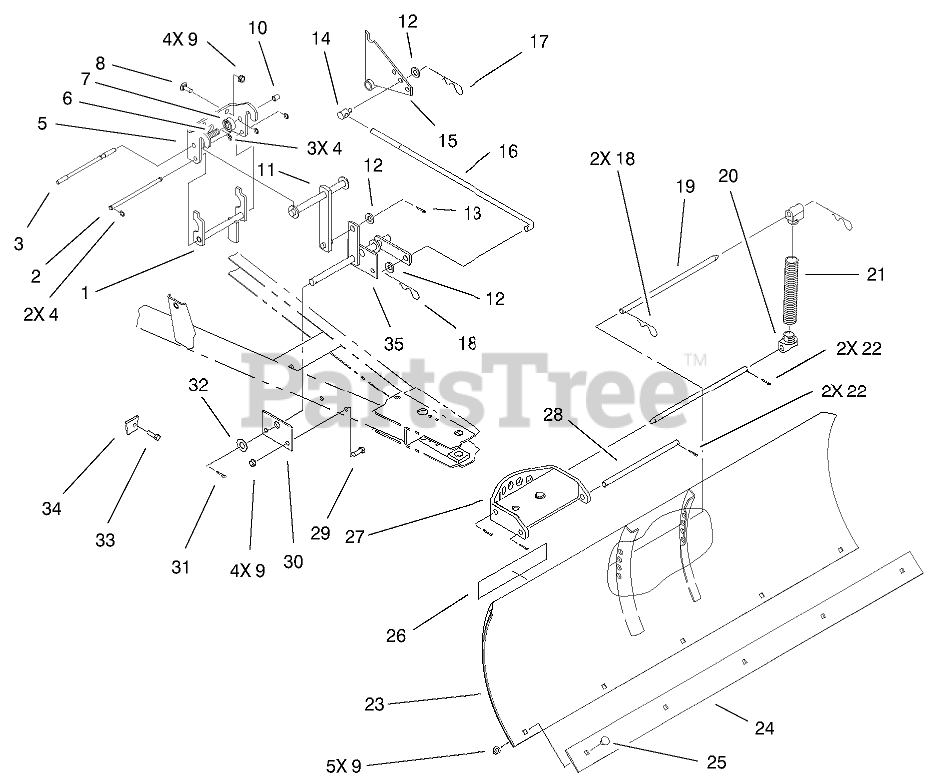

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 93-1613

LATCH

$

$

Not available

2

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

3

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

4

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

5

Toro 78-1720-01

HITCH-FRONT

$115.99

$

Usually ships in 3-6 days

0

6

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

7

$

$

Not available

8

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

10

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

11

Toro 79-5430-01

Arm
(Superseded to 79-5430-03)

$

$

Not available

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

14

Toro 7736

STUD-TRUNION

$

$

Not available

15

Toro 79-5510-01

Plate
(Superseded to 105-1384-03)

$129.99

$

Usually ships in 3-6 days

0

16

$

$

Not available

17

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

18

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

19

Toro 5120

ROD-PIVOT, BLADE

$55.99

$

Usually ships in 3-6 days

0

20

Toro 88-2080-03

Lug-Spring
(Superseded to 105-1386-03)

$124.99

$

Usually ships in 3-6 days

0

21

Toro 93-1611-03

Spring-Trip Return
(Superseded to 105-1386-03)

$124.99

$

Usually ships in 3-6 days

0

22

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Toro 78-1330-01

BLADE ASM

$468.99

$

Usually ships in 3-6 days

0

24

Toro 93-1612-01

PLATE - BLADE EDGE
(Superseded to 93-1612-03)

$53.99

$

In Stock, only 3 left!

0

25

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$15.99

$

Usually ships in 3-6 days

0

27

Toro 78-8760-01

QUADRANT

$244.99

$

Usually ships in 3-6 days

0

28

Toro 4564

ROD-LOWER

$35.99

$

Usually ships in 3-6 days

0

29

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

$

$

Not available

31

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

33

Toro 9267204

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

34

$

$

Not available

35

Toro 79-5460-01

ARM-LIFT

$

$

Not available
