79252 - Toro 48" Snow Blade for 260 Series Tractors (SN: 049000001 - 049999999) (1994) BLADE ASSEMBLY Parts Diagram

48" Snow Blade for 260 Series Tractors

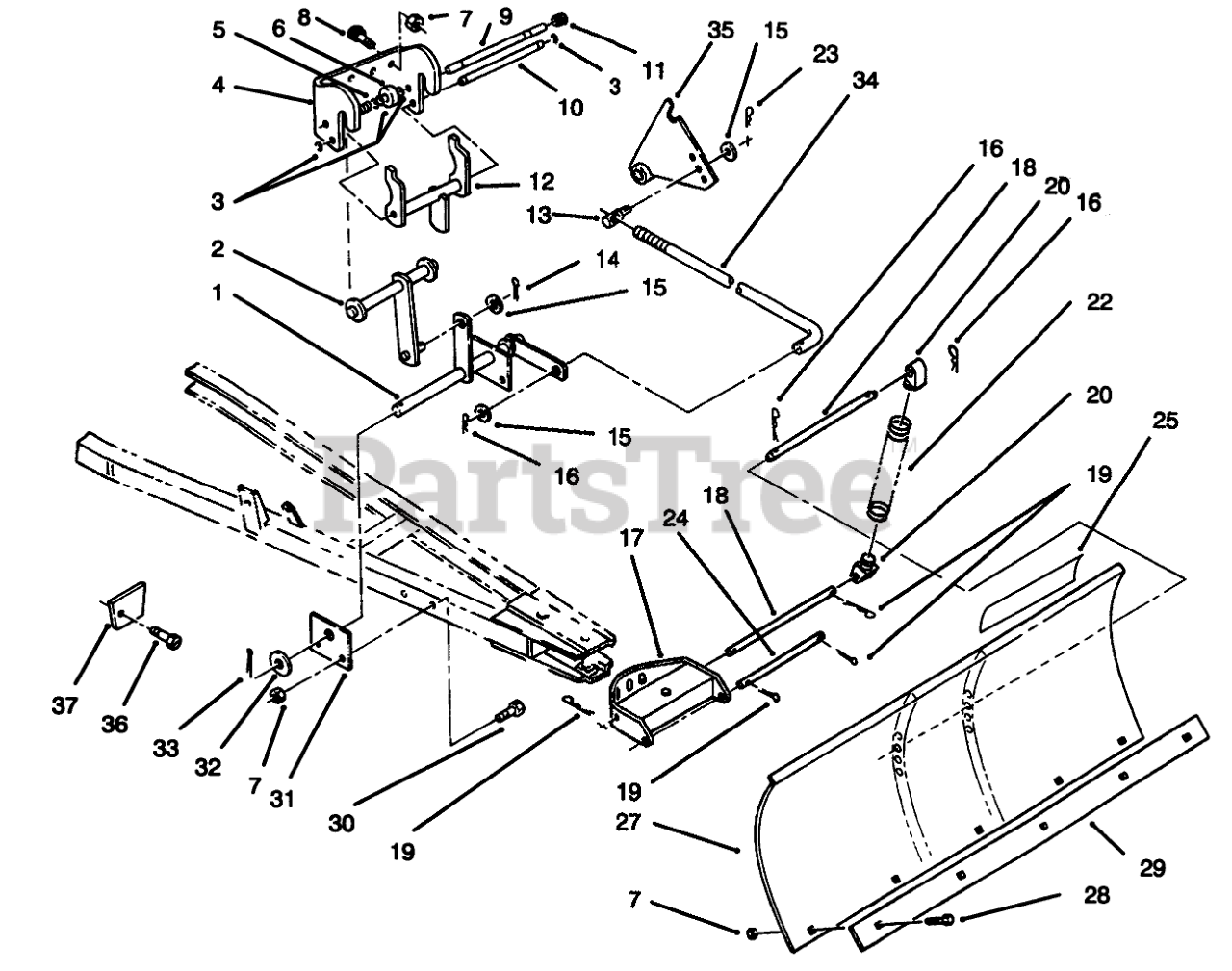

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 79-5460-0

Lift Arm

$

$

Currently unavailable

2

Toro 79-5430-01

Arm
(Superseded to 79-5430-03)

$

$

Not available

3

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

4

Toro 78-1720-01

HITCH-FRONT

$115.99

$

Usually ships in 3-6 days

0

5

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

6

$

$

Not available

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

10

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

11

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

12

Toro 93-1613

LATCH

$

$

Not available

13

Toro 7736

STUD-TRUNION

$

$

Not available

14

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

17

Toro 78-8760-01

QUADRANT

$244.99

$

Usually ships in 3-6 days

0

18

Toro 5120

ROD-PIVOT, BLADE

$60.99

$

Usually ships in 3-6 days

0

19

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Toro 88-2080-01

Lug
(Superseded to 105-1386-03)

$129.99

$

Usually ships in 3-6 days

0

22

Toro 93-1611-01

Spring-Return
(Superseded to 105-1386-03)

$129.99

$

Usually ships in 3-6 days

0

23

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

24

Toro 4564

ROD-LOWER

$39.99

$

Usually ships in 3-6 days

0

25

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$15.99

$

Usually ships in 3-6 days

0

27

Toro 78-1330-01

BLADE ASM

$468.99

$

Usually ships in 3-6 days

0

28

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 93-1612-01

PLATE - BLADE EDGE
(Superseded to 93-1612-03)

$53.99

$

Usually ships in 3-6 days

0

30

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

$

$

Not available

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

33

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

34

$117.99

$

In Stock, only 1 left!

0

35

Toro 79-5510-01

Plate
(Superseded to 105-1384-03)

$129.99

$

Usually ships in 3-6 days

0

36

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

37

$

$

Not available
