79251 - Toro 48" Snow Blade (SN: 039000001 - 039999999) (1993) FRAME ASSEMBLY Parts Diagram

48" Snow Blade

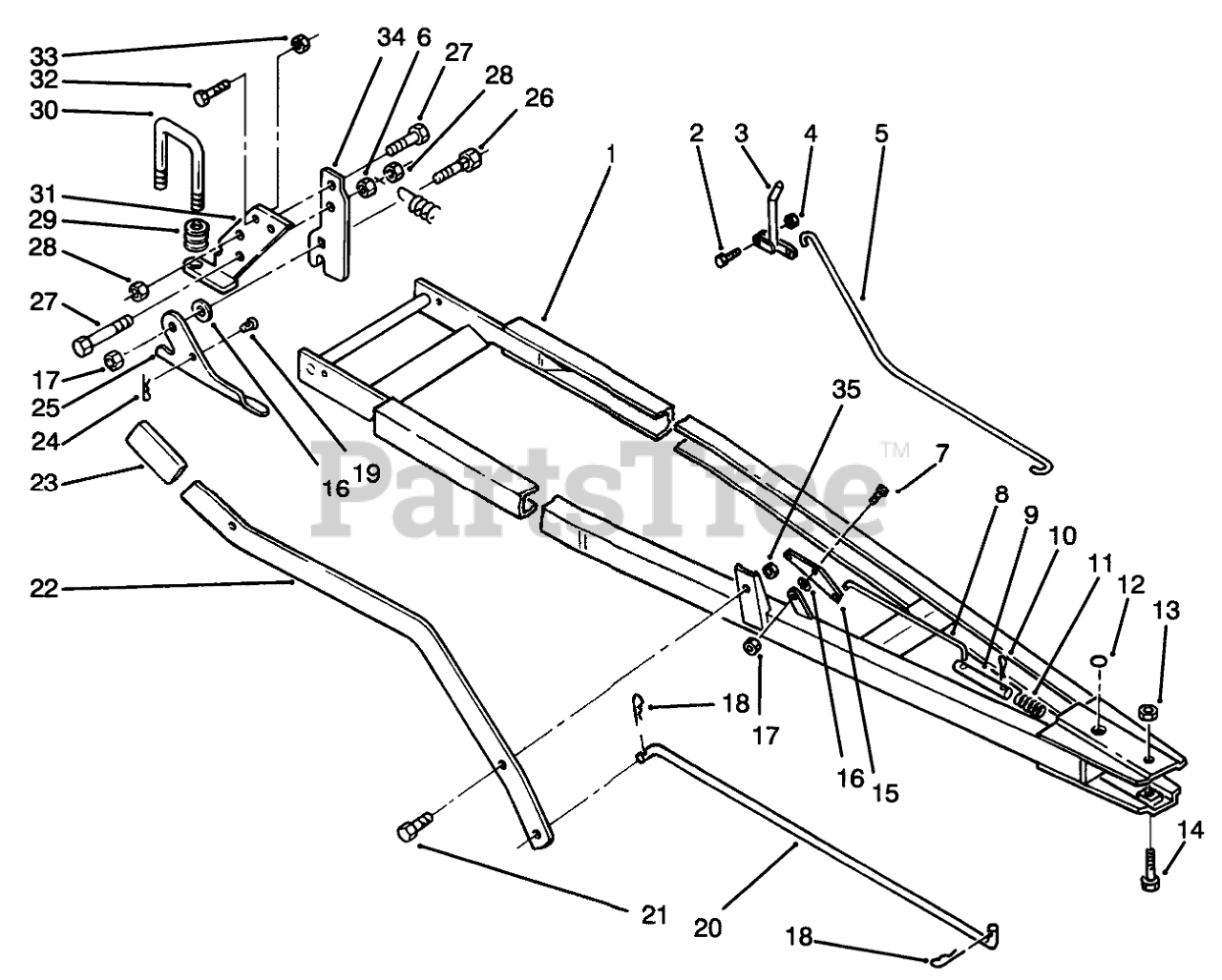

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 79-5080

Frame
(Superseded to 79-5080-01)

$

$

Not available

2

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 5107

INDEX LEVER

$

$

Not available

4

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

5

Toro 79-6140

ROD-UPPER INDEX

$87.99

$

Usually ships in 3-6 days

0

6

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

7

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 79-6130

ROD-LOWER INDEX

$

$

Not available

9

Toro 5127

Index Pin

$

$

Not available

10

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

11

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

12

Toro 4944

PLUG

$8.49

$

Usually ships in 3-6 days

0

13

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

14

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

15

Toro 3770

Index Plate
(Superseded to 92-7037)

$

$

Not available

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

19

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

20

Toro 79-4790

ROD

$159.99

$

Usually ships in 3-6 days

0

21

Toro 108566

EYEBOLT

$7.49

$

Usually ships in 3-6 days

0

22

Toro 79-3950

LEVER-BLADE CONTR R

$

$

Not available

23

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 104657

PLATE-LATCHING

$42.99

$

Usually ships in 3-6 days

0

26

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

27

Toro 908060

H H C S
(Superseded to 325-7)

$1.99

$

In Stock, Qty 5

0

28

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 920241

Washer
(Superseded to 9202414)

$5.49

$

Usually ships in 3-6 days

0

30

Toro 79-2510

U-BOLT

$

$

Not available

31

Toro 79-2070

PLATE-HITCH

$

$

Not available

Toro 79-2080

PLATE-HITCH

$

$

Not available

32

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 78-1400

BRACKET-HITCH

$

$

Not available

35

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

36

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0
