792082 - Gravely Electric Lift Kit Electric Lift Kit (PN 79208200) Parts Diagram

Electric Lift Kit

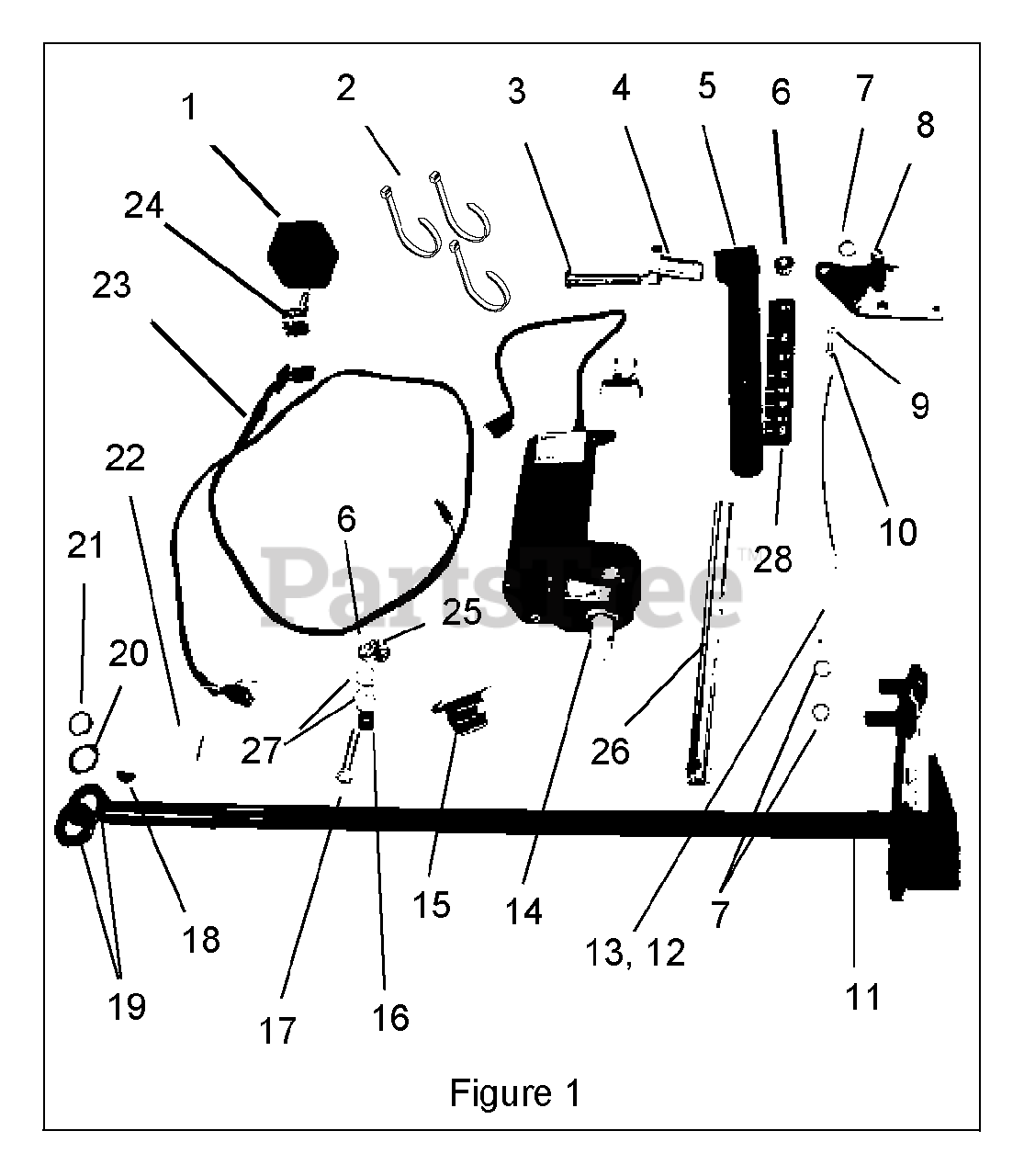

Electric Lift Kit (PN 79208200) Parts Diagram

  • Title
1

Gravely 00614551

Switch Mounting Bracket

$

$

Not available

2

Gravely 07517300

Cable Tie, 5-1/2

$

$

Not available

3

Gravely 05965800

Bolt, Hex 1/2-13 x 3-1/2 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

5

Gravely 00614600

Weldment, Cut Height Indicator

$

$

Not available

6

Gravely 06500010

Nut, 1/2-13 Nylon Lock Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05709200

Ring, Retaining External 5/8 x 3/64

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 00614900

Electric Deck Lift Mount Weldment

$

$

Not available

9

Gravely 06543500

Nut, Locking Top-Flange 1/4-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05946800

Bolt, Hex 1/4-20 x 3/4 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00614800

Electric Deck Lift Weldment

$

$

Not available

12

Gravely 06927100

Cable, Hood

$14.99

$

In Stock, only 1 left!

0

13

Gravely 01593500

Pin, Spring Ball 3/8 OD x 1-1/2

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 00667700

Actuator, Linear

$1392.99

$

Usually ships in 4-12 days

0

15

Gravely 00677900

Clamp, 3/8 Self Adhesive

$

$

Not available

16

Gravely 03233100

Spacer 33/64 x 3/4 x 5/8

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 05966600

Bolt-Hex 1/2-13 x 2-1/2 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

18

Gravely 06608900

Key, Woodruff 1/4 x 1 Hard #15

$3.99

$

In Stock, Qty 18

0

19

Gravely 06443000

Washer, Flat-Steel 1-1/16 x 2 x 9/64
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

20

Gravely 06435300

Washer, Hardened Thrust 1 x 1-35/64 x 1/32

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 05707300

Ring, Retaining External 1 x 5/64

$2.99

$

In Stock, Qty 9

0

22

Gravely 05800001

Pin, Roll 1/4 x 1-1/4 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 00673200

Harness, Electric Deck Lift
(Superseded to 00673201)

$

$

Not available

24

Gravely 00668600

Switch, Lift Actuator

$78.99

$

Usually ships in 4-12 days

0

25

Gravely 07415400

Screw, Tapping 3/8-16 x 3/4 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00614700

Rod, Cut Height Indicator

$

$

Not available

27

Gravely 06442000

Washer, Flat Steel 9/16 x 1-3/8 x 7/64
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 00673800

Decal, Electric Lift Height of Cut

$

$

Not available
