792048 - Gravely Eye-Q Retrofit Kit for PM100Z, PM200Z Eye-Q(TM) Retrofit Kit PN 79204800 Parts Diagram

Eye-Q Retrofit Kit for PM100Z, PM200Z

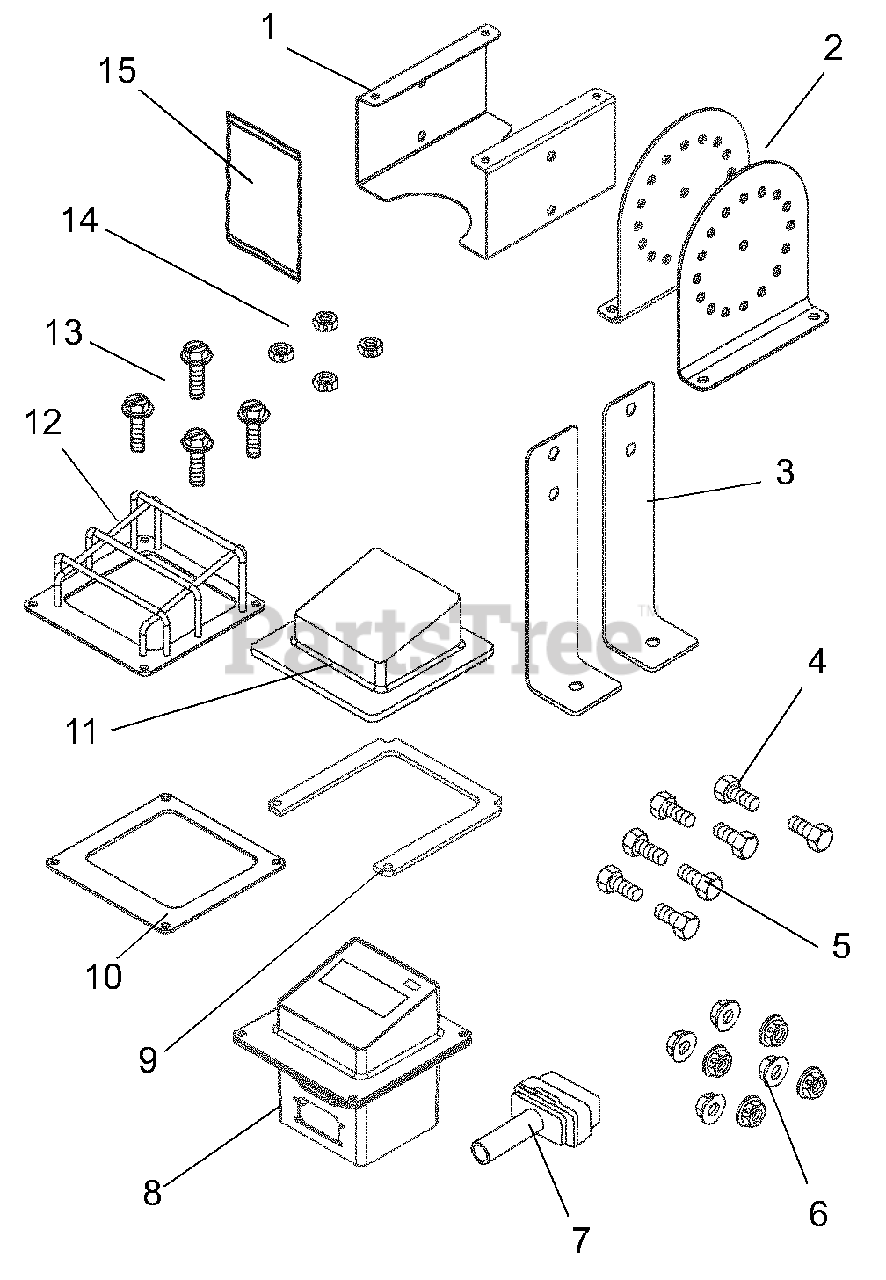

Eye-Q(TM) Retrofit Kit PN 79204800 Parts Diagram

  • Title

Gravely 79204800

Eye-Q(TM) Retrofit Kit

Note: (TM) Retrofit Kit

$

$

Not available

1

Gravely 00271051

Eye-Q(TM) Retrofit Bracket

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

2

Gravely 00271151

Eye-Q(TM) Retrofit Leg

Note: (TM) Retrofit Leg

$

$

Not available

3

Gravely 00273451

Eye-Q(TM) Retrofit Long Leg

Note: (TM) Retrofit Long Leg

$

$

Not available

4

Gravely 05947700

1/4-20 x 1 Hex Bolt, Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

5

Gravely 05947900

1/4-20 x 1/2 Hex Bolt, Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06543500

1/4-20 Top Locking Flange Nut
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00251500

Eye-Q(TM) Retrofit Harness
(Superseded to 00251501)

Note: (TM) Retrofit Harness

$

$

Not available

8

Gravely 00251600

Eye-Q(TM)

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

9

Gravely 00252251

Mounting Enclosure Spacer

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 05600006

Eye-Q(TM) Gasket

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

11

Gravely 00353900

Element Guard

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

12

Gravely 00270300

Vinyl Eye-Q(TM) G
(Superseded to 00266251)

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

13

Gravely 06118200

10-24 x 1-1/2 Hex Washer Head Machine Screw

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06536000

10-24 Nylon Locknut w/ Insert
(Superseded to 06500915)

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$0.99

$

In Stock, Qty 20+

0

15

Gravely 00266400

Eye-Q(TM) Owner/Operator Manual

Note: (TM) Owner/Operator Manual

$

$

Not available

15

Gravely 00345300

Eye-Q(TM) Owner/Operator Manual - Multilingual

Note: (TM) Owner/Operator Manual - Multilingual

$

$

Not available
