792048 - Ariens Eye-Q Retrofit Kit Eye-Q(TM) Retrofit Kit PN 79204800 Parts Diagram

Eye-Q Retrofit Kit

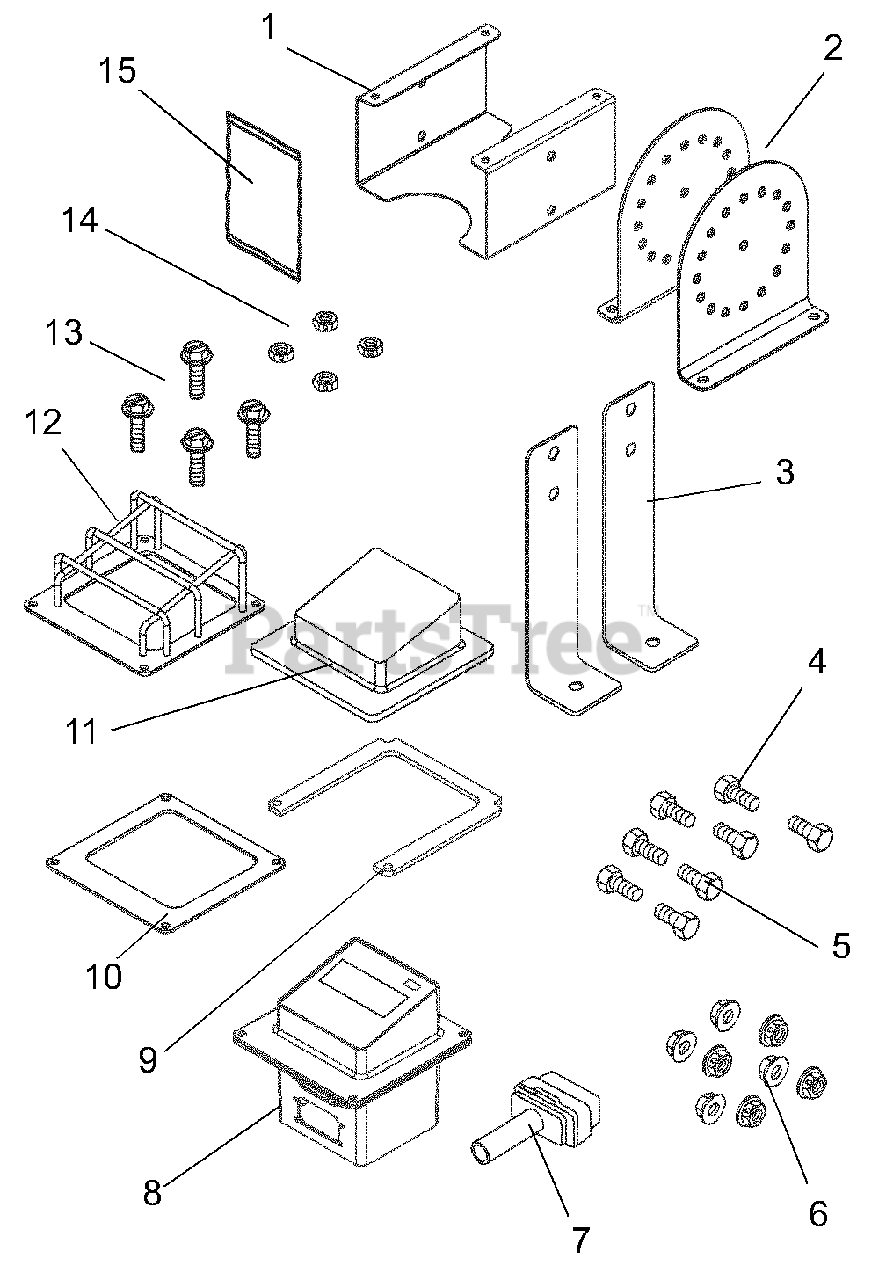

Eye-Q(TM) Retrofit Kit PN 79204800 Parts Diagram

  • Title

Ariens 79204800

KIT,EYE-Q RETRO FIT

Note: (EYE-Q)

$

$

Not available

1

Ariens 00271051

BRKT, EYE-Q RETRO FIT

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory. (EYE-Q)

$

$

Not available

2

Ariens 00271151

LEG, EYE-Q RETRO FIT

Note: (EYE-Q)

$

$

Not available

3

Ariens 00273451

LEG, LONG EYE-Q

Note: (EYE-Q)

$

$

Not available

4

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

5

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00251500

HARNESS,EYE-Q RETRO FIT CONN.
(Superseded to 00251501)

Note: (EYE-Q)

$

$

Not available

8

Ariens 00251600

ASSY, EYE-Q

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

9

Ariens 00252251

SPACER, ENCLOSURE MTG. (BTM)

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05600006

GASKET-EYE Q

Note: (EYE-Q) Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

11

Ariens 00353900

GUARD, ELEMENT

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

12

Ariens 00270300

GUARD, VINYL EYE-Q
(Superseded to 00266251)

Note: (EYE-Q)Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$

$

Not available

13

Ariens 06118200

@SCR-MCH 10-24X1.50 HWH YWZC

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: Items 1, 8, 9, 10, 11, 12, 13, and 14 ship assembled from the factory.

$0.99

$

In Stock, Qty 20+

0

15

Ariens 00266400

MANUAL, EYE-Q USER

Note: (EYE-Q)

$

$

Not available

Ariens 00345300

MANUAL, EYE Q-TRANSLATED

Note: (EYE-Q)

$

$

Not available
