79203 - Toro 42"/48" Vac-Bagger for 260 Series Tractors (SN: 220000001 - 220999999) (2002) 42" DECK COMPONENTS ASSEMBLY Parts Diagram

42"/48" Vac-Bagger for 260 Series Tractors

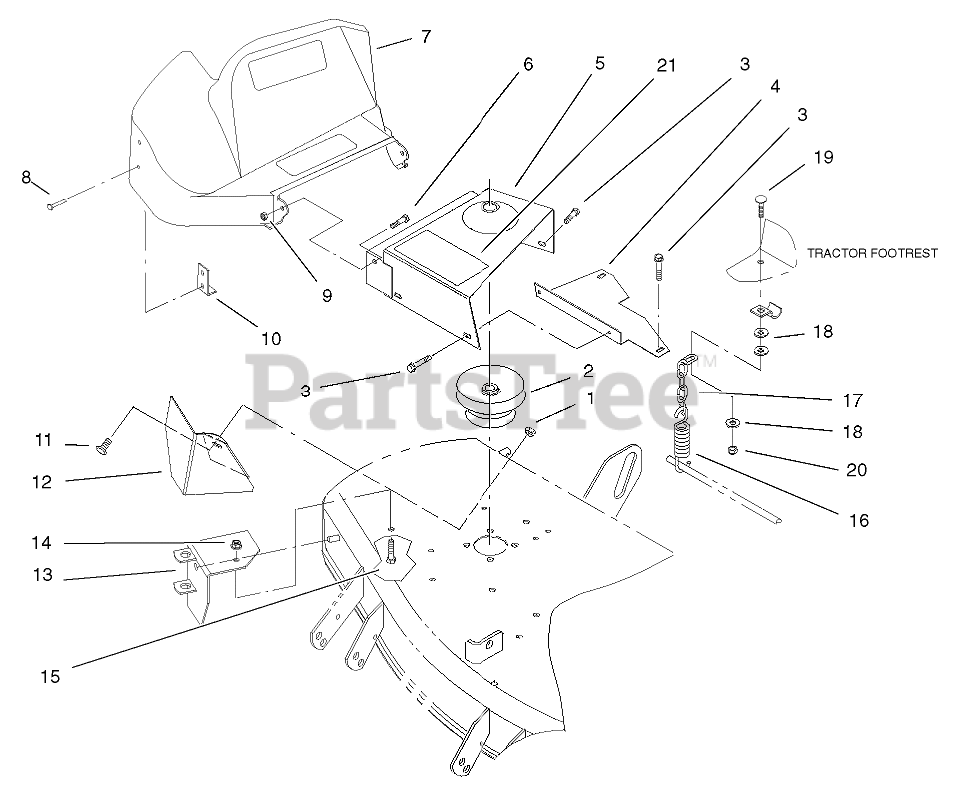

42" DECK COMPONENTS ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 79-7140

PULLEY

$

$

Not available

3

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 79-7120-03

ADAPTER-SHIELD

$34.99

$

Usually ships in 3-6 days

0

5

Toro 88-9580

SHIELD/DECAL ASM

$

$

Not available

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 86-9300

SHIELD-BELT

$

$

Not available

8

Toro 79-0470

RIVET-POP

$

$

Not available

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 79-7300-03

Deflector

$77.99

$

Usually ships in 3-6 days

0

13

Toro 79-7000-03

Pivot Bracket ASM

$124.99

$

Usually ships in 3-6 days

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 94-1593

SPRING-EXTENSION

$

$

Not available

17

Toro 94-1594

CHAIN

$

$

Not available

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0
