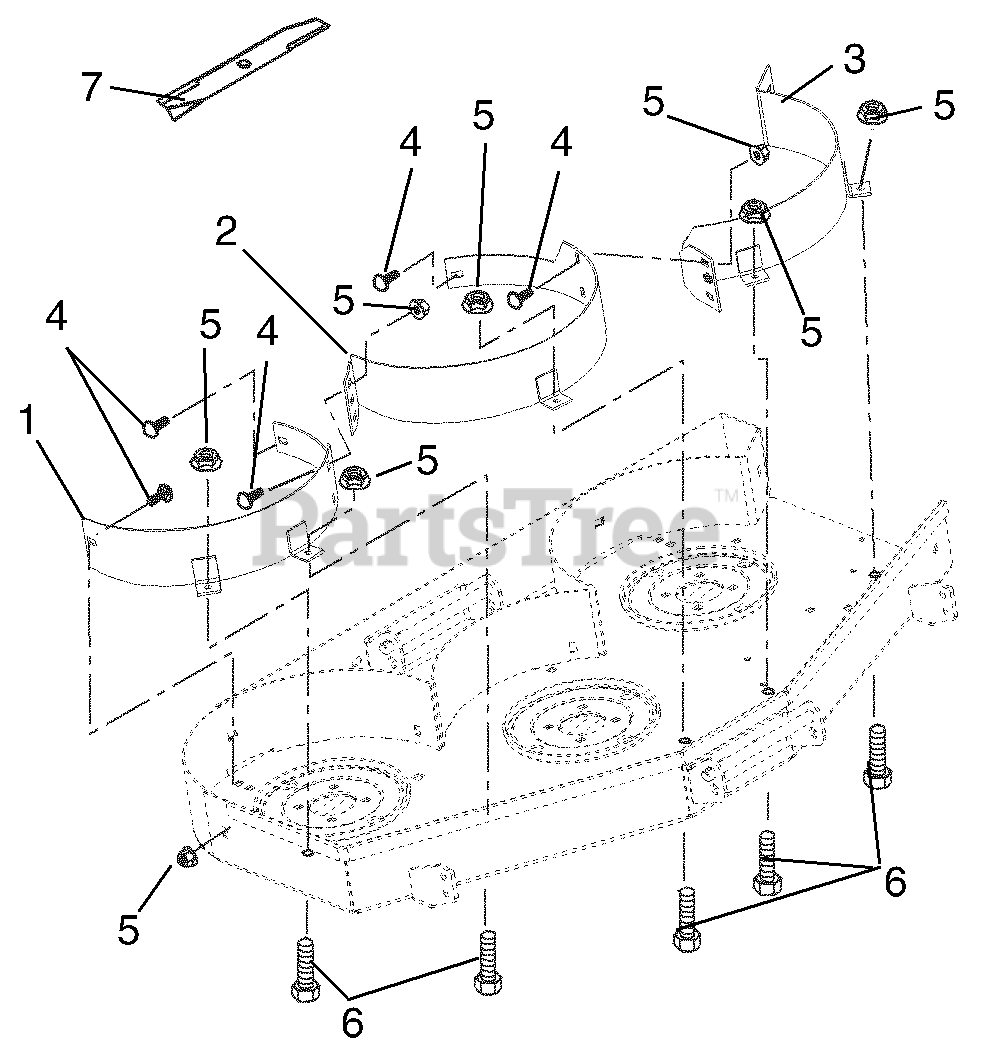

792022 - Ariens Liftmaster Kit, Stand Only Mulching Kit 40-, 44-, 48-, 52-Inch Parts Diagram

Liftmaster Kit, Stand Only

Mulching Kit 40-, 44-, 48-, 52-Inch Parts Diagram

  • Title
1

Ariens 01576451

BAFFLE-MULCH-LEFT FRONT-40"

Note: Kit Number 715024

$66.99

$

Usually ships in 4-12 days

0

1

Ariens 01573051

BAFFLE-MULCH-LEFT FRONT-44"

Note: Kit Number 715025

$60.99

$

Usually ships in 4-12 days

0

1

Ariens 01574351

BAFFLE-MULCH-LEFT FRONT-48"

Note: Kit Number 715026

$62.99

$

Usually ships in 4-12 days

0

1

Ariens 01575351

BAFFLE-MULCH-LEFT FRONT-52"

Note: Kit Number 715027

$90.99

$

Usually ships in 4-12 days

0

2

Ariens 01576551

BAFFLE-MULCH-CENTER FRONT-40"

Note: Kit Number 715024

$

$

Not available

2

Ariens 01573151

BAFFLE-MULCH-CENTER FRONT-44"

Note: Kit Number 715025

$48.99

$

Usually ships in 4-12 days

0

2

Ariens 01574451

BAFFLE-MULCH-CENTER FRONT-48"

Note: Kit Number 715026

$

$

Not available

2

Ariens 01575451

BAFFLE-MULCH-CENTER FRONT-52"

Note: Kit Number 715027

$

$

Not available

3

Ariens 01576651

BAFFLE-MULCH-RIGHT FRONT-40"

Note: Kit Number 715024

$83.99

$

In Stock, only 1 left!

0

3

Ariens 01573251

BAFFLE-MULCH-RIGHT FRONT-44"

Note: Kit Number 715025

$47.99

$

Usually ships in 4-12 days

0

3

Ariens 01574551

BAFFLE-MULCH-RIGHT FRONT-48"

Note: Kit Number 715026

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 01575551

BAFFLE-MULCH-RIGHT FRONT-52"

Note: Kit Number 715027

$17.99

$

In Stock, only 1 left!

0

4

Ariens 06227900

BLT-RDHDSQSHNK .31-18X.62 BKZC
(Superseded to 06212200)

Note: Kit Number All

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

Note: Kit Number All

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07068000

BLT SERHFWH .31-18X.62 GR5BKZC
(Superseded to 07047100)

Note: Kit Number All

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 01600500

BLADE-40" MULCHING (13.83)
(Superseded to 00272800)

Note: Kit Number 715024

$26.99

$

In Stock, Qty 20+

0

7

Ariens 01600000

BLADE-44" MULCHING (15.5)
(Superseded to 00272900)

Note: Kit Number 715025

$23.99

$

Usually ships in 4-12 days

0

7

Ariens 04920600

BLADE - MULCHING (16.25)
(Superseded to 05244100)

Note: Kit Number 715026

$27.99

$

In Stock, Qty 20+

0

7

Ariens 04917900

BLADE - MULCHING (18.00")
(Superseded to 00273100)

Note: Kit Number 715027

$26.99

$

In Stock, Qty 20+

0
