79202 - Toro 38" Twin Bagger for 260 Series Tractors (SN: 049000001 - 049999999) (1994) COVER & CHUTE ASSEMBLY Parts Diagram

38" Twin Bagger for 260 Series Tractors

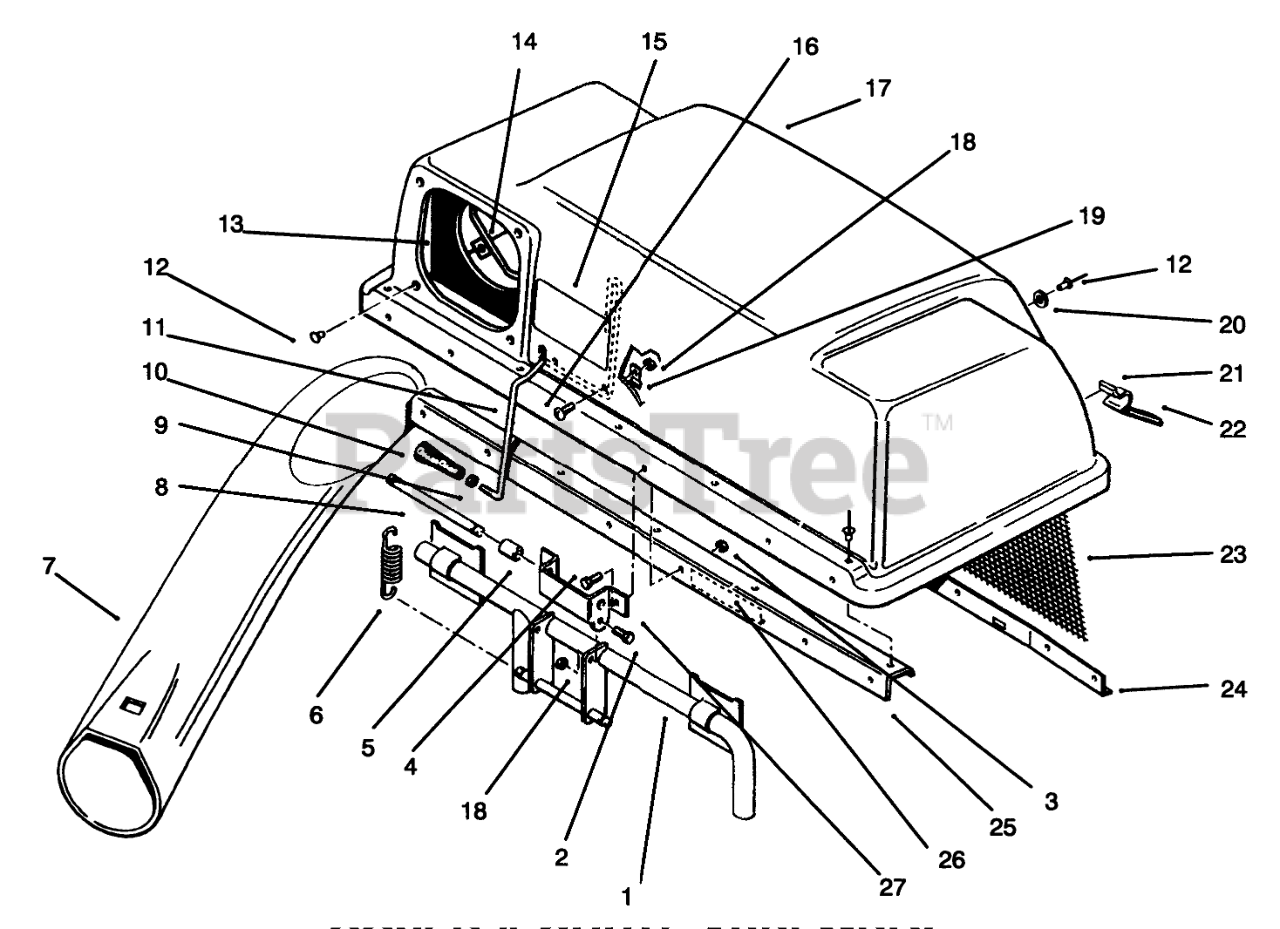

COVER & CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 114955

FRAME ASM
(Superseded to 114955-03)

$754.99

$

Usually ships in 3-6 days

0

2

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 979094

SPACER
(Superseded to 9790944)

$2.99

$

In Stock, only 2 left!

0

6

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

7

Toro 78-8770

CHUTE-BAGGER

$

$

Not available

8

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

9

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

10

Toro 118320

HANDLE-TAPERED

$

$

Not available

11

Toro 114969

FEELER-FILL, BAG

$

$

Not available

12

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

13

Toro 117239

SEAL-CHUTE

$84.99

$

Usually ships in 3-6 days

0

14

Toro 114966

CLAMP-SEAL

$71.99

$

Usually ships in 3-6 days

0

15

Toro 116347

DECAL

$

$

Not available

16

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-1734

TOP-BAGGER

$

$

Not available

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

20

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

21

Toro 115481

Latch-Bag
(Superseded to 115481-03)

$22.99

$

In Stock, only 4 left!

0

22

$5.49

$

In Stock, Qty 6

0

23

Toro 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

24

Toro 92-1736

Screen Support
(Superseded to 92-1736-03)

$52.99

$

Usually ships in 3-6 days

0

25

Toro 88-9570

Bagger-Stiffener (Incls. Ref. #26)

$99.99

$

Usually ships in 3-6 days

0

26

Toro 92-7113

DECAL-CAUTION

$

$

Not available

27

Toro 114961

HINGE-BAG TOPB
(Superseded to 114961-03)

$17.99

$

Usually ships in 3-6 days

0
