79202 - Toro 38" Twin Bagger for 260 Series Tractors (SN: 049000001 - 049999999) (1994) BAG & FRAME ASSEMBLY Parts Diagram

38" Twin Bagger for 260 Series Tractors

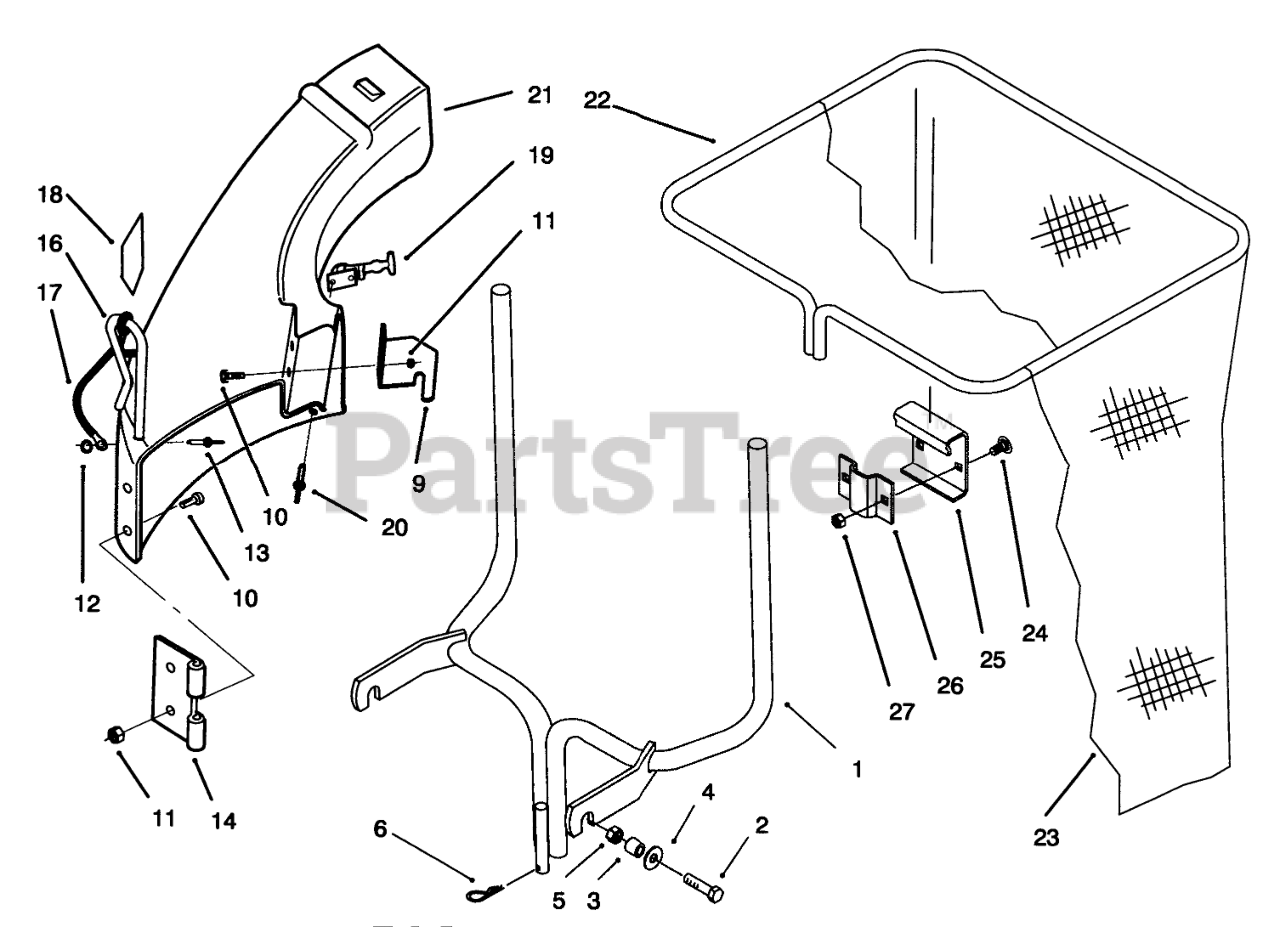

BAG & FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7053

Bracket-Quick Attach
(Superseded to 92-7053-03)

$

$

Not available

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

4

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

9

Toro 120312

LATCH-BAGGER ELBOW

$

$

Not available

10

Toro 911460

Bolt
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

13

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

14

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

16

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

17

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

18

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

19

Toro 57-4670

Latch-38"
(Superseded to 117344)

$36.99

$

Usually ships in 3-6 days

0

20

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

21

Toro 120200

Chute Assembly (Incl. Ref. #9-15 & 17-20)

$345.99

$

Usually ships in 3-6 days

0

22

Toro 114972

Bag Frame
(Superseded to 114972-03)

$113.99

$

Usually ships in 3-6 days

0

23

Toro 93-1623

BAG-DEPTH

$93.99

$

Usually ships in 3-6 days

0

24

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 114973

Bag Hanger
(Superseded to 114973-03)

$26.99

$

In Stock, only 2 left!

0

26

Toro 114974

Clamp
(Superseded to 114974-03)

$14.99

$

Usually ships in 3-6 days

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
