792017 - Gravely Counterweight Kit for PM100Z, PM200Z Counterweight Kit Parts Diagram

Counterweight Kit for PM100Z, PM200Z

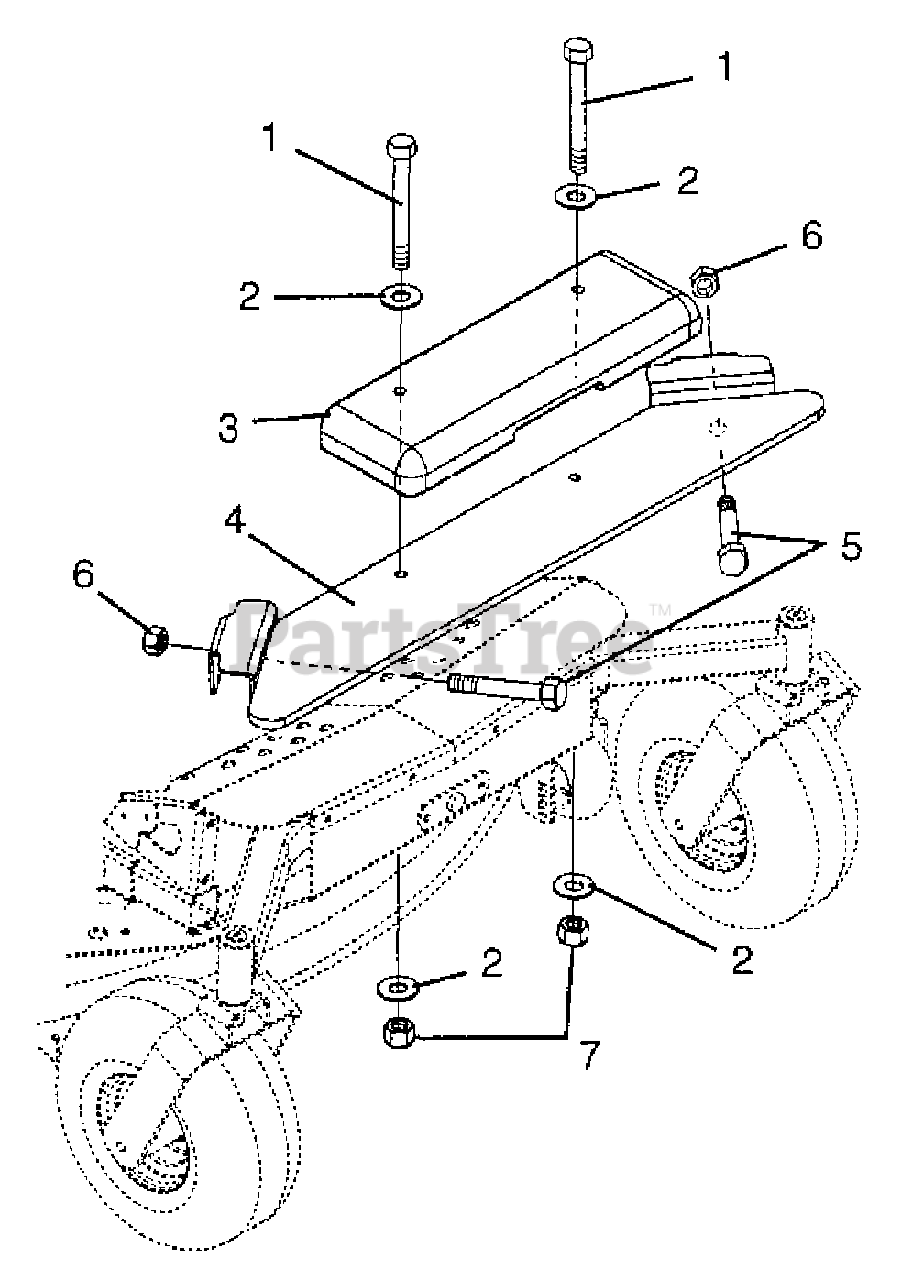

Counterweight Kit Parts Diagram

  • Title
1

Gravely 05965800

Bolt-Hex .50-13 x 3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

1

Gravely 05964100

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

Note: For use with two counterweights. Refer to "Counterweight Requirements" for mounting bolt part numbers when using three or four counterweights.

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 06439200

Washer Flat Steel .51 x 1.00x.062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09054751

Counterweight
(Superseded to 00172000)

$297.99

$

Usually ships in 4-12 days

0

4

Gravely 09260451

Bracket-Counterweight

$

$

Not available

5

Gravely 05957800

Bolt-Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

Gravely 79201700

Counterweight Kit

$

$

Not available
