792006 - Gravely 50" Deck Discharge Cover Kit for PM100Z, PM200Z Discharge Cover Kit 79200600 Parts Diagram

50" Deck Discharge Cover Kit for PM100Z, PM200Z

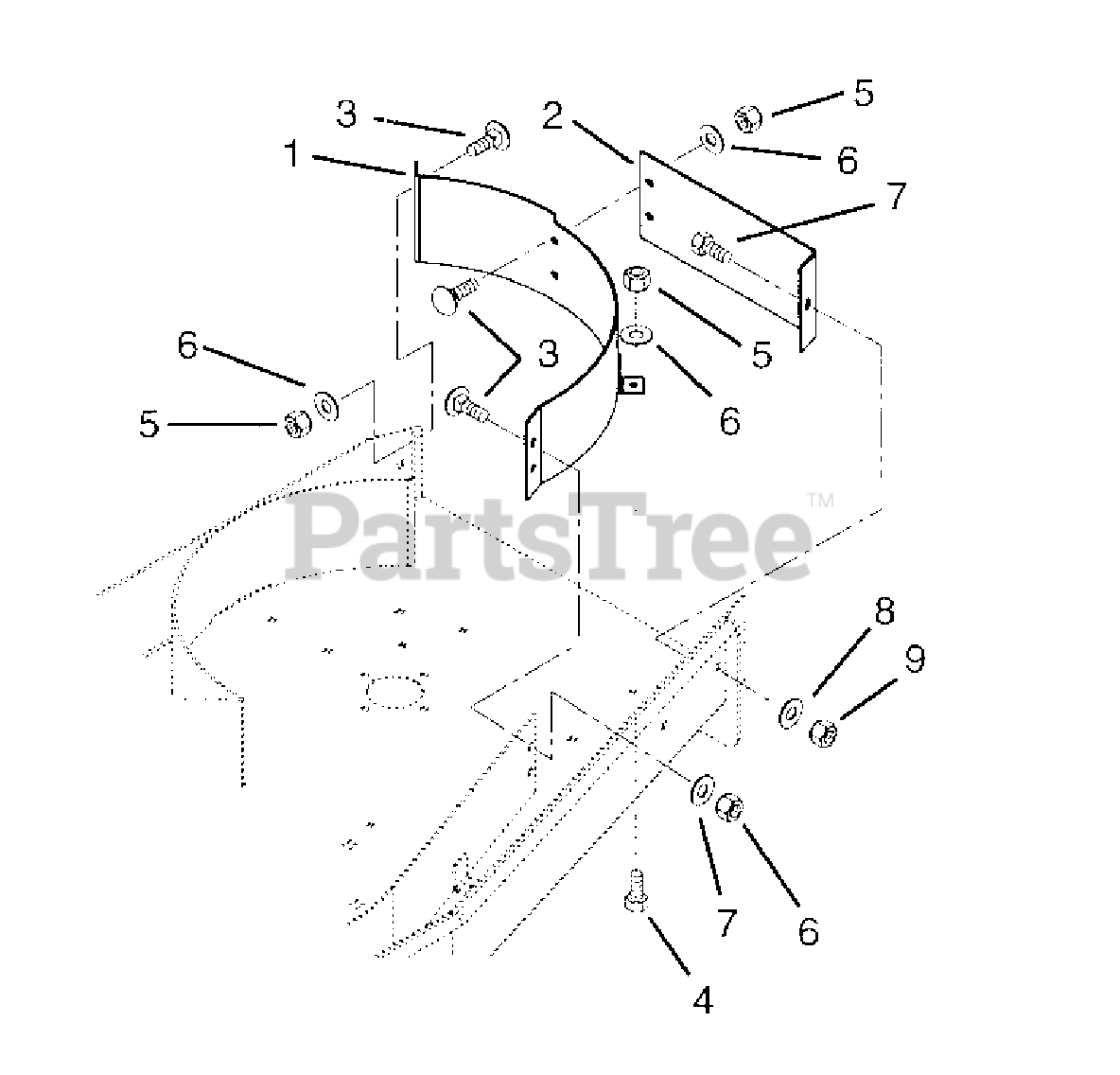

Discharge Cover Kit 79200600 Parts Diagram

  • Title

1

Gravely 09245900

Baffle, Weldment End

$

$

Not available

2

Gravely 09245800

Baffle, End

$

$

Not available

3

Gravely 06215700

Bolt, Round Head Square Shank .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06530200

Nut, Locking Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05958200

Bolt, Hex .38-16 x 1.00 Grade 5

$

$

Not available

8

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

Gravely 79200600

Discharge Cover Kit

$

$

Not available
