79196 - Toro 48" Recycler Kit for 260, 5xi Tractors (2002 & After) RECYCLER ASSEMBLY Parts Diagram

48" Recycler Kit for 260, 5xi Tractors

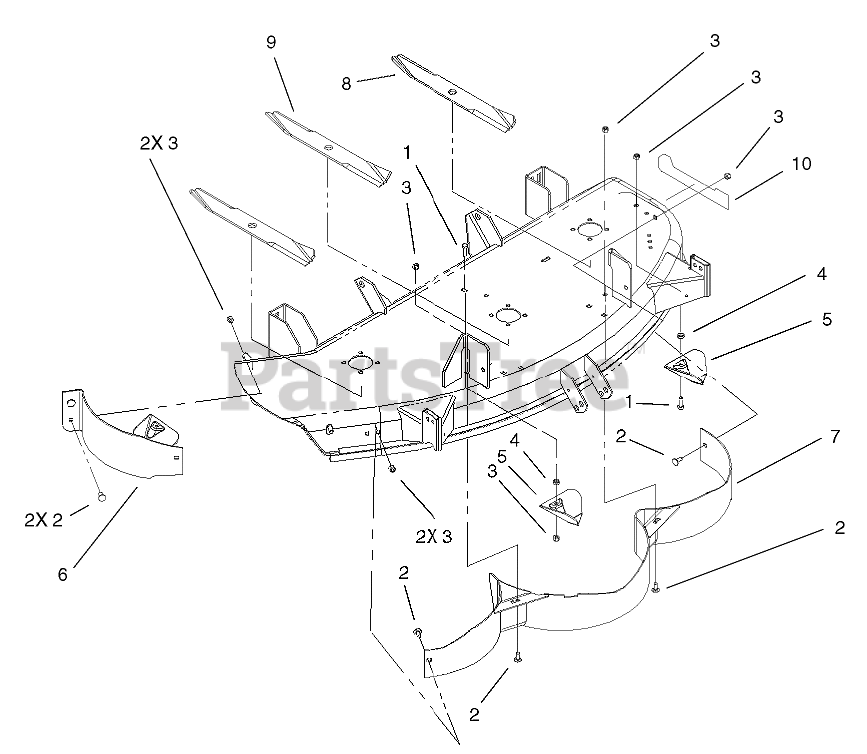

RECYCLER ASSEMBLY Parts Diagram

  • Title
1

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 84-5760

PLATE-KICKER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 94-9708-03

BAFFLE-DISCHARGE

$

$

Not available

7

Toro 94-9710-03

Baffle-Front

$

$

Not available

8

Toro 105-1496-03

Blade-16.25" (Outside)

$38.99

$

Usually ships in 3-6 days

0

9

Toro 105-1497-03

Blade-15.75" (Center)

$

$

Not available

10

Toro 94-9761

DECAL-RECYCLER

$

$

Not available
