79180 - Lawn-Boy Headlight Kit for XL and 200 Series LT/LGT Tractors HEADLIGHT ASSEMBLY Parts Diagram

Headlight Kit for XL and 200 Series LT/LGT Tractors

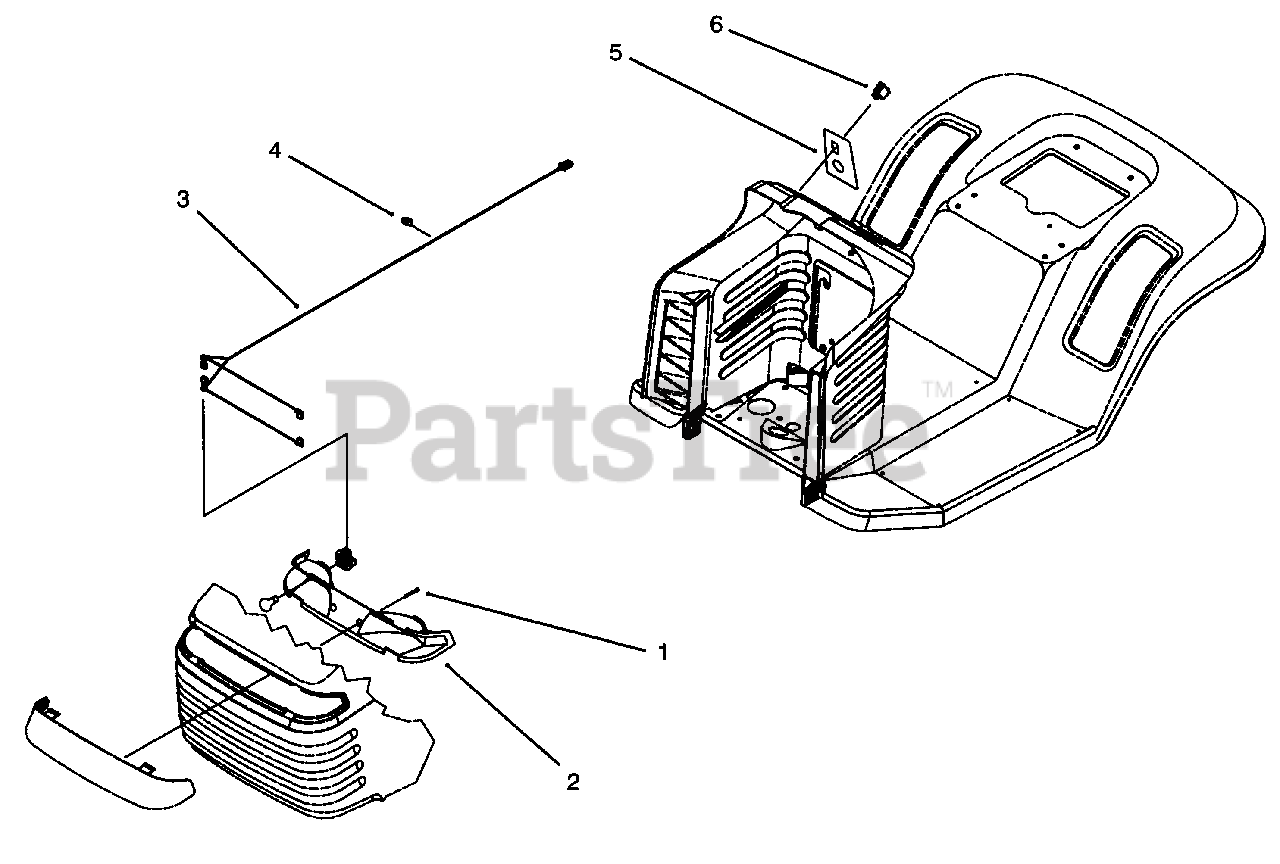

HEADLIGHT ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 32144-32

Screw-Plastite

$2.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 88-3970

Reflector & Lamp Ass'y

$179.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 88-4320

Harness-Light Wire

$76.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 702366

Clip-Wire Retainer

$

$

Not available

5

Lawn-Boy 92-2460

Decal-Ignition/Lights (Model No. 71180 & 71191 Only)

$24.99

$

Usually ships in 3-6 days

0

Lawn-Boy 92-5731

Decal-Ignition/Lights (Model No. 71202 & 71213 Only)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-2464

Decal-Ignition/Lights (Model No. 81180 & 81191 Only)

Note: Not Illustrated

$17.31

$

In Stock, only 1 left!

0

6

Lawn-Boy 92-8875

Switch-Micro

$17.99

$

In Stock, only 1 left!

0
