79170 - Toro 38" Recycler Kit (SN: 069000001 - 069999999) (1996) BAFFLE & BLADE ASSEMBLY Parts Diagram

38" Recycler Kit

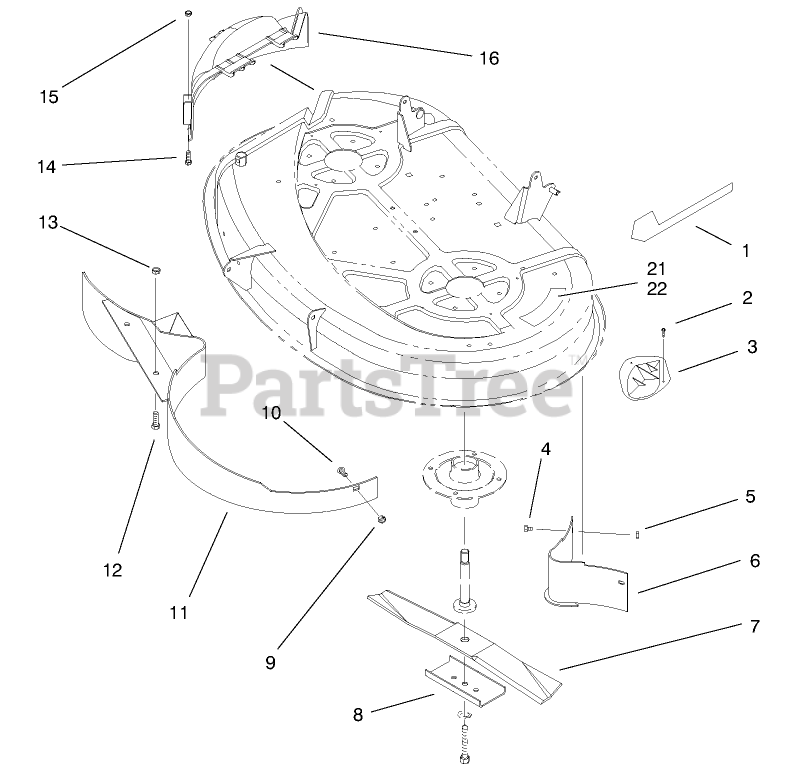

BAFFLE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7988

DECAL-RECYCLER
(Superseded to 106-0689)

$8.49

$

In Stock, Qty 20+

0

2

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$69.99

$

Usually ships in 3-6 days

0

7

Toro 14-7799

BLADE KIT

$71.99

$

In Stock, only 3 left!

0

8

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$109.99

$

Usually ships in 3-6 days

0

12

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

14

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

15

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

16

Toro 88-4430

COVER-RECYCLER

$

$

Not available

21

Toro 92-7111

DECAL - DANGER
(Superseded to 93-7318)

$

$

Not available

22

Toro 93-7318

DECAL - DANGER

$

$

Not available
