79167 - Toro 48" Vac-Bagger (SN: 312000001 - 312999999) (2012) BLOWER DECK MOUNTING ASSEMBLY Parts Diagram

48" Vac-Bagger

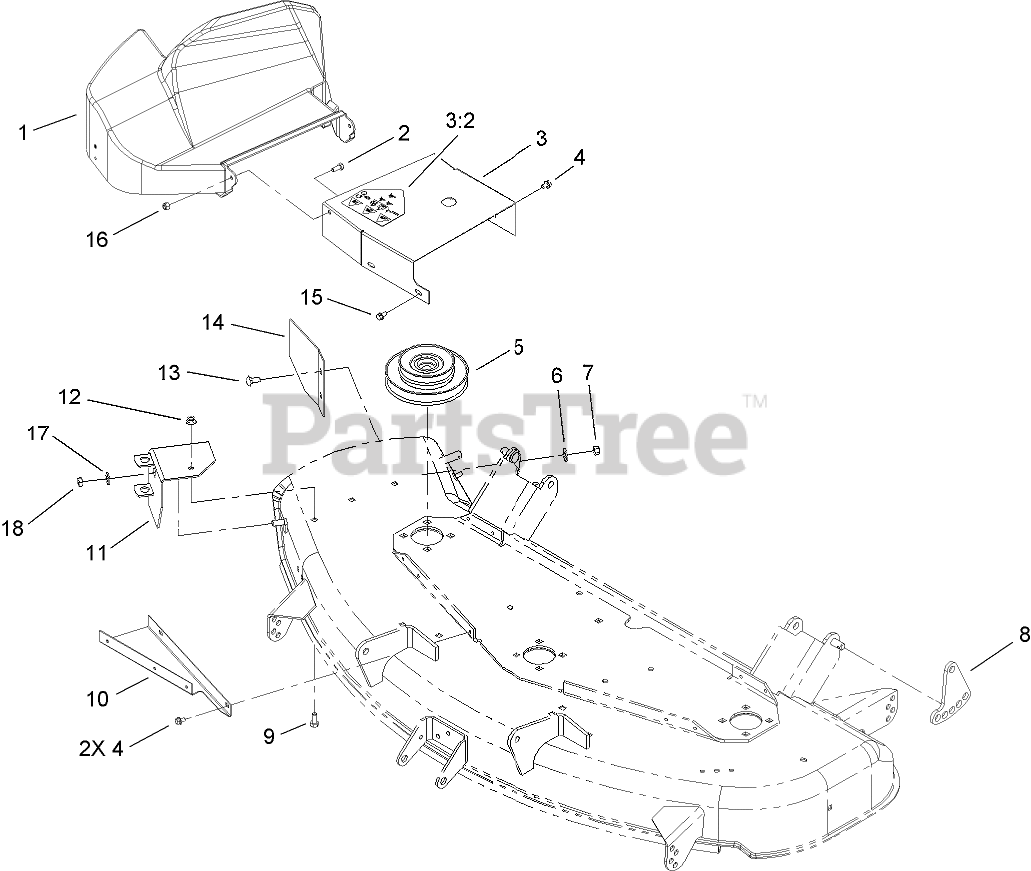

BLOWER DECK MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 110-6505

BELT SHIELD ASM

$353.99

$

Usually ships in 3-6 days

0

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 110-6503

COVER ASM

$187.99

$

Usually ships in 3-6 days

0

3:2

Toro 110-1868

DECAL-DANGER, SHIELD

$15.99

$

Usually ships in 3-6 days

0

4

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

5

Toro 110-6502

PULLEY

$175.99

$

Usually ships in 3-6 days

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 104-8003-01

LINK-HOC, ADJUSTING

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

10

Toro 106-8279-03

ADAPTER-SHIELD

$

$

Not available

11

Toro 79-7000-03

Pivot Bracket ASM

$124.99

$

Usually ships in 3-6 days

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 108-8563-03

BAFFLE

$

$

Not available

15

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

18

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0
