79160 - Toro 44" Vac Bagger (SN: 230000001 - 230999999) (2003) BAG AND FRAME ASSEMBLY Parts Diagram

44" Vac Bagger

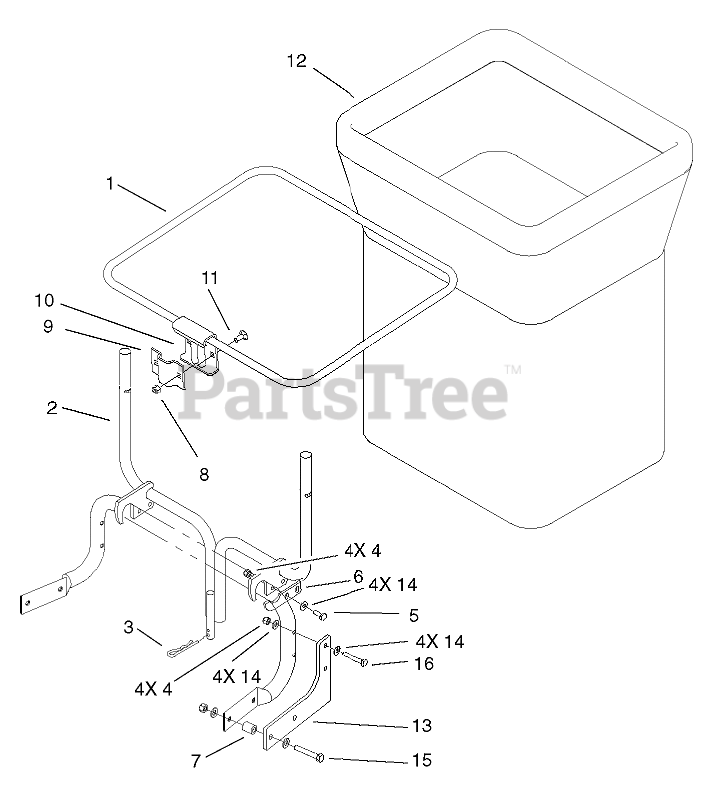

BAG AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 114972-03

FRAME-BAG

$113.99

$

Usually ships in 3-6 days

0

2

Toro 104-3692-03

BAGGER BRACKET ASM

$337.99

$

Usually ships in 3-6 days

0

3

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8006-03

PLATE-BAGGER

$

$

Not available

7

Toro 105-1941-03

Spacer-Black
(Superseded to 105-1941)

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

10

Toro 114973-03

HANGER-BAG

$26.99

$

Usually ships in 3-6 days

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 93-1623

BAG-DEPTH

$93.99

$

Usually ships in 3-6 days

0

13

Toro 105-1940-03

GUSSET-BAGGER

$

$

Not available

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
