79156 - Toro 52" Mulching Kit for Mower BLADE AND BAFFLE ASSEMBLY Parts Diagram

52" Mulching Kit for Mower

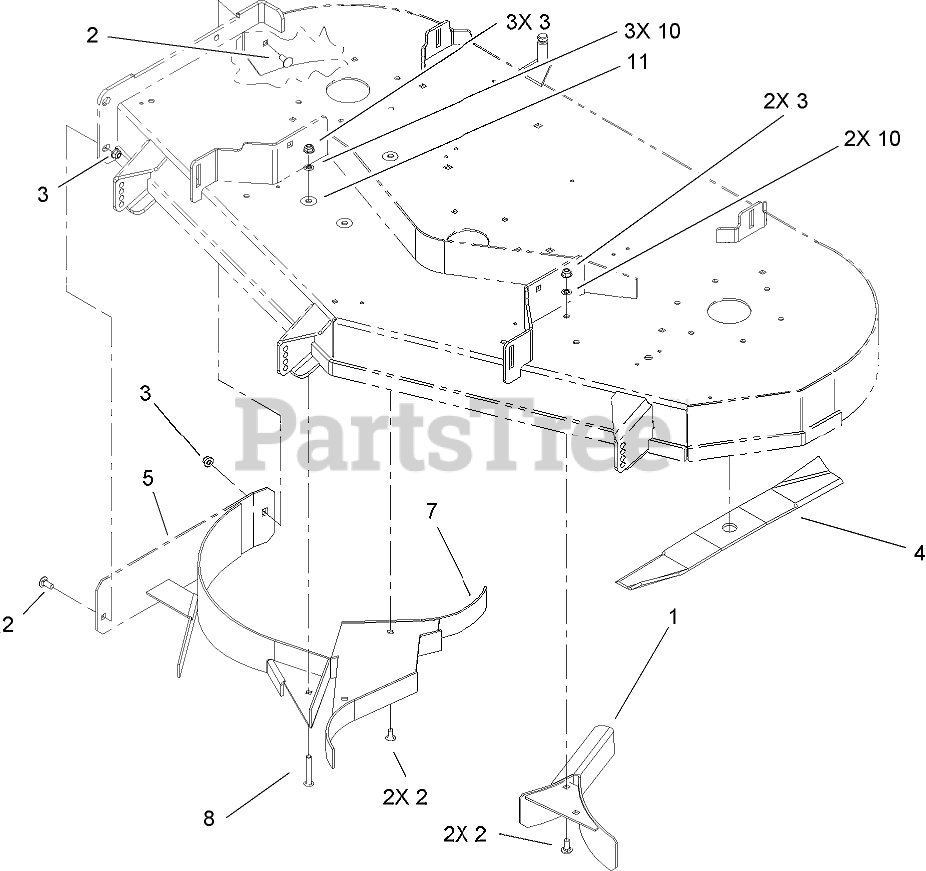

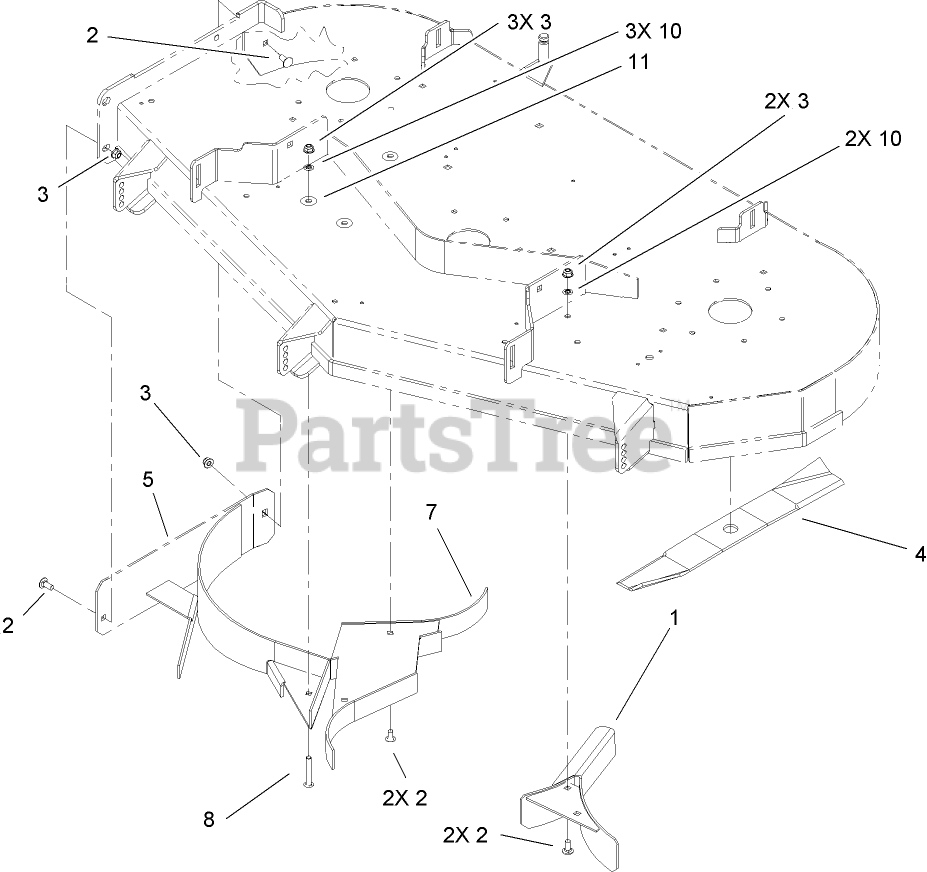

BLADE AND BAFFLE ASSEMBLY Parts Diagram

  • Title
1

Toro 109-5979-03

LH MULCH BAFFLE ASM

$

$

Not available

2

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 109-6480

BLADE-MULCH

$38.99

$

Usually ships in 3-6 days

0

5

Toro 109-5989-03

RH MULCH BAFFLE ASM

$

$

Not available

7

Toro 109-6098-03

CENTER BAFFLE ASM

$

$

Not available

8

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

10

Toro 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

11

Toro 109-6625

DECAL-COVER, HOLE
(Superseded to 109-9159)

$2.99

$

Usually ships in 3-6 days

0
