79150 - Toro 42" Snow Blade (SN: 069000001 - 069999999) (1996) BLADE ASSEMBLY Parts Diagram

42" Snow Blade

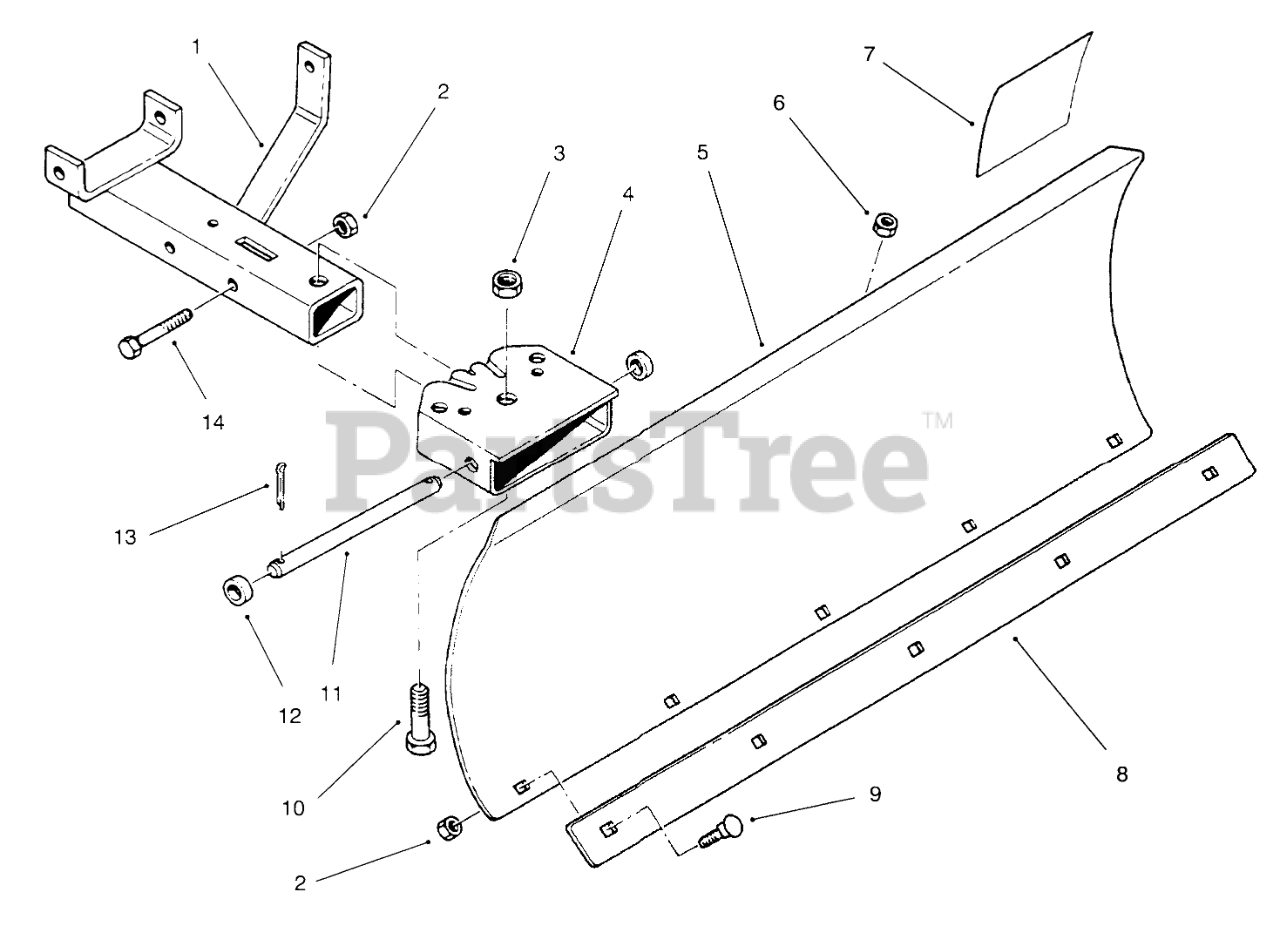

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 92-6045

Frame
(Superseded to 92-6045-03)

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 7

0

4

Toro 92-6043

Quadrant
(Superseded to 92-6043-03)

$

$

Not available

5

Toro 92-6037

Blade
(Superseded to 92-6037-03)

$

$

Not available

6

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

7

Toro 88-1000

DECAL - DANGER

$

$

Not available

8

Toro 92-6034

Plate
(Superseded to 92-6034-03)

$94.99

$

Usually ships in 3-6 days

0

9

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 3216-2

SCREW-HH

$

$

Not available

11

Toro 4564

ROD-LOWER

$39.99

$

Usually ships in 3-6 days

0

12

Toro 92-6035

SPACER

$

$

Not available

13

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0
