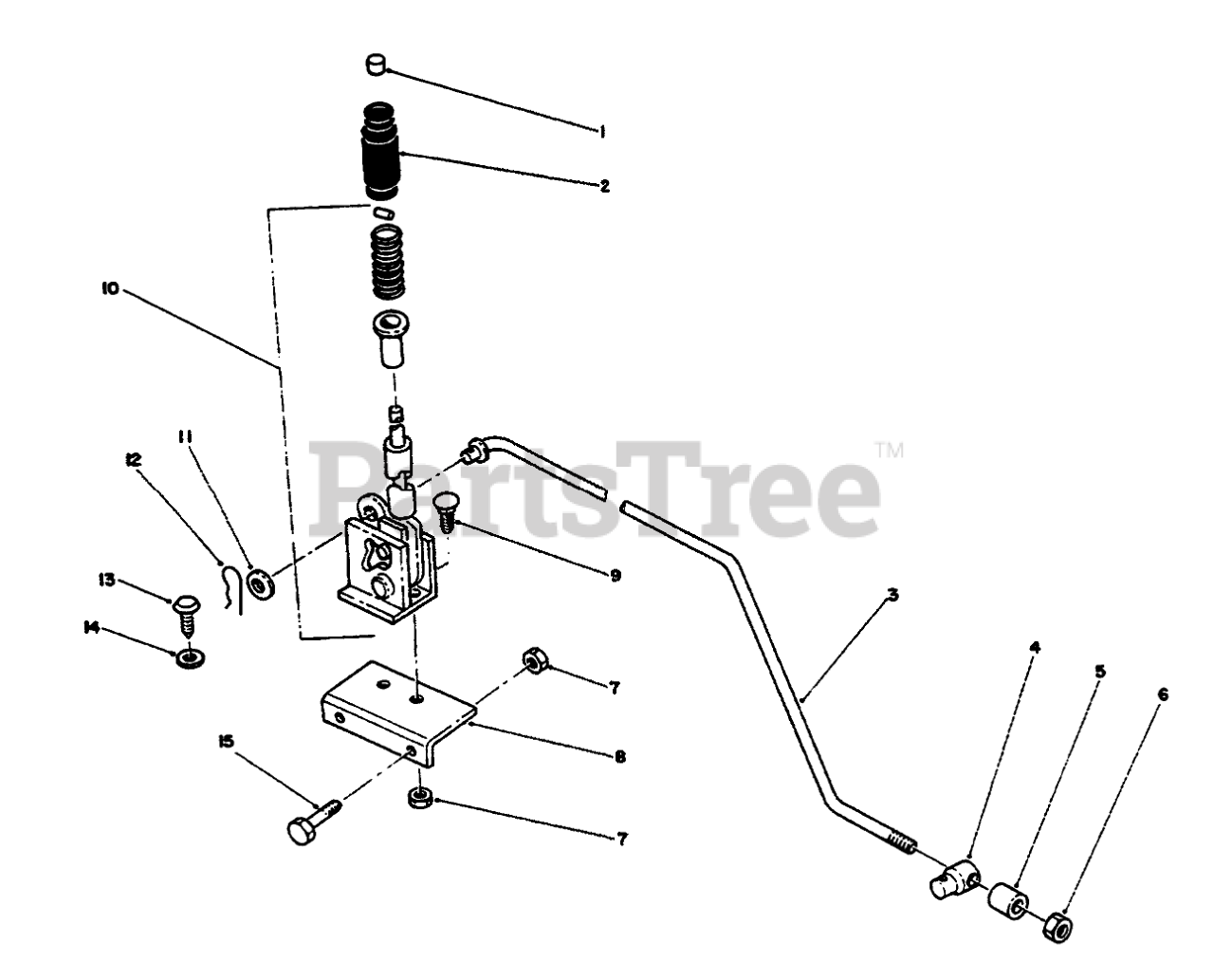

79150 - Toro 42" Snow Blade (SN: 039000001 - 039999999) (1993) LIFT ASSEMBLY Parts Diagram

42" Snow Blade

LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

2

Toro 6542

HANDGRIP

$17.99

$

Usually ships in 3-6 days

0

3

Toro 88-0980

LIFT ROD ASM

$

$

Not available

4

Toro 102213

TRUNION

$82.99

$

Usually ships in 3-6 days

0

5

Toro 111580

Spacer
(Superseded to 92-6036)

$9.99

$

Usually ships in 3-6 days

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 88-0950

Bracket-Support
(Superseded to 88-0950-03)

$61.99

$

Usually ships in 3-6 days

0

9

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

10

Toro 112349

ASS'Y-LIFT HANDLE R

$

$

Not available

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

13

Toro 88-1080

FOOTPAD FASTENER

$9.49

$

In Stock, Qty 5

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
