79150 - Toro 42" Snow Blade (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

42" Snow Blade

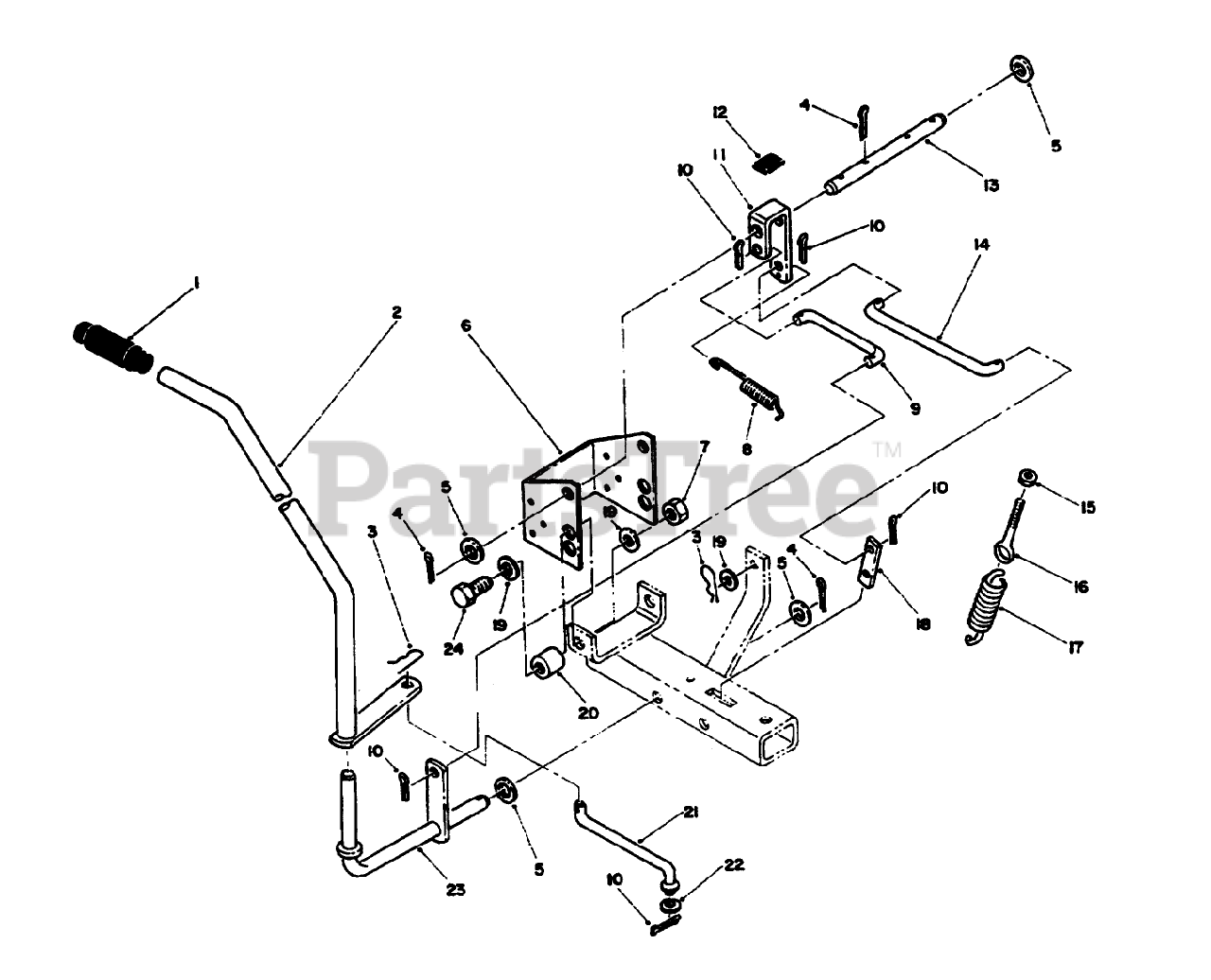

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 6542

HANDGRIP

$16.99

$

Usually ships in 3-6 days

0

2

Toro 108754

ASSY-HANDLE R
(Superseded to 92-6039-03)

$

$

Not available

3

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

4

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

5

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

6

Toro 88-0910

BRACKET MOUNT

$168.99

$

Usually ships in 3-6 days

0

7

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

9

Toro 108749

ROD-BELLCRANK

$

$

Not available

10

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

11

Toro 112483

BELLCRANK-LATCH R
(Superseded to 92-6041-03)

$

$

Not available

12

Toro 88-1010

RUBBER PAD

$

$

Not available

13

Toro 114975

SHAFT R
(Superseded to 92-6044)

$53.99

$

Usually ships in 3-6 days

0

14

Toro 108747

ROD-LATCH

$

$

Not available

15

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

16

Toro 100653

EYEBOLT

$25.99

$

Usually ships in 3-6 days

0

17

Toro 4629

SPRING

$82.99

$

In Stock, only 2 left!

0

18

Toro 108745

LATCH-QUADRANT R
(Superseded to 92-6038-03)

$

$

Not available

19

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 106898

Spacer
(Superseded to 92-6035)

$

$

Not available

21

Toro 108753

ROD-ANGLING

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 114150

ASS'Y-HANDLE PIVO R
(Superseded to 92-6042-03)

$

$

Not available

24

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0
