79150 - Lawn-Boy 42" Snow Blade for XL Lawn Tractor (SN: 004900001 - 004999999) (1994) LIFT ASSEMBLY Parts Diagram

42" Snow Blade for XL Lawn Tractor

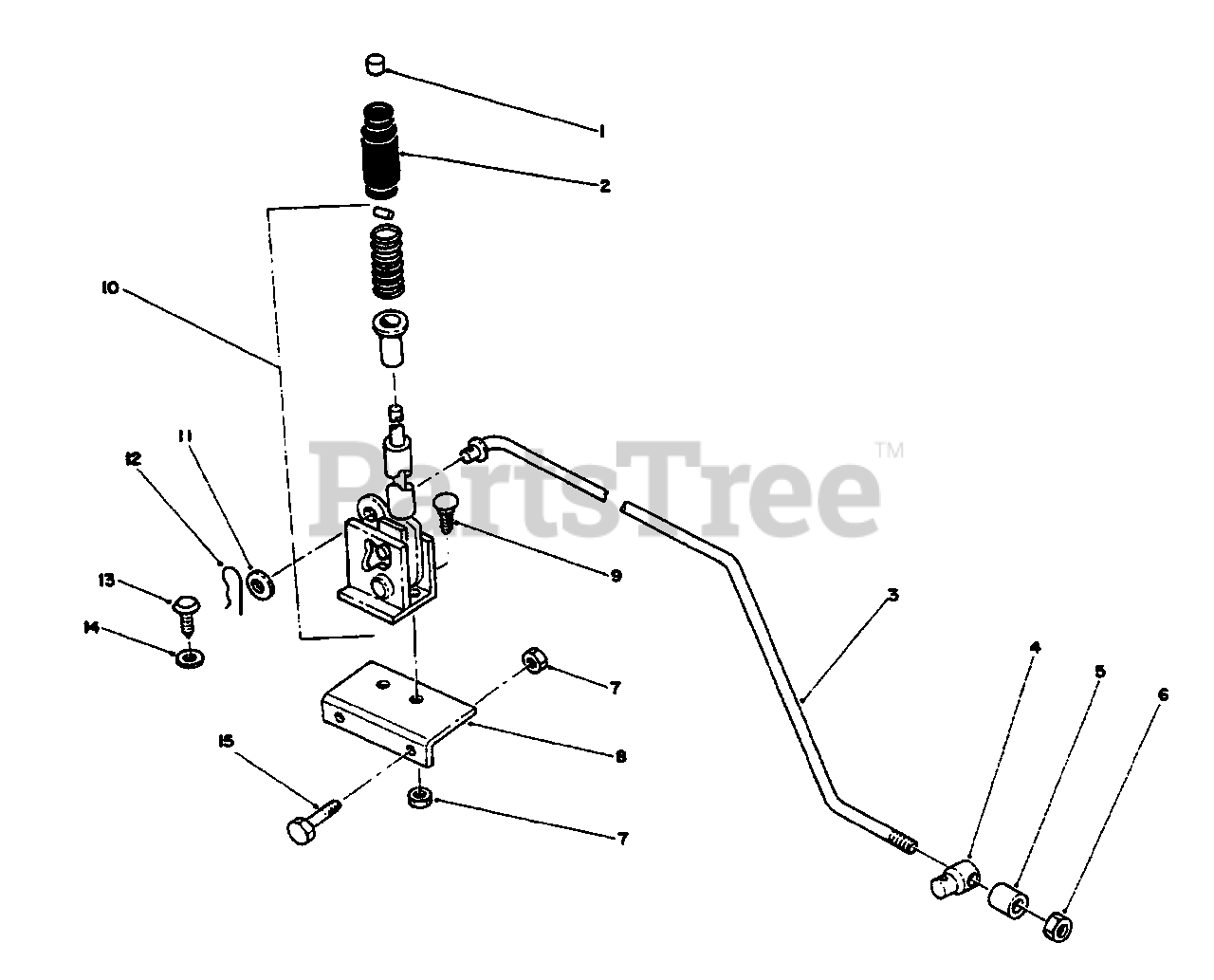

LIFT ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105316

Cap

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 6542

Grip

$16.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 88-0980

Rod-Lift

$

$

Not available

4

Lawn-Boy 102213

Trunnion

$78.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 111580

Spacer
(Superseded to 92-6036)

$9.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 3296-23

Nut-Lock

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 88-0950

Bracket-Support
(Superseded to 88-0950-03)

$58.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3230-2

Bolt-Carriage

$1.49

$

In Stock, Qty 14

0

10

Lawn-Boy 112349

Handle-Lift

$

$

Not available

11

Lawn-Boy 3256-26

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 933512

Cotter-Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

13

Lawn-Boy 88-1080

Fastener-Footpad

$9.49

$

In Stock, only 4 left!

0

14

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0
