79108 - Toro 44" Recycler Mower Deck for XL Series Tractors (SN: 079000001 - 079999999) (1997) BELT & DECAL ASSEMBLY Parts Diagram

44" Recycler Mower Deck for XL Series Tractors

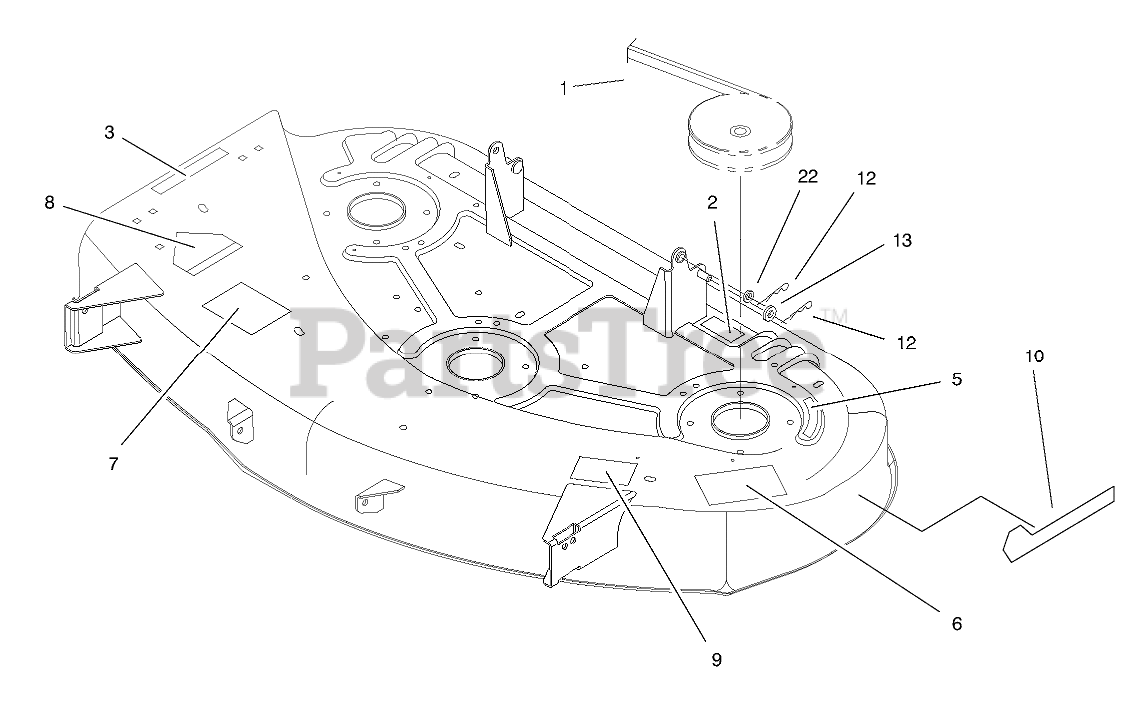

BELT & DECAL ASSEMBLY Parts Diagram

  • Title
1

Toro 93-3884

V BELT-DECK

$89.99

$

In Stock, only 4 left!

0

2

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

3

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

5

Toro 68-3660

DECAL-DANGER, SHIELD

$12.99

$

In Stock, only 1 left!

0

6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

7

Toro 93-3777

DECAL-INSTALL, BELT

$6.99

$

Usually ships in 3-6 days

0

8

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

9

Toro 93-7282

DECAL-ADJUSTMENT, WHEEL

$8.49

$

In Stock, only 1 left!

0

10

Toro 93-3776

DECAL - RECYCLER DECK

$

$

Not available

12

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

13

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
