79105 - Toro 44" Recycler Mower Deck (SN: 069000001 - 069999999) (1996) DECK ASSEMBLY Parts Diagram

44" Recycler Mower Deck

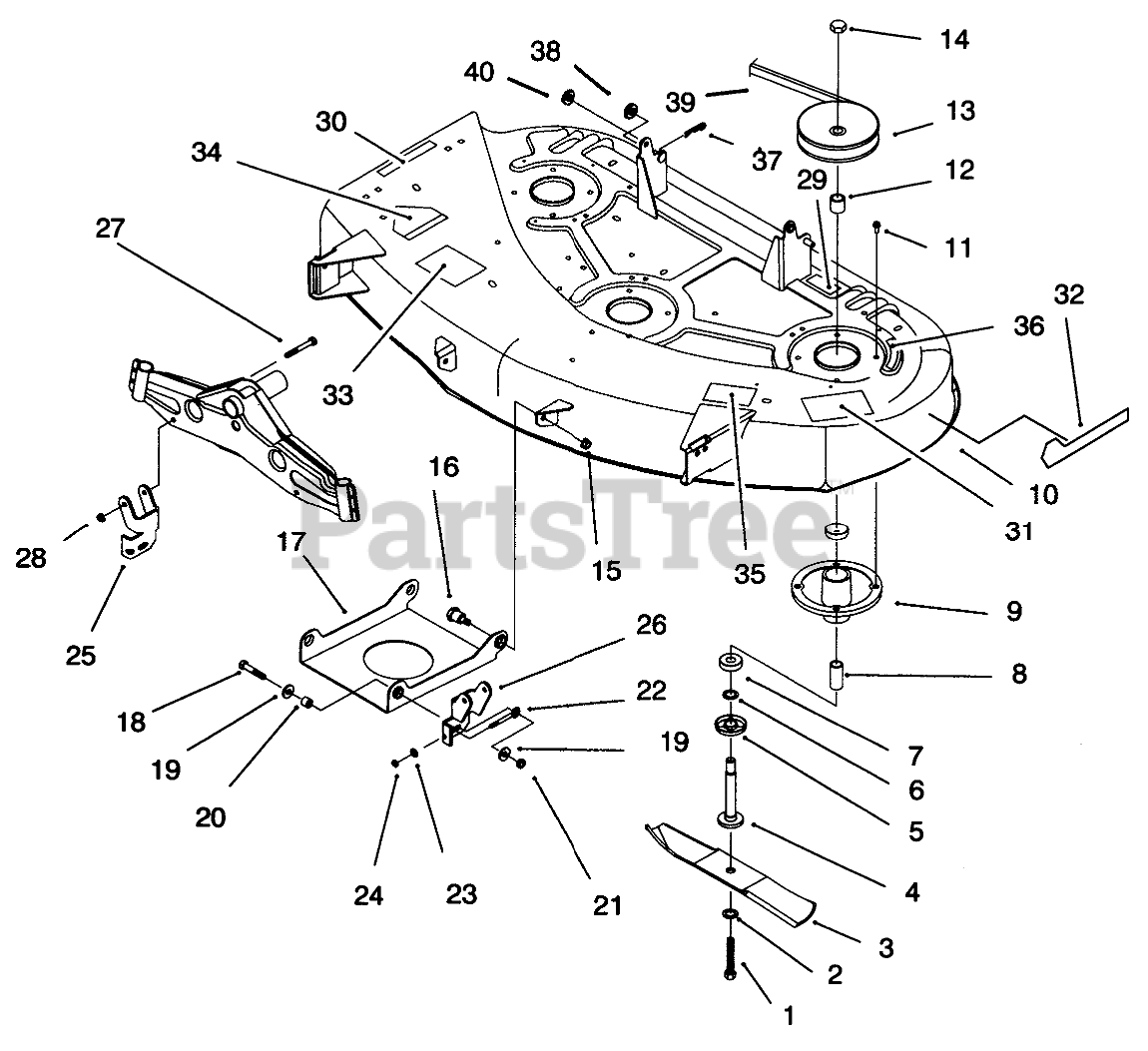

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

2

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 92-7952

Blade-Recycler
(Superseded to 92-7952-03)

$37.99

$

In Stock, only 1 left!

0

4

Toro 80-4342

SHAFT-SPINDLE

$112.99

$

In Stock, only 2 left!

0

5

Toro 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 19

0

6

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

7

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

8

Toro 62-3661

SPACER

$16.99

$

In Stock, Qty 15

0

9

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 14

0

10

Toro 93-3825

Deck Assembly
(Superseded to 95-6107)

$

$

Not available

11

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

12

Toro 88-5360

SPACER

$10.99

$

In Stock, only 3 left!

0

13

Toro 88-5330

PULLEY

$122.99

$

In Stock, only 2 left!

0

14

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

$36.99

$

Usually ships in 3-6 days

0

17

Toro 93-3881

Pan-Front Deck Susp.
(Superseded to 93-3881-03)

$

$

Not available

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

20

Toro 93-9847

SPACER

$9.49

$

In Stock, only 2 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 61-9980

SCREW-ADJUSTING

$9.49

$

In Stock, only 1 left!

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 93-9849

Bracket-Deck R.H.
(Superseded to 93-9849-03)

$

$

Not available

26

Toro 93-9848

Bracket-Deck L.H.
(Superseded to 93-9848-03)

$

$

Not available

27

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

30

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

31

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

32

Toro 93-3776

DECAL - RECYCLER DECK

$

$

Not available

33

Toro 93-3777

DECAL-INSTALL, BELT

$6.99

$

Usually ships in 3-6 days

0

34

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

35

Toro 93-7282

DECAL-ADJUSTMENT, WHEEL

$8.49

$

In Stock, only 1 left!

0

36

Toro 68-3660

DECAL-DANGER, SHIELD

$12.99

$

In Stock, only 1 left!

0

37

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

38

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

39

Toro 93-3884

V BELT-DECK

$89.99

$

In Stock, only 4 left!

0

40

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
