79104 - Toro 44" Vacuum Bagger (SN: 310000001 - 310999999) (2010) 44 INCH DECK COMPONENT ASSEMBLY Parts Diagram

44" Vacuum Bagger

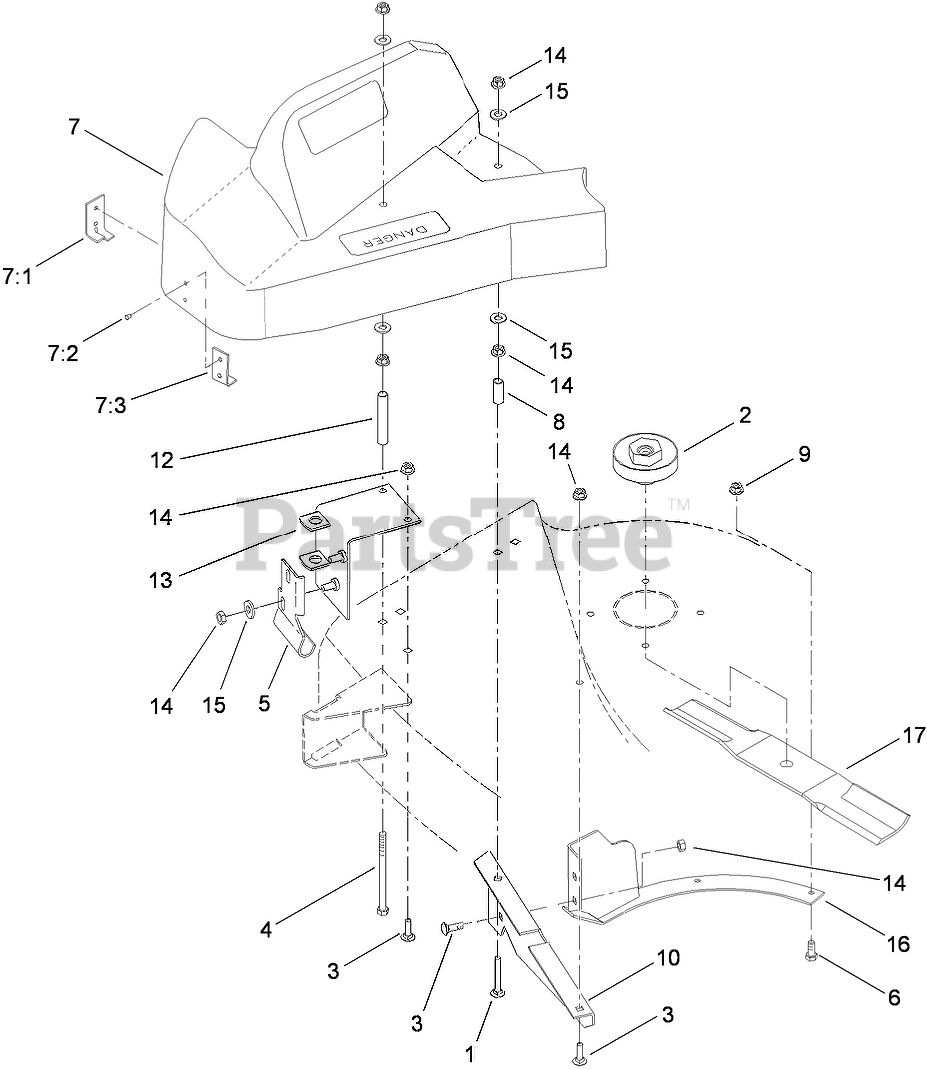

44 INCH DECK COMPONENT ASSEMBLY Parts Diagram

  • Title
1

Toro 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

2

Toro 93-8008

PULLEY

$112.99

$

Usually ships in 3-6 days

0

3

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

4

Toro 100-4184

SCREW-CARR

$16.99

$

Usually ships in 3-6 days

0

5

Toro 93-9344-03

Bracket-Pivot

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 94-4380

BELT SHIELD ASM

$

$

Not available

7:1

Toro 93-8022

BRACKET-SUPPORT, SHIELD

$

$

Not available

7:2

Toro 79-0470

RIVET-POP

$

$

Not available

7:3

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

8

Toro 93-8009

TUBE-LATCH

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 100-4188-03

BAFFLE-REAR

$

$

Not available

12

Toro 93-8023

TUBE-SPACER

$

$

Not available

13

Toro 93-8020-03

Pivot-Bracket

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 100-4189-03

RING-BAGGING, RH

$

$

Not available

17

Toro 55-4940-03

BLADE-LIFT, HIGH

$38.99

$

In Stock, only 1 left!

0
