79104 - Toro 44" Vacuum Bagger (SN: 200000001 - 200999999) (2000) BLOWER HOUSING ASSEMBLY Parts Diagram

44" Vacuum Bagger

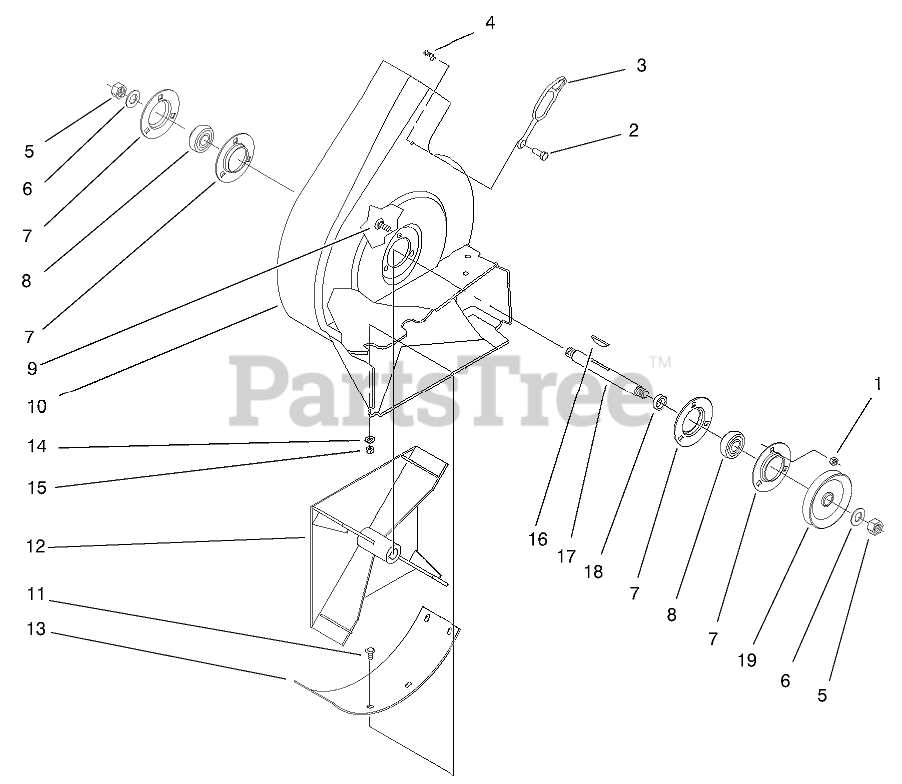

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 3290-479

FASTENER-PANEL

$3.99

$

In Stock, Qty 20+

0

3

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 8

0

4

Toro 22-9741

SPACER-INTERLOCK

$2.99

$

In Stock, Qty 6

0

5

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 251-341

FLANGE

$16.99

$

In Stock, only 2 left!

0

8

Toro 251-288

BEARING-BALL

$98.99

$

In Stock, only 3 left!

0

9

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

10

Toro 94-4378

HOUSING-BLOWER
(Superseded to 110-6552)

$357.99

$

Usually ships in 3-6 days

0

11

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

12

Toro 79-4300-03

IMPELLER ASM

$473.99

$

Usually ships in 3-6 days

0

13

Toro 79-7170-03

Cover-Blower, Bottom

$29.99

$

In Stock, only 2 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

17

Toro 79-1470

SHAFT-BLOWER

$62.99

$

Usually ships in 3-6 days

0

18

Toro 7038

Spacer

$9.99

$

Usually ships in 3-6 days

0

19

Toro 79-1460

PULLEY-BLOWER

$68.99

$

Usually ships in 3-6 days

0
