79104 - Toro 44" Vacuum Bagger (SN: 069000001 - 069999999) (1996) PULLEY & SHIELD ASSEMBLY Parts Diagram

44" Vacuum Bagger

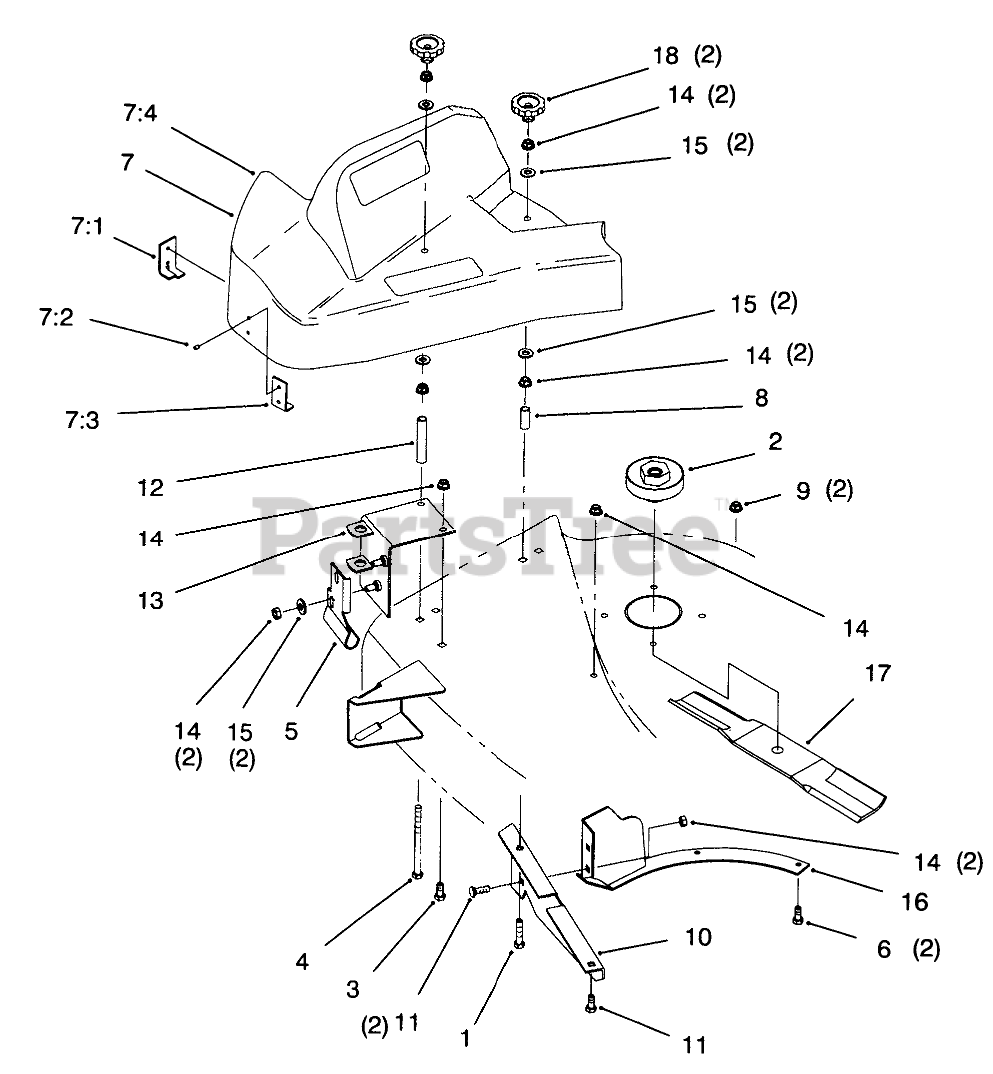

PULLEY & SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

2

Toro 93-8008

PULLEY

$99.99

$

Usually ships in 3-6 days

0

3

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

4

Toro 3230-30

SCREW-CARR

$11.99

$

In Stock, only 2 left!

0

5

Toro 93-9344

BRACKET - PIVOT BLACK
(Superseded to 93-9344-03)

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 94-4380

BELT SHIELD ASM

$

$

Not available

7:1

Toro 93-8022

BRACKET-SUPPORT, SHIELD

$

$

Not available

7:2

Toro 79-0470

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

7:3

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$11.99

$

Usually ships in 3-6 days

0

7:4

Toro 94-4381

Shield-Belt

$

$

Currently unavailable

8

Toro 93-8009

TUBE-LATCH

$21.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 56-5170

Baffle-Rear
(Superseded to 56-5170-01)

$

$

Not available

11

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

12

Toro 93-8023

TUBE-SPACER

$

$

Not available

13

Toro 93-8020

WA - PIVOT BRACKET
(Superseded to 93-8020-03)

$162.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 93-8006

BAGGING RING RH-WELDED B

$

$

Not available

17

Toro 55-4940

Blade
(Superseded to 55-4940-03)

$34.99

$

In Stock, only 1 left!

0

18

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0
