79102 - Toro 44" Vacuum Bagger (SN: 059000001 - 059999999) (1995) IDLER ASSEMBLY Parts Diagram

44" Vacuum Bagger

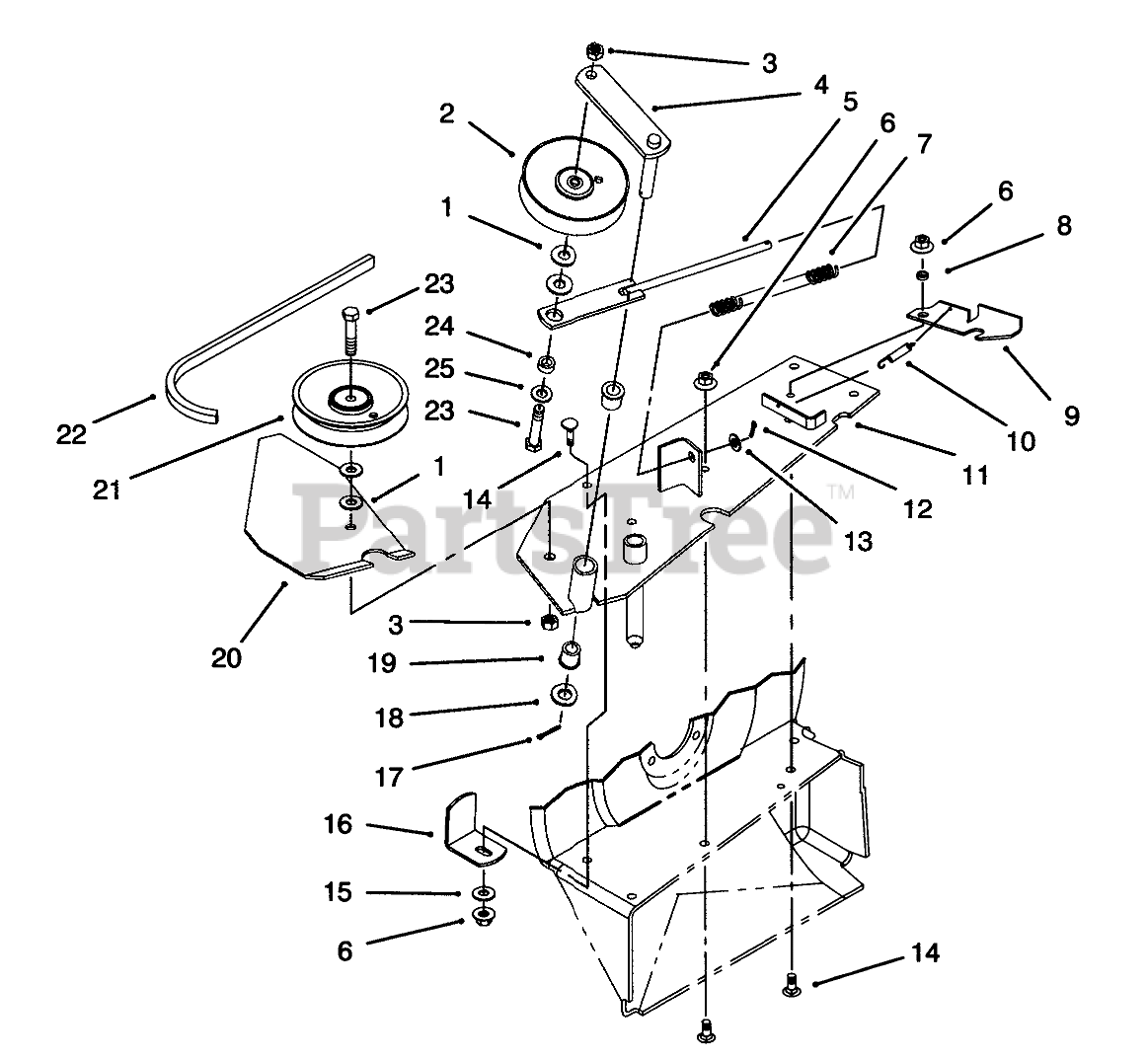

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

2

Toro 92-7099

PULLEY-IDLER

$72.99

$

In Stock, only 2 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 79-1970

IDLER ARM ASM

$

$

Not available

5

Toro 79-2020

SPRING-ROD

$67.99

$

Usually ships in 3-6 days

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 79-7110

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

8

Toro 93-8013

BUSHING

$5.49

$

Usually ships in 3-6 days

0

9

Toro 93-8012

LATCH - BLOWER B
(Superseded to 93-8012-03)

$

$

Not available

10

Toro 79-7390

SPRING-EXTENSION

$24.99

$

Usually ships in 3-6 days

0

11

Toro 93-8016

BLOWER MOUNTING-WELDED B
(Superseded to 93-8016-03)

$

$

Not available

12

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 79-7440

BRACKET-SUPPORT, HOUSING

$

$

Not available

17

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 100284

BUSHING

$

$

Not available

20

Toro 79-7280

SHIELD SUPPORT B
(Superseded to 79-7280-03)

$

$

Not available

21

Toro 93-1622

PULLEY-IDLER

$44.99

$

In Stock, Qty 20+

0

22

Toro 93-8007

BELT-V

$121.99

$

Usually ships in 3-6 days

0

23

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 107213

SPACER

$11.99

$

In Stock, only 1 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
