79102 - Toro 44" Vacuum Bagger (SN: 059000001 - 059999999) (1995) BLOWER & IMPELLER ASSEMBLY Parts Diagram

44" Vacuum Bagger

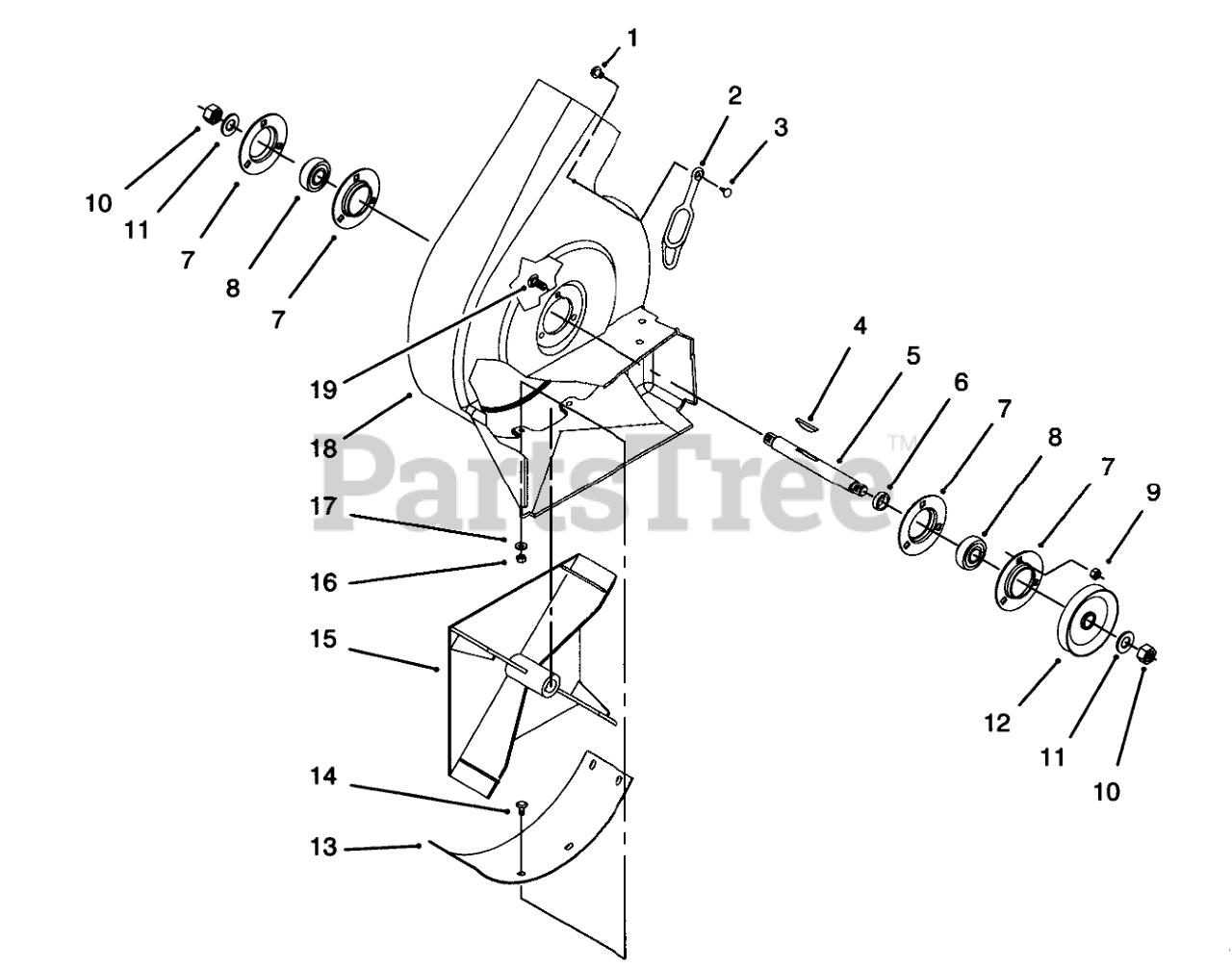

BLOWER & IMPELLER ASSEMBLY Parts Diagram

  • Title

1

Toro 22-9741

SPACER-INTERLOCK

$3.99

$

In Stock, Qty 6

0

2

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 8

0

3

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

4

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

5

Toro 79-1470

SHAFT-BLOWER

$74.99

$

Usually ships in 3-6 days

0

6

Toro 7038

Spacer

$12.99

$

Usually ships in 3-6 days

0

7

Toro 251-341

FLANGE

$20.99

$

In Stock, only 2 left!

0

8

Toro 251-288

BEARING-BALL

$105.99

$

In Stock, only 3 left!

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

11

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 79-1460

PULLEY-BLOWER

$81.99

$

Usually ships in 3-6 days

0

13

Toro 79-7170

COVER-BLOWER, BOTTOM
(Superseded to 79-7170-03)

$36.99

$

In Stock, only 2 left!

0

14

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 10

0

15

Toro 79-4300

Impeller
(Superseded to 79-4300-03)

$581.99

$

Usually ships in 3-6 days

0

16

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 93-8005

HOUSING-VAC, BLOWER
(Superseded to 110-6552)

$

$

Not available

19

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0
