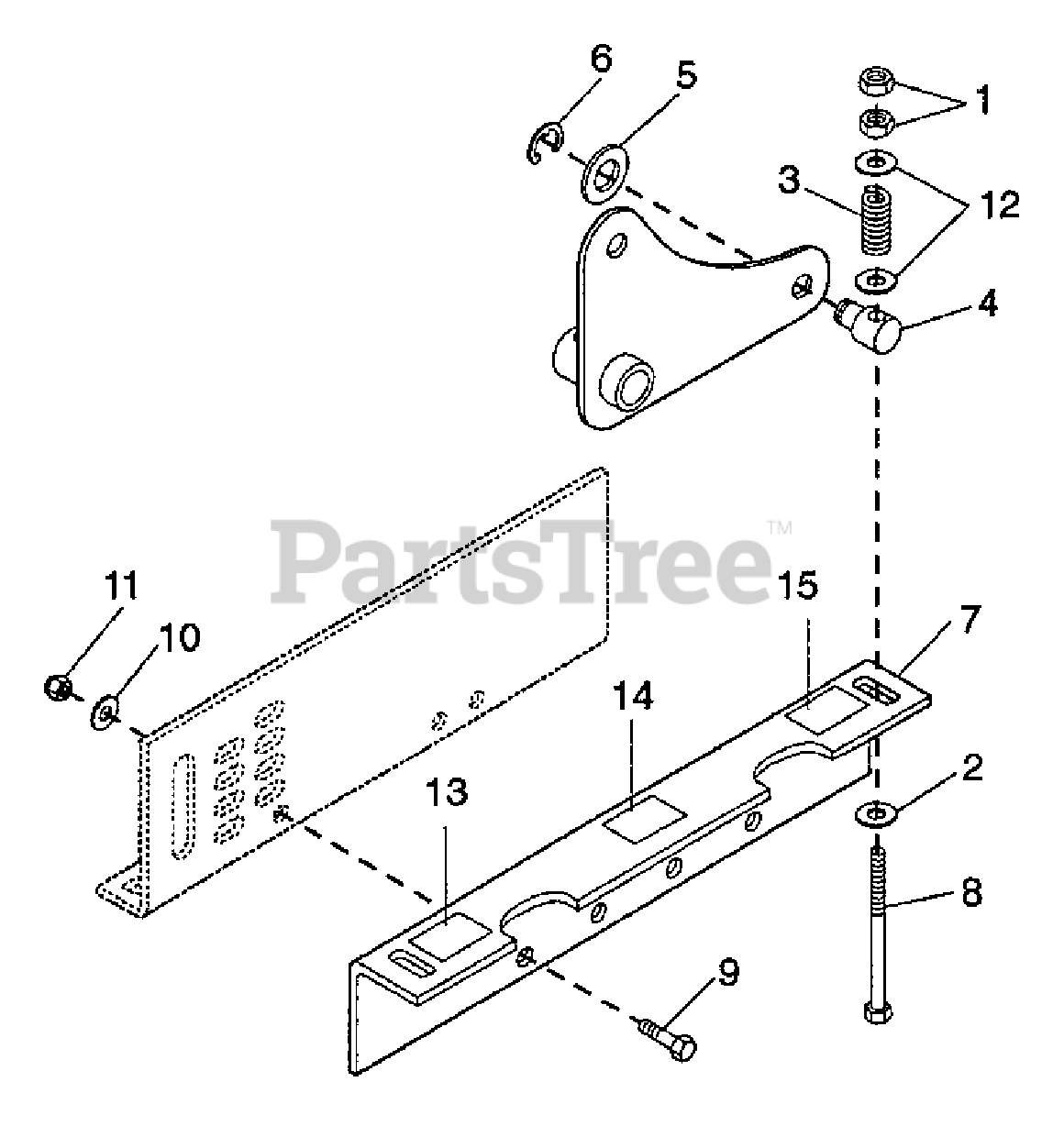

791001 - Gravely 50" Deck Electric, Hydraulic Lift Kit for PM100 Deck Suspension Parts Diagram

50" Deck Electric, Hydraulic Lift Kit for PM100

Deck Suspension Parts Diagram

  • Title

1

Gravely 06501700

Nut-Jam .50-13 Grade 2
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06412000

Washer-Flat-Steel .563 x 1.375 x .109
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

3

Gravely 08327000

Spring-Compression .125 x .78 x 1.00

$15.99

$

In Stock, only 2 left!

0

4

Gravely 09212700

Pivot, Mower Lift

$

$

Not available

5

Gravely 06400400

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 05707400

Ring-Retaining-External .750 x .050

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 09111000

Lift Bracket

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05938500

Bolt-Hex .50-13 x 6.50
(Superseded to 05964400)

$7.99

$

In Stock, only 3 left!

0

9

Gravely 05915100

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

10

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06429500

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05350200

Decal, Warning Eye

$31.99

$

Usually ships in 4-12 days

0

14

Gravely 05350300

Decal, Danger Hand

$31.99

$

Usually ships in 4-12 days

0

15

Gravely 07893700

Decal - Warning

$17.99

$

Usually ships in 4-12 days

0
