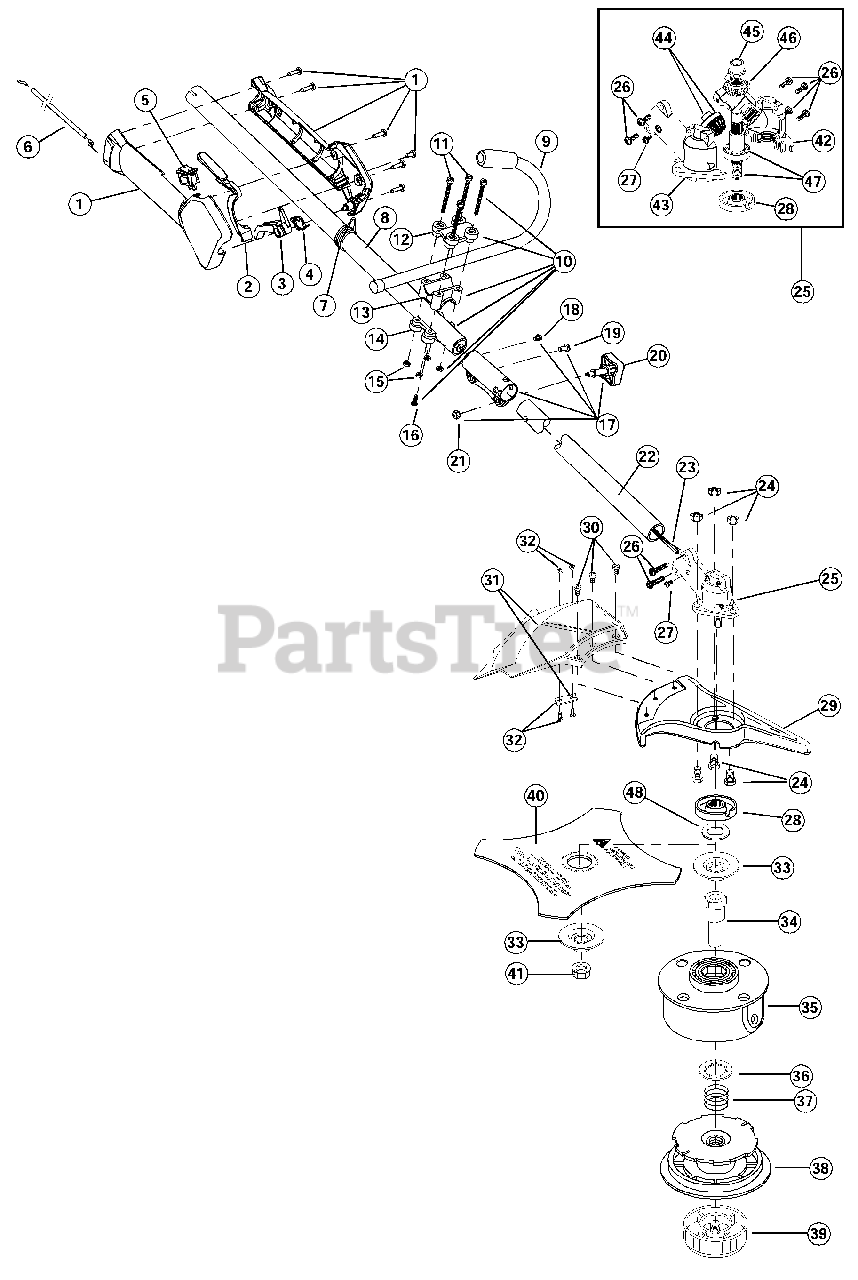

790r (41ED790A034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04024

Throttle Housing
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-182802

Throttle Trigger Lock-Out
(Superseded to 753-04340)

$

$

Not available

3

MTD 791-182803

Throttle Trigger
(Superseded to 753-04119)

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

6

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

7

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

8

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

9

MTD 791-181099

J-Handle Assembly

Note: (includes 10)

$

$

Not available

10

MTD 791-683295

Handle Bracket Assembly

Note: (includes 11-15)

$45.99

$

Usually ships in 3-6 days

0

11

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

15

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

16

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

17

MTD 791-181616

EZ-Link Coupler

Note: (includes 18-21)

$

$

Currently unavailable

18

MTD 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

19

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

20

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

21

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

22

MTD 791-180804

Lower Drive Shaft Housing Assembly

$

$

Not available

23

MTD 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

24

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

25

MTD 791-182193

2 piece Gearbox Assembly

Note: (includes 26-28, 33 & 42-47)

$99.99

$

In Stock, only 2 left!

0

26

MTD 791-182195

Screws

$7.49

$

In Stock, Qty 20+

0

27

MTD 791-145569

Anti-Rotation Screws

$9.99

$

In Stock, Qty 7

0

28

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

29

MTD 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

30

MTD 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

31

MTD 791-683299

Shield Assembly

Note: (includes 32)

$

$

Not available

32

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

33

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

34

MTD 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

35

MTD 791-683301

Outer Spool & Eyelet Assembly

$48.99

$

In Stock, Qty 6

0

36

MTD 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

37

MTD 791-610636

Spring
(Superseded to 791-610636B)

$10.99

$

In Stock, only 2 left!

0

38

MTD 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

39

MTD 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

40

MTD 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, only 3 left!

0

41

MTD 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

MTD 791-180014

Blade Retaining Kit

Note: (includes 33 & 41); Item not shown

$

$

Currently unavailable

MTD 791-613226

Locking Rod Tool

Note: Item not shown

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Item not shown

$38.99

$

Usually ships in 3-6 days

0

42

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Part - Item 25

$

$

Not available

43

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Part - Item 25

$

$

Not available

44

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Part - Item 25

$31.99

$

Usually ships in 3-6 days

0

45

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Part - Item 25

$

$

Not available

46

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Part - Item 25

$

$

Not available

47

MTD 791-182197

Output Shaft Assembly

Note: (includes 45 & 46); 2 Piece Gearbox Assembly Part - Item 25

$

$

Not available

48

MTD 753-04348

Palnut

Note: 2 Piece Gearbox Assembly Part - Item 25

$6.99

$

In Stock, only 3 left!

0

MTD 791-147498

Bump Head Assembly

Note: Optional Accessory; Item not shown

$117.99

$

In Stock, only 1 left!

0

MTD 791-180120

Replacement Line, 0.095
(Superseded to 953-1156)

Note: Optional Accessory; Item not shown

$31.99

$

In Stock, only 1 left!

0

MTD 791-147345

Reel and Line Assembly

Note: Optional Accessory; Item not shown

$

$

Currently unavailable
