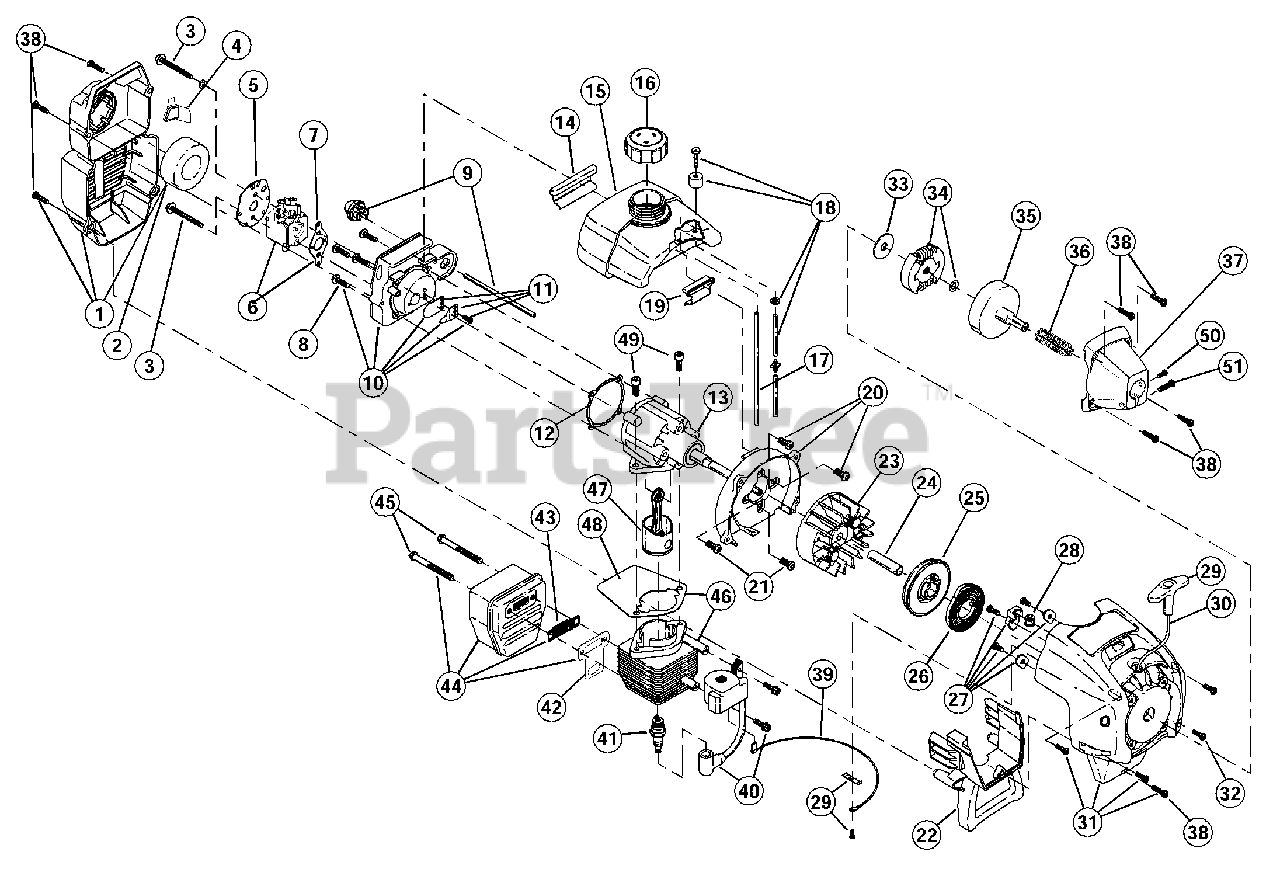

790r (41DD790A034) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-1192

Carburetor/Air Cleaner Cover Assembly

Note: (includes 2)

$

$

Not available

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-04227

Choke Lever

$

$

Not available

5

MTD 753-04228

Choke Plate

$

$

Currently unavailable

6

MTD 753-04229

Carburetor Assembly

Note: (includes 20)

$

$

Not available

7

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 17

0

10

MTD 753-1196

Carb Mount Assembly

Note: (includes 8, 11 & 12)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 753-04129

Crank Case Service Assembly

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 791-181438

Fuel Tank Assembly

Note: (includes 15-18)

$

$

Not available

16

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 10

0

17

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 19

0

18

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 10

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 791-153520

Shroud Assembly

$

$

Not available

21

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

22

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-181065

Spacer

$

$

Not available

25

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

28

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

29

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

30

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-181797

Starter Housing Assembly

Note: (includes 25-30 & 33)

$

$

Not available

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

33

MTD 791-181074

Clutch Washer

$

$

Not available

34

MTD 791-181445

Clutch Rotor Assembly

$46.99

$

Usually ships in 3-6 days

0

35

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

MTD 791-612468

Spring

$

$

Not available

37

MTD 791-182797

Clutch Cover Assembly
(Superseded to 753-04889)

Note: (includes 38 & 50)

$21.99

$

Usually ships in 3-6 days

0

38

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

39

MTD 791-182798

Wire Lead

$

$

Not available

40

MTD 753-1205

Module Assembly

$103.99

$

Usually ships in 3-6 days

0

41

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 2 left!

0

42

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 3 left!

0

43

MTD 791-182747

Spark Arrestor

$

$

Not available

44

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 42, 43 & 45)

$112.99

$

Usually ships in 3-6 days

0

45

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

46

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 48 & 49)

$83.99

$

In Stock, only 1 left!

0

47

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

48

MTD 753-1197

Cylinder Gasket

$

$

Not available

49

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

50

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

51

MTD 791-181345

Clamping Screw

$4.49

$

In Stock, Qty 20+

0

MTD 753-04134

Engine Gasket Kit

Note: Item not shown

$

$

Not available

MTD 791-180090

O.E.M. Carburetor Repair Kit

Note: Item not shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit

Note: Item not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Item not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-1210

Short Block Assembly

Note: (includes 13, 44, 48-51); Item not shown

$

$

Not available

MTD 791-181501

Starter Housing Screw Set

Note: Item not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Item not shown

$11.99

$

Usually ships in 3-6 days

0
