79086 - Toro 32" Twin Bagger for Mower/XL (SN: 079000001 - 079999999) (1997) GRASS CATCHER ASSEMBLY Parts Diagram

32" Twin Bagger for Mower/XL

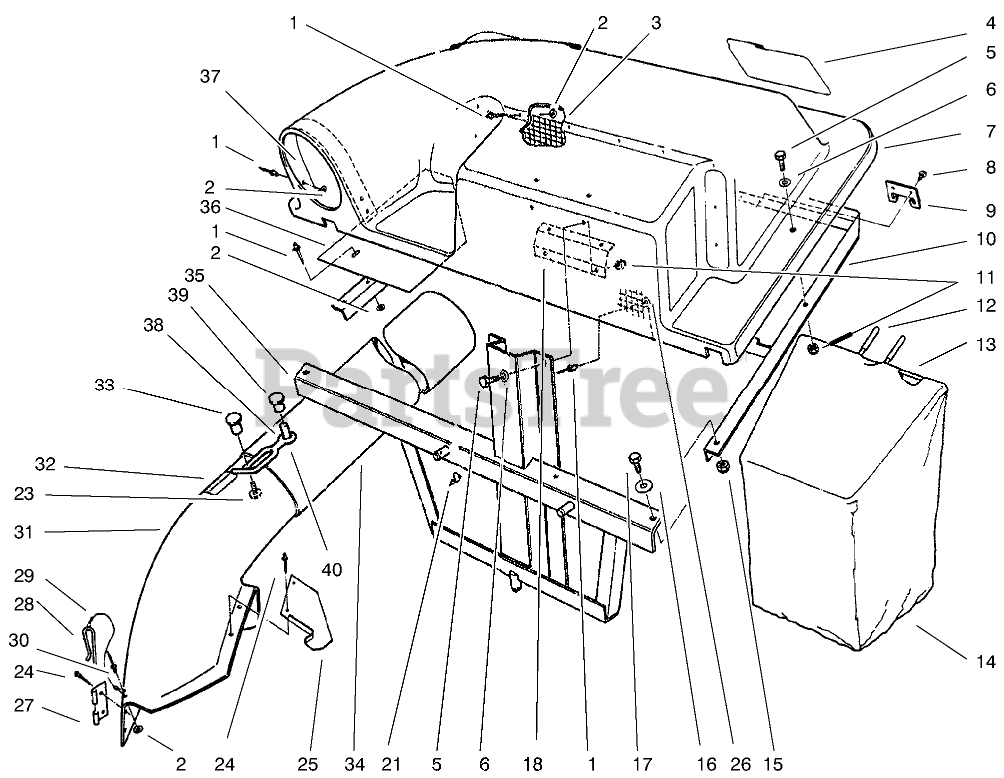

GRASS CATCHER ASSEMBLY Parts Diagram

  • Title

1

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

2

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

3

Toro 61-9890

SCREEN

$51.99

$

Usually ships in 3-6 days

0

4

Toro 62-3640

DECAL-BAGGER, TWIN

$37.99

$

Usually ships in 3-6 days

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 61-9790

COVER-BAGGER, TWIN

$563.99

$

Usually ships in 3-6 days

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 61-9860

BRACKET-FRAME, BAG

$19.99

$

Usually ships in 3-6 days

0

10

Toro 61-9810

Cover-Frame
(Superseded to 61-9810-03)

$314.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 47-2550

GRIP-HANDLE, BAG

$4.99

$

Usually ships in 3-6 days

0

13

Toro 47-2620

Frame-Bag
(Superseded to 47-2620-03)

$90.99

$

In Stock, only 4 left!

0

14

Toro 47-2570

BAG

$117.99

$

In Stock, only 2 left!

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 61-9880

Plate-Backup
(Superseded to 61-9880-03)

$30.99

$

Usually ships in 3-6 days

0

21

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

23

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

25

Toro 33-2090

CHUTE SUPT BRKT

$

$

Not available

27

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

28

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

29

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

30

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

31

Toro 28-8060

Assembly-Chute (Incl. Ref. #23-30 & 32-33)

$

$

Not available

32

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

33

Toro 233-68

KNOB

$8.49

$

Usually ships in 3-6 days

0

34

Toro 68-3044

GRASS DISCHARGE TUBE

$

$

Not available

35

Toro 61-9900

Frame-Mounting
(Superseded to 61-9900-03)

$723.99

$

Usually ships in 3-6 days

0

36

Toro 61-9870

Baffle
(Superseded to 61-9870-03)

$98.99

$

Usually ships in 3-6 days

0

37

Toro 62-6890

Support Inlet
(Superseded to 62-6890-03)

$51.99

$

Usually ships in 3-6 days

0

38

Toro 22-9741

SPACER-INTERLOCK

$3.49

$

In Stock, Qty 6

0

39

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

40

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 7

0

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$58.99

$

In Stock, only 3 left!

0

Toro 12-7049

Loose Parts

$36.99

$

Usually ships in 3-6 days

0
