78953 (3000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) RH HYDRO ASSEMBLY NO. 116-6418 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

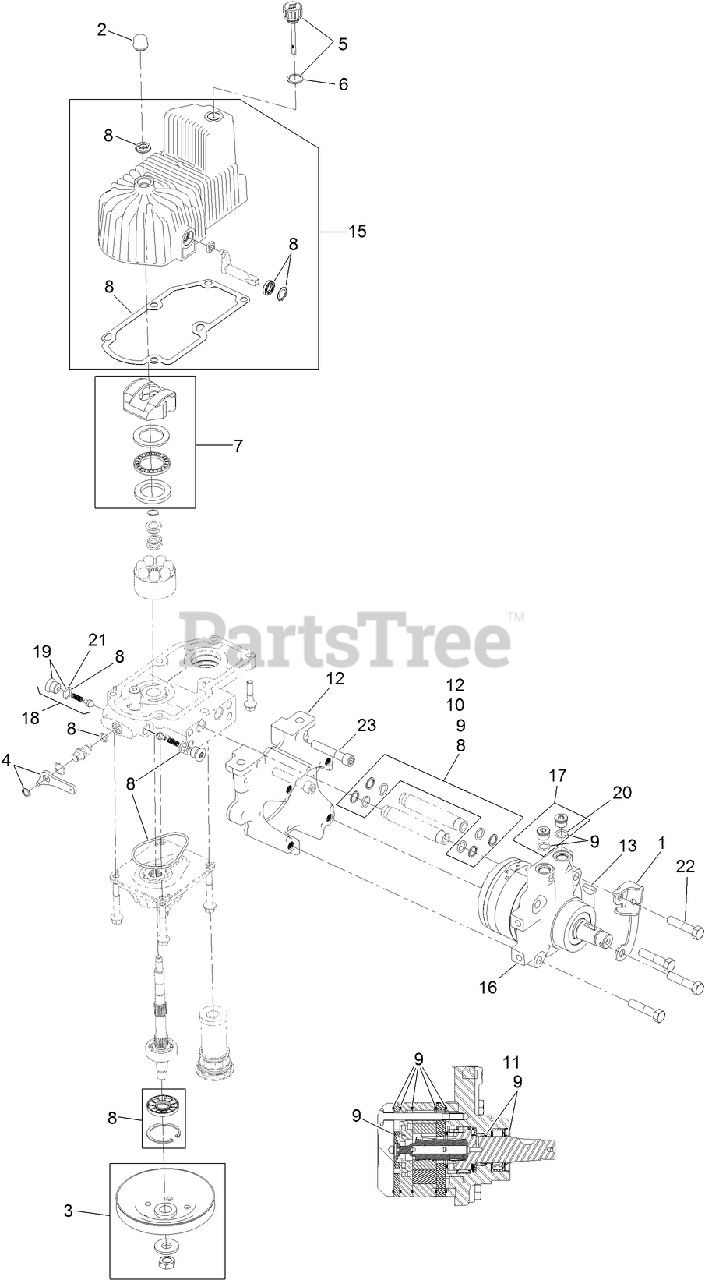

RH HYDRO ASSEMBLY NO. 116-6418 Parts Diagram

  • Title
1

Toro 116-6859

BRACKET-ANCHOR, CABLE

$20.99

$

Usually ships in 3-6 days

0

2

Toro 116-3052

COVER-SHAFT, HYDRO

$17.99

$

In Stock, only 3 left!

0

3

Toro 116-0234

PULLEY KIT

$172.99

$

Usually ships in 3-6 days

0

4

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

$15.99

$

Usually ships in 3-6 days

0

5

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

$50.99

$

In Stock, only 4 left!

0

6

Toro 116-0237

GASKET-DIPSTICK, HYDRO

$14.99

$

In Stock, only 2 left!

0

7

Toro 116-1367

SWASH BLOCK KIT

$505.99

$

Usually ships in 3-6 days

0

8

Toro 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$152.99

$

In Stock, Qty 8

0

9

Toro 116-1369

MOTOR SEAL KIT

$269.99

$

Usually ships in 3-6 days

0

10

Toro 116-1370

TUBE SEAL KIT

$30.99

$

In Stock, only 1 left!

0

11

Toro 116-1371

OUTPUT SHAFT SEAL KIT

$139.99

$

In Stock, only 1 left!

0

12

Toro 116-5469

NOSE CUP-UHT

$295.99

$

Usually ships in 3-6 days

0

13

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

15

Toro 116-3288

Housing-RH
(Superseded to 142-4461)

$683.99

$

Usually ships in 3-6 days

0

16

Toro 116-8916

MOTOR-HYDRAULIC RH 240CC

$1618.99

$

Usually ships in 3-6 days

0

17

Toro 116-7901

MAGNETIC PLUGS SERVICE KIT

$99.99

$

Usually ships in 3-6 days

0

18

Toro 116-1630

CHECK VALVE ASM

$52.99

$

Usually ships in 3-6 days

0

19

Toro 116-1631

PLUG-CHECK (W/O-RING)

$48.99

$

Usually ships in 3-6 days

0

20

Toro 76-1900

O-RING

$4.49

$

Usually ships in 3-6 days

0

21

Toro 116-8662

O-RING-CHECK VALVE

$2.99

$

In Stock, Qty 20+

0

22

Toro 116-8974

SCREW HH

$5.49

$

In Stock, only 3 left!

0

23

Toro 116-8975

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

99

Toro 116-1373

FLOW TEST KIT

Note: Not illustrated

$1127.99

$

Usually ships in 3-6 days

0
