78953 (3000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

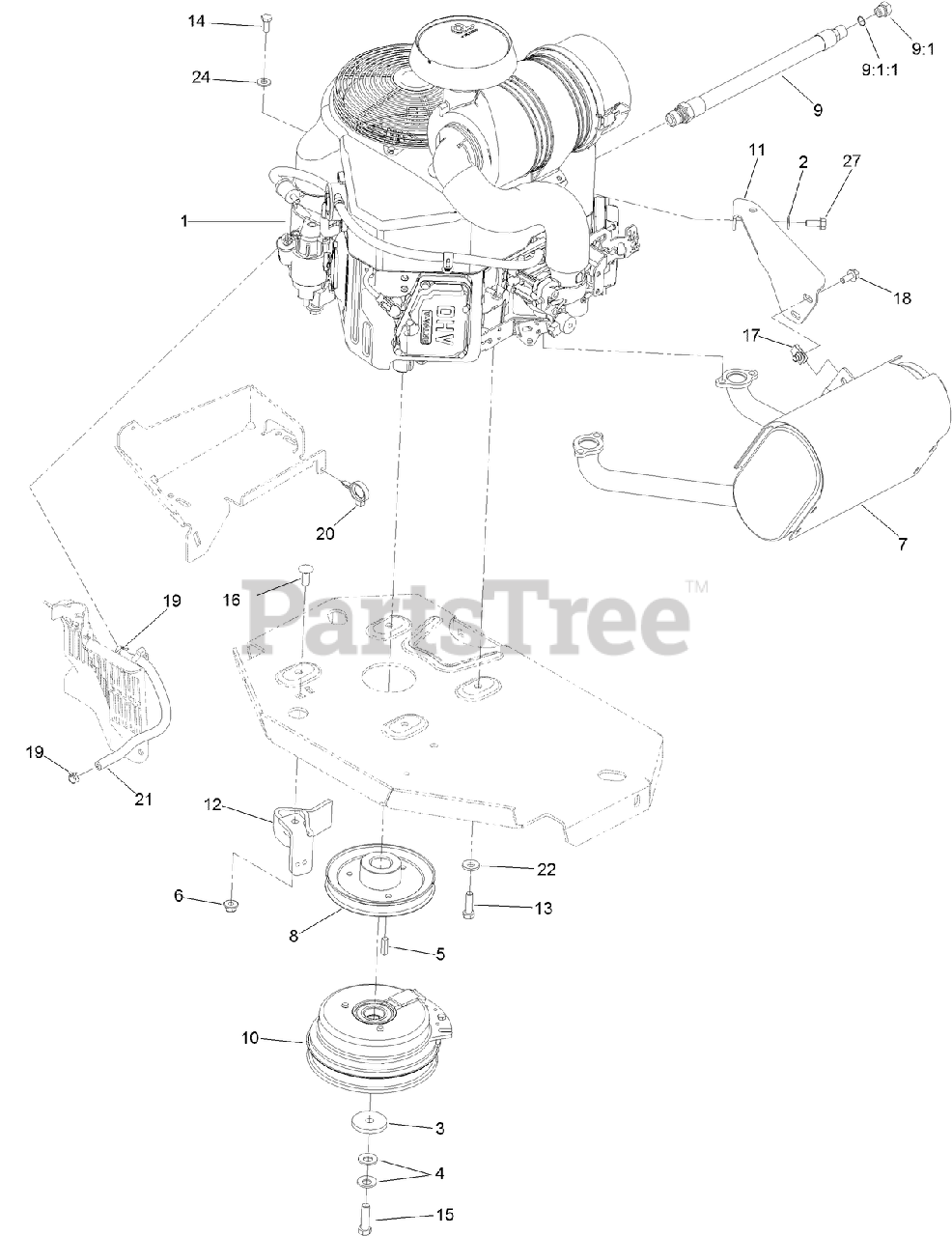

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FX691V-S12-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX691V-S12-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

3

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

4

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

$2.99

$

In Stock, only 2 left!

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 116-1715

MUFFLER

$251.99

$

Usually ships in 3-6 days

0

8

Toro 116-1946

SHEAVE-PUMP, DRIVE

$74.99

$

In Stock, only 1 left!

0

9

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$37.99

$

In Stock, Qty 5

0

9:1

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

9:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 116-1947

CLUTCH

$470.99

$

Usually ships in 3-6 days

0

11

Toro 116-1435

BRACKET-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

12

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

15

Toro 109-9761

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 6

0

16

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

18

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

19

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

21

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

22

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

27

Toro 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0
