78928 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) FENDER, CONSOLE AND CONTROL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

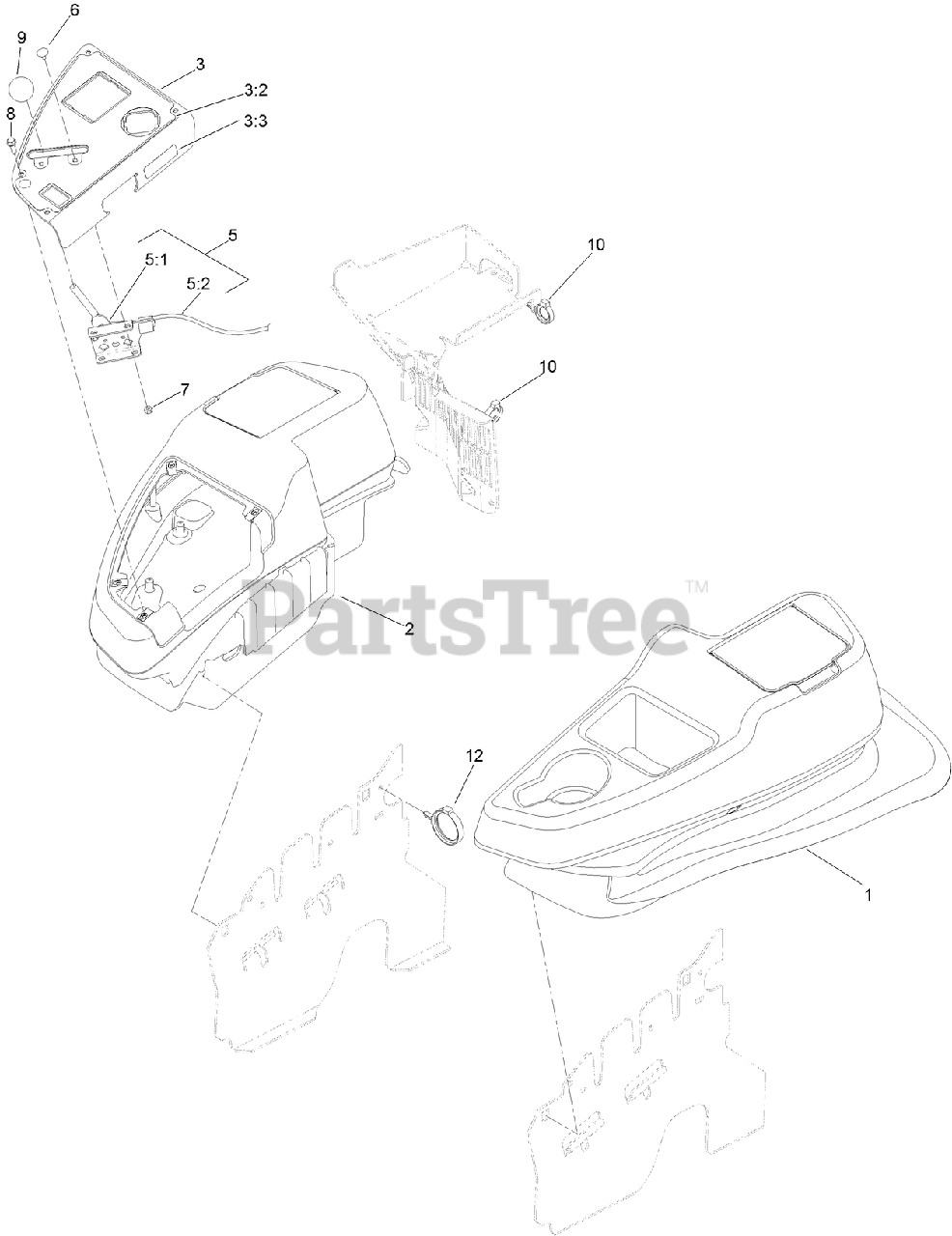

FENDER, CONSOLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-7401

LH CONSOLE ASM

$379.99

$

Usually ships in 3-6 days

0

2

Toro 115-7400

RH CONSOLE ASM

$379.99

$

Usually ships in 3-6 days

0

3

Toro 119-4232

CONTROL PANEL ASM

$208.99

$

Usually ships in 3-6 days

0

3:2

Toro 120-5899

DECAL-CONTROL PANEL

$43.99

$

Usually ships in 3-6 days

0

3:3

Toro 114-4466

DECAL-FUSES

$6.49

$

Usually ships in 3-6 days

0

5

Toro 115-2752

THROTTLE CONTROL ASM

$99.99

$

In Stock, only 3 left!

0

5:1

Toro 112-2334

LEVER-THROTTLE

$86.99

$

Usually ships in 3-6 days

0

5:2

Toro 115-3868

CABLE-THROTTLE
(Superseded to 115-2752)

$99.99

$

In Stock, only 3 left!

0

6

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

10

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

12

Toro 117-7817

CLAMP-HARNESS

$8.49

$

Usually ships in 3-6 days

0
