78926 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

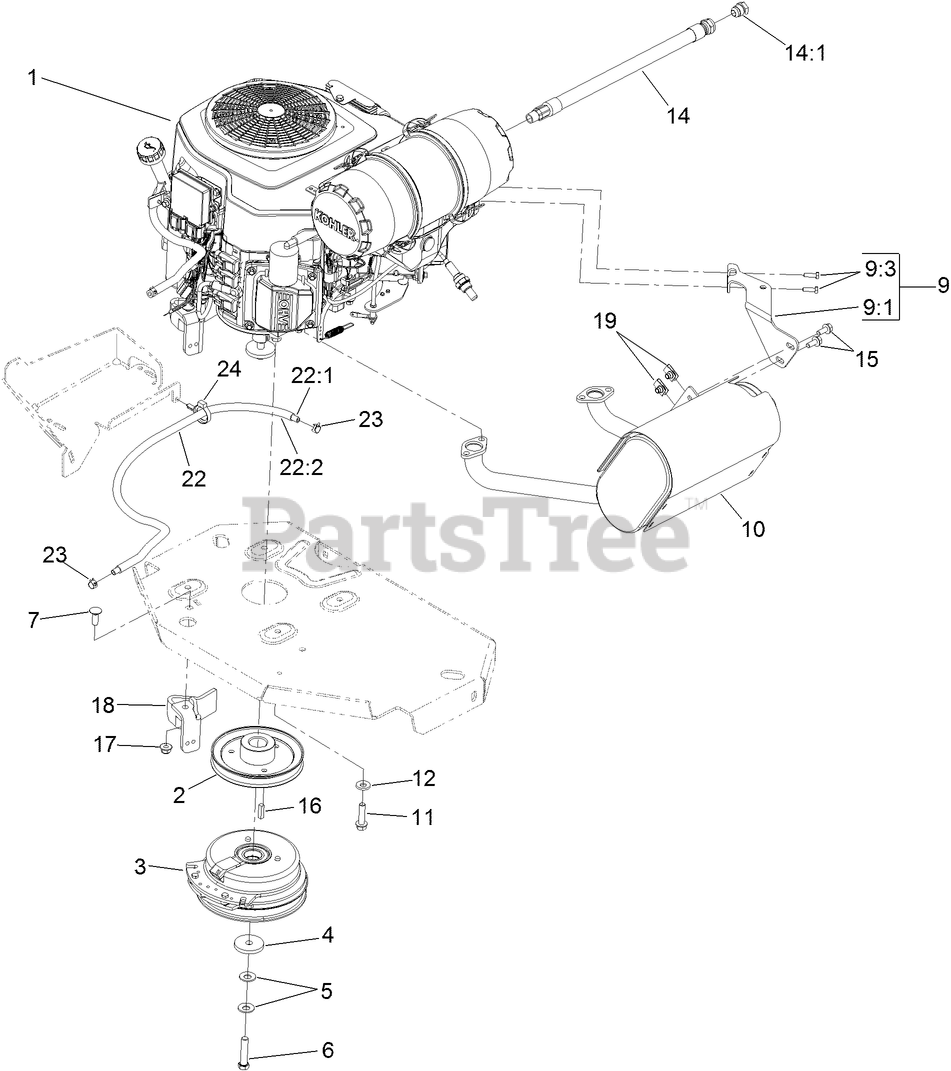

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KOHLER, PS-ECV749-3011

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER, PS-ECV749-3011

Note: Not serviced separately

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 9

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 9

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Toro 116-4297

MUFFLER BRACKET KIT

$75.99

$

In Stock, only 1 left!

0

9:1

Toro 116-3704

BRACKET-MUFFLER
(Superseded to 116-4297)

$75.99

$

In Stock, only 1 left!

0

9:3

Toro 116-4295

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

10

Toro 116-2038

MUFFLER
(Superseded to 142-6858)

$485.99

$

In Stock, Qty 9

0

11

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Toro 116-0013

OIL DRAIN HOSE ASM
(Superseded to 116-5316)

$54.99

$

In Stock, Qty 14

0

14:1

$8.49

$

Usually ships in 3-6 days

0

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

$2.49

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

22

Toro 117-3893

FUEL LINE ASM

$49.99

$

Usually ships in 3-6 days

0

22:1

Toro 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

22:2

Toro 117-3892

SLEEVE-THERMAL

$33.99

$

Usually ships in 3-6 days

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 104-2490

CLAMP-HOSE

$4.99

$

In Stock, only 2 left!

0
