78922 (6000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) FUEL TANK MOUNTING ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

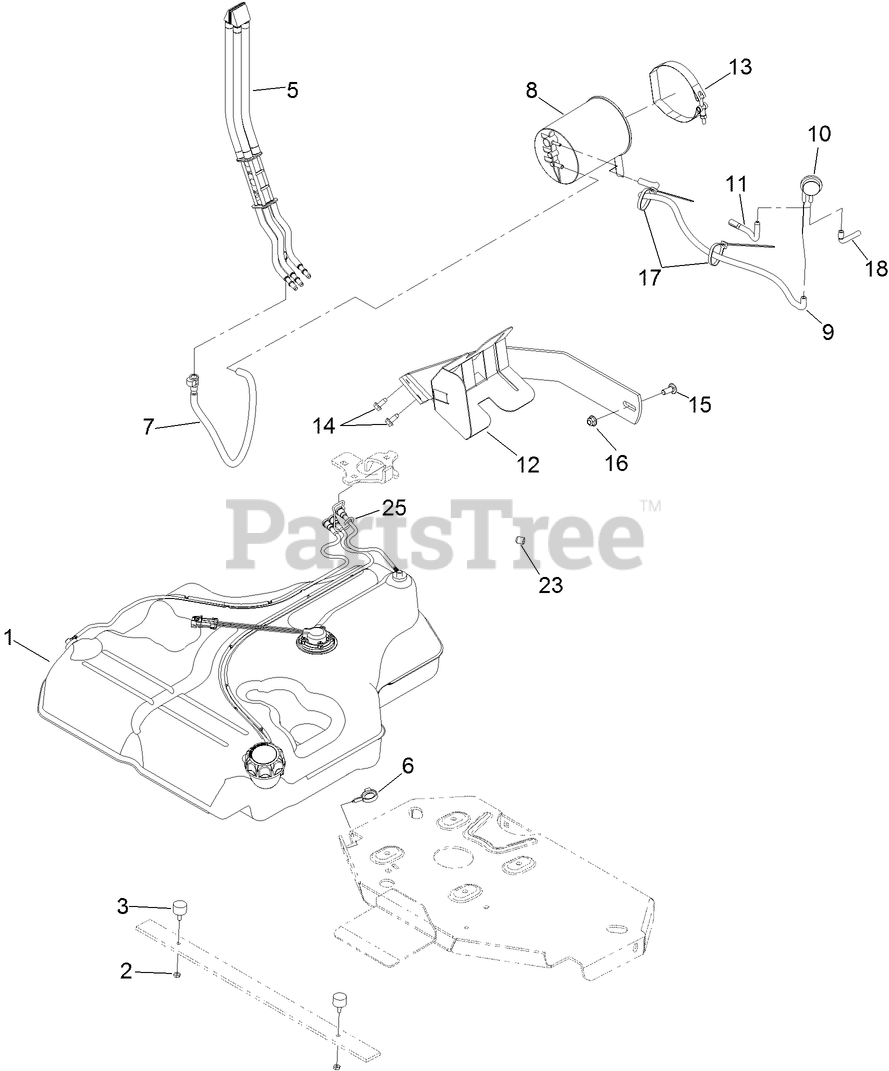

FUEL TANK MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 116-3979

FUEL TANK ASM
(Superseded to 135-0643)

$775.99

$

Usually ships in 3-6 days

0

2

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 109-9491

FUEL MANIFOLD VENT ASM
(Superseded to 135-7569)

$117.99

$

Usually ships in 3-6 days

0

6

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

7

Toro 116-1702

VENT HOSE ASM

$34.99

$

Usually ships in 3-6 days

0

8

Toro 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

9

Toro 116-2231

HOSE-VENT, FORMED

$35.99

$

Usually ships in 3-6 days

0

10

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

11

Toro 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

12

Toro 116-1433-03

MOUNT-CANISTER

$213.99

$

Usually ships in 3-6 days

0

13

Toro 116-2228

CLAMP-T-BOLT

$46.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

18

Toro 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

23

Toro 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

25

Toro 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0
