78922 (6000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) FUEL SYSTEM ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

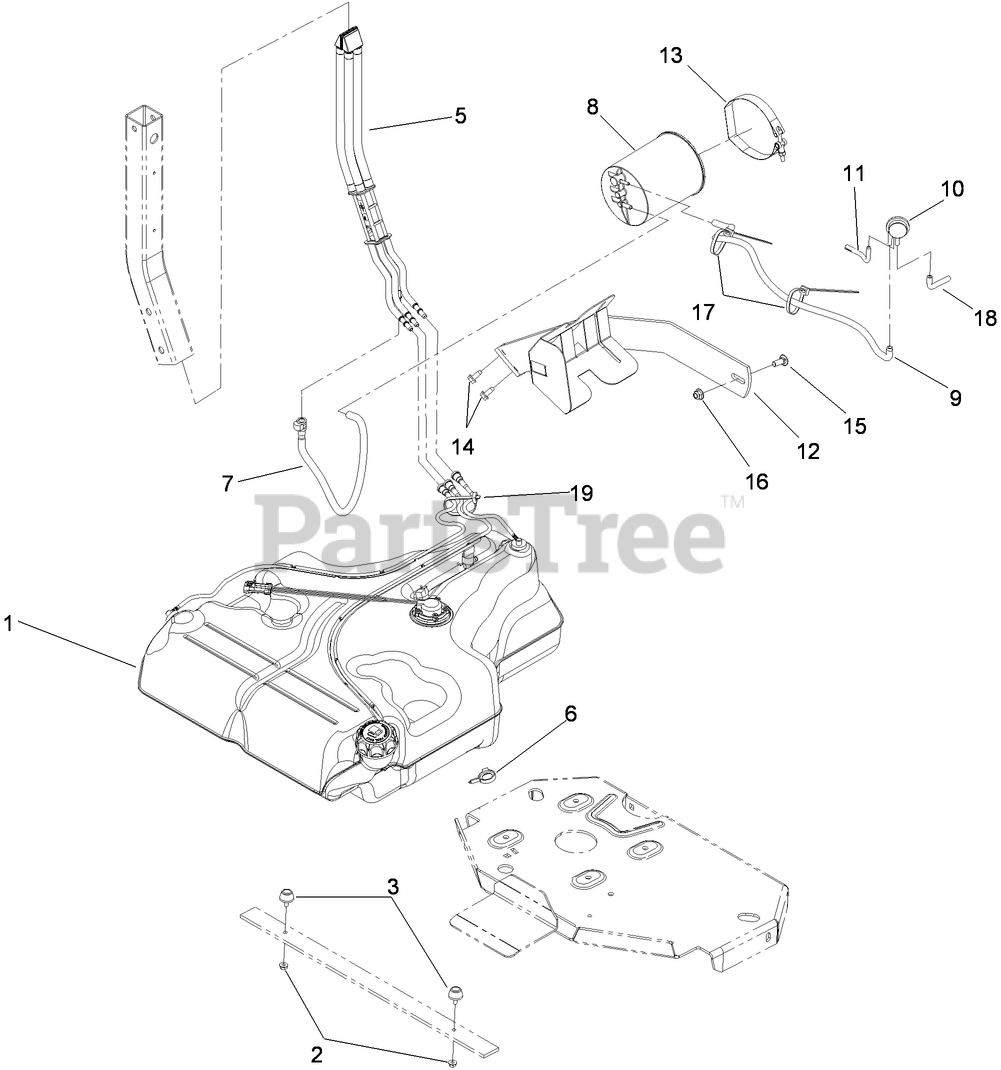

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 116-2131

FUEL TANK ASM
(Superseded to 135-0643)

$702.99

$

Usually ships in 3-6 days

0

2

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

3

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

5

Toro 109-9491

FUEL MANIFOLD VENT ASM
(Superseded to 135-7569)

$117.99

$

Usually ships in 3-6 days

0

6

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

7

Toro 116-1702

VENT HOSE ASM

$34.99

$

Usually ships in 3-6 days

0

8

Toro 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

9

Toro 116-2231

HOSE-VENT, FORMED

$35.99

$

Usually ships in 3-6 days

0

10

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

11

Toro 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

12

Toro 116-1433-03

MOUNT-CANISTER

$213.99

$

Usually ships in 3-6 days

0

13

Toro 116-2228

CLAMP-T-BOLT

$46.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

15

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

18

Toro 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

19

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
