789024 - Gravely Manual Lift for PM Gear MANUAL LIFT KIT Parts Diagram

Manual Lift for PM Gear

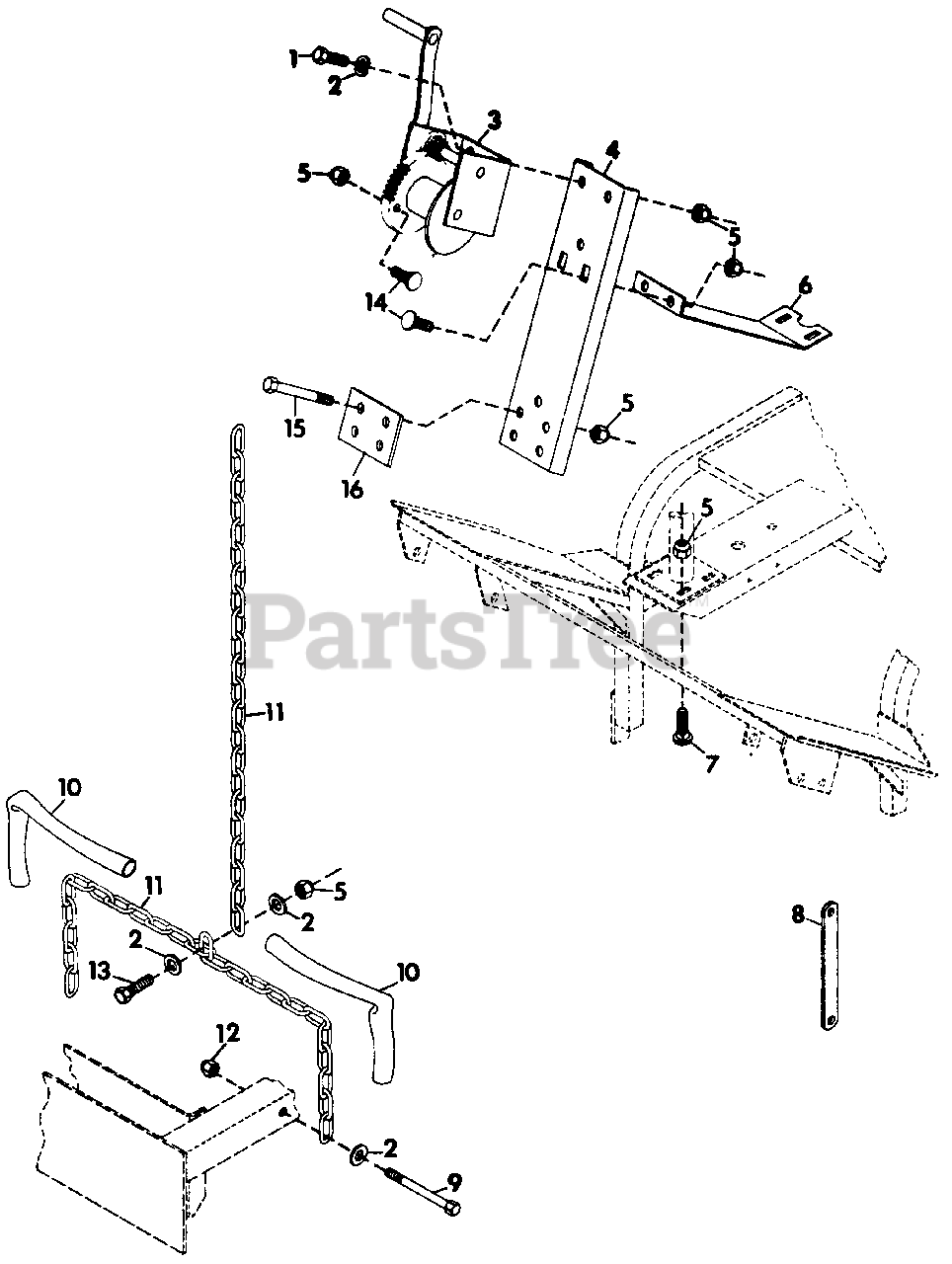

MANUAL LIFT KIT Parts Diagram

  • Title

1

Gravely 180122

BOLT, HEX 3/8-16X1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 038759

WINCH
(Superseded to 08929153)

$

$

Not available

4

Gravely 038765

CHANNEL, WINCH LIFT
(Superseded to 08929400)

$

$

Not available

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 038764

BRACE, WINCH CHANNEL
(Superseded to 08929300)

$

$

Not available

7

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 035659

BAR, DECK LIFT
(Superseded to 08923200)

$

$

Not available

9

Gravely 181623

BOLT, HEX 5/16-24X2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 038768

TUBING
(Superseded to 07524900)

$

$

Not available

11

Gravely 038767

CHAIN, MOWER LIFT
(Superseded to 09031700)

$

$

Not available

12

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 180123

BOLT, HEX 3/8-16X1.125

$

$

Not available

14

Gravely 126390

BOLT, 3/8-16X.875 RD HD SQ NK
(Superseded to 06215800)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 180134

BOLT, HEX 3/8-16X2.5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 038766

PLATE, CHANNEL CLAMP
(Superseded to 08929500)

$

$

Not available
