789023 - Gravely Hydraulic Lift for PM Gear HYDRAULIC LIFT KIT Parts Diagram

Hydraulic Lift for PM Gear

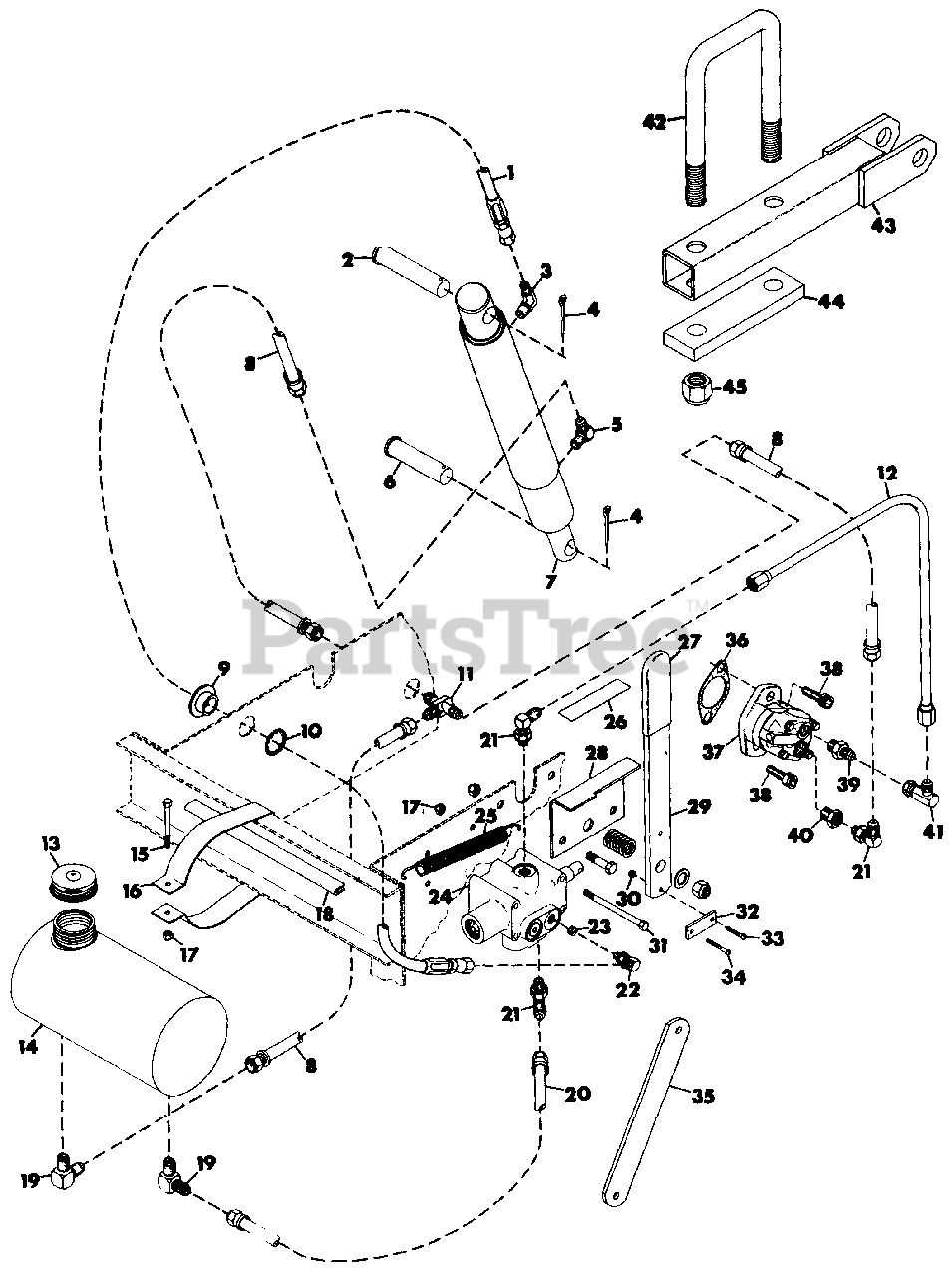

HYDRAULIC LIFT KIT Parts Diagram

  • Title

1

Gravely 035549

HOSE, HYDRAULIC
(Superseded to 08921200)

$

$

Not available

2

Gravely 035525

PIN, CLEVIS
(Superseded to 06810600)

$

$

Not available

3

Gravely 018832

ADAPTOR
(Superseded to 08901300)

$

$

Not available

4

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 035645

ADAPTOR, HYDRAULIC
(Superseded to 07021900)

$

$

Not available

6

Gravely 035524

PIN, CLEVIS
(Superseded to 06810400)

$

$

Not available

7

Gravely 035453

CYLINDER, HYDRAULIC
(Superseded to 08916251)

$

$

Not available

8

Gravely 038210

HOSE, HYDRAULIC
(Superseded to 08927700)

$

$

Not available

9

Gravely 010174

BUSHING, NYLON .76X1X.6 FLG.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 020273

RING, RETAINING INTERNAL TOOTH
(Superseded to 05717300)

$

$

Not available

11

Gravely 021799

ADAPTOR, TEE
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 035552

LINE, HYDRAULIC PUMP TO VALVE
(Superseded to 08921300)

$

$

Not available

13

Gravely 035468

CAP, HYDRAULIC TANK
(Superseded to 08917100)

$

$

Not available

14

Gravely 035467

TANK, HYDRAULIC
(Superseded to 08917051)

$

$

Not available

15

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

16

Gravely 035470

STRAP, HYDRAULIC TANK
(Superseded to 08917351)

$

$

Not available

17

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 035513

MOULDING, TANK
(Superseded to 08919600)

$

$

Not available

19

Gravely 035514

ADAPTOR
(Superseded to 07019100)

$

$

Not available

20

Gravely 035637

ASSEMBLY, HOSE VALVE TO TANK
(Superseded to 08922800)

$

$

Not available

21

Gravely 018828

ADAPTOR
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 018826

ADAPTOR
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 023485

PLATE, FLOW RESTRICTION
(Superseded to 08904100)

$

$

Not available

24

Gravely 035511

VALVE, CONTROL
(Superseded to 20624900)

$

$

Not available

25

Gravely 015255

SPRING, EXTENSION 5.5X.5X20 RATE
(Superseded to 08327500)

$

$

Not available

26

Gravely 035654

DECAL, HYDRAULIC LIFT
(Superseded to 05209500)

$

$

Not available

27

Gravely 027158

GRIP, HANDLE
(Superseded to 07522100)

$

$

Not available

28

Gravely 035606

BRACKET, LIFT
(Superseded to 08921500)

$

$

Not available

29

Gravely 035509

LEVER, LIFT
(Superseded to 08919300)

$

$

Not available

30

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180050

BOLT, HEX 1/4-20X2.75
(Superseded to 05969900)

$

$

Not available

32

Gravely 035512

STRAP, VALVE
(Superseded to 08919500)

$

$

Not available

33

Gravely 120910

SCREW, MACHINE 10-24X.75
(Superseded to 06112500)

$

$

Not available

34

Gravely 132848

SCREW, MACHINE 10-24X1.00
(Superseded to 06112700)

$

$

Not available

35

Gravely 035659

BAR, DECK LIFT
(Superseded to 08923200)

$

$

Not available

36

Gravely 018422

GASKET, COVER
(Superseded to 08702700)

$15.99

$

In Stock, only 1 left!

0

37

Gravely 018813

PUMP, HYDRAULIC
(Superseded to 08900900)

$

$

Not available

38

Gravely 426370

SCREW, CAP 3/8-16 HEX SOCKET HEAD
(Superseded to 05933300)

$

$

Not available

39

Gravely 023206

ADAPTOR
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

40

Gravely 035510

BUSHING
(Superseded to 07015000)

$

$

Not available

41

Gravely 018818

ADAPTOR
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

42

Gravely 035516

U-BOLT
(Superseded to 09027700)

$

$

Not available

43

Gravely 038758

ARM, LIFT
(Superseded to 08929000)

$

$

Not available

44

Gravely 035632

PLATE, AXLE
(Superseded to 08922600)

$

$

Not available

45

Gravely 272739

NUT, LOCK 5/8-18
(Superseded to 06528000)

$

$

Not available
