789013 - Gravely High Back Seat for PM400 HIGH BACK SEAT KIT Parts Diagram

High Back Seat for PM400

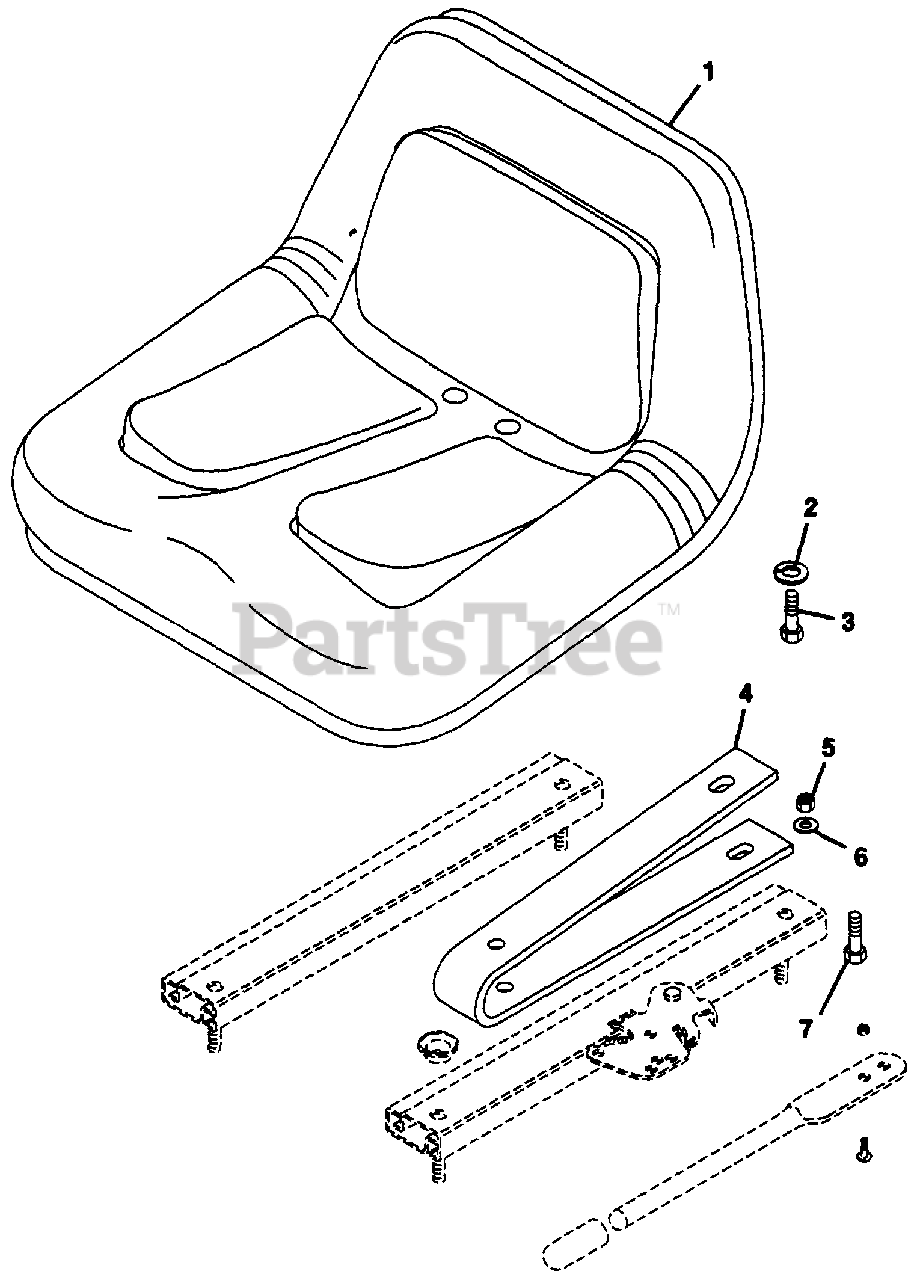

HIGH BACK SEAT KIT Parts Diagram

  • Title
1

Gravely 048918

Seat, High Back
(Superseded to 59100200)

$

$

Not available

2

Gravely 120214

Washer, Lock 5/16
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 047528

Spring, Seat
(Superseded to 03486851)

$

$

Not available

5

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0
